Development of WC-Fe3Al Composites by Spark Plasma Sintering Process

Luis Antonio C. Ybarra; Afonso Chimanski; Sergio Gama; Ricardo A.G. da Silva; Izabel Fernanda Machado; Humberto Naoyuki Yoshimura

doi:10.4028/www.scientific.net/MSF.881.307

Paper Titles

Morphological Analysis of the Amorphous Carbon Embedded Nickel-Silica Composite Submitted at Gradual Oxidation
p.283

Influence of Polyester Chain Type in the Morphology of Silica-Carbon Composites Obtained by the Polymeric Precursor Method
p.289

Use of Composite SiO₂ (62-68)-MgO + CaO (29-39) in Ceramic Protection Mass Injection Machines in the Iron Notch and Liquid Slag Hole in Blast Furnaces
p.295

Behavior of Fiberglass Polymer Composites under Ballistic Impact and Quasi-Static Punch Shear Tests
p.300

Development of WC-Fe₃Al Composites by Spark Plasma Sintering Process
p.307

Al₂O₃-YAG Biphasic Composite Phase Determination Using Rietveld Method Measurements
p.313

Study of Stability of Al₂O₃-Y₂O₃-ZrO₂ Composite Ceramics in Crude Petroleum Environment for Inert Coating Applications in Petroleum Industry
p.318

MgAl₂O₄-ZrO₂(Y₂O₃) Ceramic Composite: Sintering and Characterization
p.323

Study of the Substitution of Natural Fine Aggregates by Stone Dust in the Concrete of the Portland Cement
p.331

HomeMaterials Science ForumMaterials Science Forum Vol. 881Development of WC-Fe3Al Composites by Spark Plasma...

Development of WC-Fe₃Al Composites by Spark Plasma Sintering Process

Abstract:

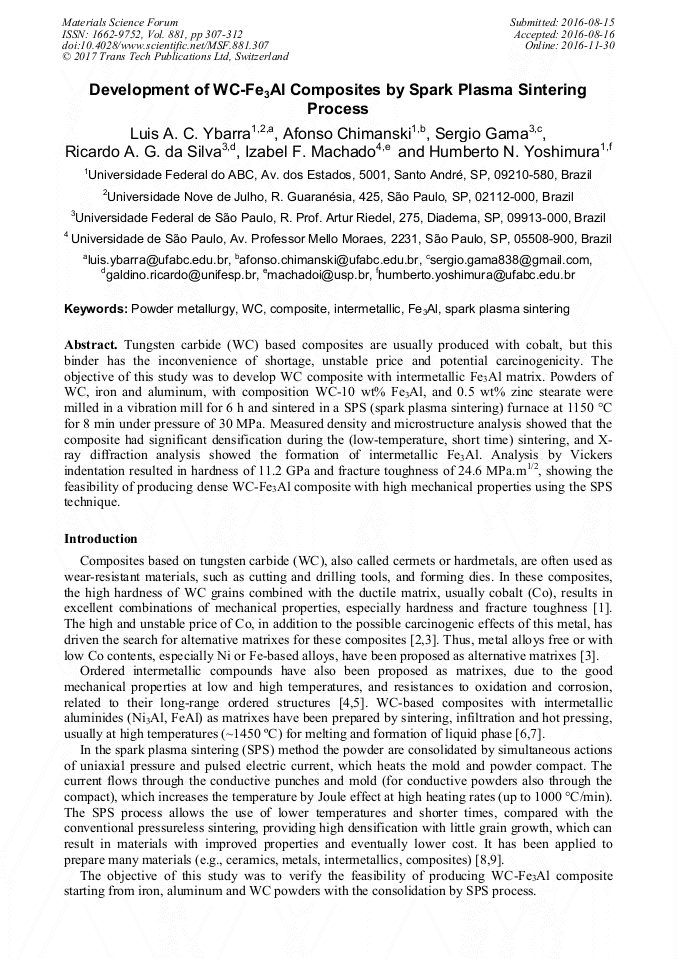

Tungsten carbide (WC) based composites are usually produced with cobalt, but this binder has the inconvenience of shortage, unstable price and potential carcinogenicity. The objective of this study was to develop WC composite with intermetallic Fe₃Al matrix. Powders of WC, iron and aluminum, with composition WC-10 wt% Fe₃Al, and 0.5 wt% zinc stearate were milled in a vibration mill for 6 h and sintered in a SPS (spark plasma sintering) furnace at 1150 °C for 8 min under pressure of 30 MPa. Measured density and microstructure analysis showed that the composite had significant densification during the (low-temperature, short time) sintering, and X-ray diffraction analysis showed the formation of intermetallic Fe₃Al. Analysis by Vickers indentation resulted in hardness of 11.2 GPa and fracture toughness of 24.6 MPa.m^1/2, showing the feasibility of producing dense WC-Fe₃Al composite with high mechanical properties using the SPS technique.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volume 881)

Pages:

307-312

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.881.307

Citation:

Cite this paper

Online since:

November 2016

Authors:

Luis Antonio C. Ybarra, Afonso Chimanski, Sergio Gama, Ricardo A.G. da Silva, Izabel Fernanda Machado, Humberto Naoyuki Yoshimura

Keywords:

Composite, Fe₃Al, Intermetallic, Powder metallurgy, Spark Plasma Sintering, WC

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J.B.J. Hegeman, J. Th.M. Hosson, G. With: Wear 248 (2001), p.187.

Google Scholar

[2] K. Brookes: Met. Powder Rep. Vol. 66 (2011), p.36.

Google Scholar

[3] C. Hanyaloglu, B. Aksakal, J.D. Bolton: Mater. Charact. Vol. 47 (2001), p.315.

Google Scholar

[4] C.T. Liu, J.O. Stigler, Ordered intermetallics, in: ASM Handbook, Properties and Selection of Nonferrous Alloys and Special Purpose Materials, ASM Int. Ohio, (1990).

DOI: 10.31399/asm.hb.v02.9781627081627

Google Scholar

[5] H. Goldenstein, Y.N. Silva, H.N. Yoshimura: Intermetal. Vol. 12 (2004), p.963.

Google Scholar

[6] R. Subramanian, J.H. Schneibel: Intermetal. Vol. 5 (1997), p.401.

Google Scholar

[7] J. Long, Z. Zhang, T. Xu, B. Lu: Int. J. Refract. Met. Hard Mater. Vol. 40 (2012), p.2.

Google Scholar

[8] Z.A. Munir, U. Anselmi-Tamburini, M. Ohyanag: J. Mater. Sci. Vol. 41 (2006), p.763.

Google Scholar

[9] R. Orrù, R. Licheri, A.M. Locci, A. Cincotti, G. Cao: Mater. Sci. Eng. R Vol. 63 (2009), p.127.

Google Scholar

[10] K. Niihara, R. Morena, D.P.H. Hasselman: J. Mater. Sci. Lett. Vol. 1 (1982), p.13.

Google Scholar

[11] M.H. Enayati, M. Salehi: J. Mater. Sci. Vol. 40 (2005), p.3933.

Google Scholar

[12] S. Huang, O. Van Der Biest, J. Vleugels: Int. J. Refract. Met. Hard Mater. Vol. 27 (2009), p.1019.

Google Scholar

[13] D. Connétable, P. Maugis: Intermetal. Vol. 16 (2008), p.345.

Google Scholar

[14] Information on http: /www2. sandvik. com.

Google Scholar
