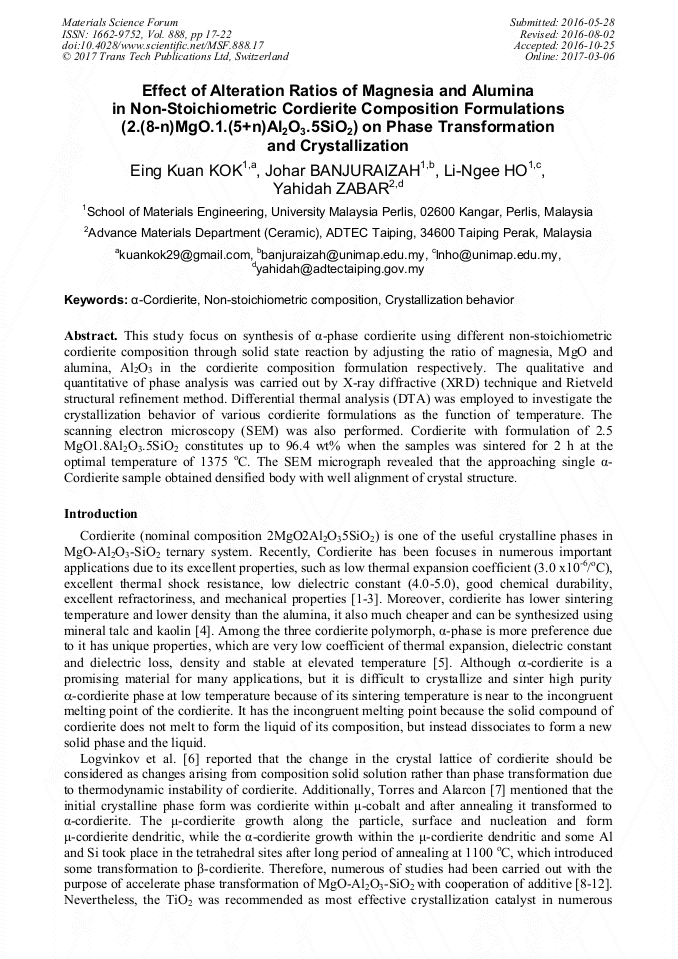

Effect of Alteration Ratios of Magnesia and Alumina in Non-Stoichiometric Cordierite Composition Formulations (2.(8-n)MgO.1.(5+n)Al₂O₃.5SiO₂) on Phase Transformation and Crystallization

Abstract:

This study focus on synthesis of α-phase cordierite using different non-stoichiometric cordierite composition through solid state reaction by adjusting the ratio of magnesia, MgO and alumina, Al₂O₃ in the cordierite composition formulation respectively. The qualitative and quantitative of phase analysis was carried out by X-ray diffractive (XRD) technique and Rietveld structural refinement method. Differential thermal analysis (DTA) was employed to investigate the crystallization behavior of various cordierite formulations as the function of temperature. The scanning electron microscopy (SEM) was also performed. Cordierite with formulation of 2.5MgO.1.8Al₂O₃.5SiO₂ constitutes up to 96.4 wt% when the samples was sintered for 2 hours at the optimal temperature of 1375 °C. The SEM micrograph revealed that the approaching single α-Cordierite sample obtained densified body with well alignment of crystal structure.

• Periodical: Materials Science Forum (Volume 888)
• Pages: 17-22
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.888.17
• Online since: March 2017
• Authors: Eing Kuan Kok*, Banjuraizah Johar, Li Ngee Ho, Zabar Yahidah
• Keywords: Crystallization Behavior, Non-Stoichiometric Composition, α-Cordierite

References

[1] X. Guo, K. Nakanishi, K. Kanamori, Y. Zhu, H. Yang, Preparation of macroporous cordierite monoliths via the sol–gel process accompanied by phase separation, J. Eur. Ceram. Soc. 34(3) (2014) 817-823.

DOI: 10.1016/j.jeurceramsoc.2013.08.016

[2] P. Orosco, M. del, C. Ruiz, J. González, Synthesis of cordierite by dolomite and kaolinitic clay chlorination. Study of the phase transformations and reaction mechanism, Powder Technol. 267 (2014) 111-118.

DOI: 10.1016/j.powtec.2014.07.009

[3] Y. Dong, X. Liu, Q. Ma, G. Meng, Preparation of cordierite-based porous ceramic micro-filtration membranes using waste fly ash as the main raw materials, J. Membrane Sci. 285 (2006) 173-181.

DOI: 10.1016/j.memsci.2006.08.032

[4] J. Banjuraizah, H. Mohamad, Z.A. Ahmad, Crystal structure of single phase and low sintering temperature of α-cordierite synthesized from talc and kaolin, J. Alloy Compd. 482 (2009) 429-436.

DOI: 10.1016/j.jallcom.2009.04.044

[5] J. Banjuraizah, H. Mohamad, Z.A. Ahmad, Effect of impurities content from minerals on phase transformation, densification and crystallization of alpha-cordierite glass-ceramic, J. Alloy Compd. 509 (2011) 7645-7651.

DOI: 10.1016/j.jallcom.2011.04.129

[6] S.M. Logvinkov, G.D. Semchenko, D.A. Kobyzeva, V.I. Babushkin, Thermodynamics of phase relations in the subsolidus of the MgO – Al2O3 – SiO2 system, Refract. Ind. Ceram. 42(11-12) (2001) 434-439.

DOI: 10.1023/a:1015087606871

[7] F.J. Torres, J. Alarcón, Phase evolution by thermal treatment of equimolar cobalt–magnesium cordierite glass powders, J. Eur. Ceram. Soc. 24(4) (2004) 681-691.

DOI: 10.1016/s0955-2219(03)00265-6

[8] Z. Yuea, J. Zhoua, Z. Maa, J. Baoa, Z. Guia, L. Lia, Crystallization and dielectric properties of cordierite gel-derived glasses containing B2O3 and P2O5, Ferroelectrics, 262(1) (2001) 31-36.

[9] X. Hao, Z. Luo, X. Hu, J. Song, Y. Tang and A. Lu, Effect of replacement of B2O3 by ZnO on preparation and properties of transparent cordierite-based glass-ceramics, J. Non-Cryst. Solids 432 (2016) 265-270.

DOI: 10.1016/j.jnoncrysol.2015.10.017

[10] L. Barbieri, C. Leonelli, T. Manfredini, R. Bertoncello, Solubility, reactivity and nucleation effect of Cr2O3 in the CaO-MgO-Al2O3-SiO2 glassy system, J. Mater. Sci. 29(23) (1994) 6273-6280.

DOI: 10.1007/bf00354571

[11] C. Leonelli, T. Manfredini, M. Paganelli, P. Pozzi, G.C. Pellacani, Crystallization of some anorthite-diopside glass precursors, J. Mater. Sci. 26(18) (1991) 5041-5046.

DOI: 10.1007/bf00549889

[12] H.S. Kim, R.D. Rawlings, P.S. Rogers, Sintering and crystallization phenomena in Silceram glass, J. Mater. Sci. 24(3) (1989) 1025-1037.

DOI: 10.1007/bf01148794

[13] M. Rezvani, B.E. Yekta, V.K. Marghussian, Utilization of DTA in determination of crystallization mechanism in SiO2–Al2O3–CaO–MgO(R2O) glasses in presence of various nuclei, J. Eur. Ceram. Soc. 25 (2005) 1525-1530.

DOI: 10.1016/j.jeurceramsoc.2004.05.010

[14] J. Yang, S.G. Zhang, B. Liu, D.A. Pan, C. L. Wu, A.A. Volinsky, Effect of TiO2 on crystallization, microstructure and mechanical properties of glass ceramic, J. Iron Steel Res. Int. 22(12) (2015) 1113-1117.

DOI: 10.1016/s1006-706x(15)30120-5

[15] U.M. Fathia, A. Johnson, The effect of TiO2 concentration on properties of apatite-mullite glass-ceramics for dentals use, Dent. Mater. 32 (2016) 311-322.

DOI: 10.1016/j.dental.2015.11.012

[16] K. Maeda, Y. Sera, A. Yasumori, Effect of molybdenum and titanium oxides on mechanical and thermal properties of cordierite–enstatite glass-ceramics, J. Non-Cryst. Solids 434 (2016) 13-22.

DOI: 10.1016/j.jnoncrysol.2015.12.001

[17] C. Liu, L. Liu, K. Tan, L. Zhang, K. Tang, X. Shi, Fabrication and characterization of porous cordierite ceramics prepared from ferrochromium slag, Ceram. Int. 42 (2016) 734–742.

DOI: 10.1016/j.ceramint.2015.08.174

[18] M. Brown, P. Gallagher, Handbook of thermal analysis and calorimetry, 1st Edition, South Africa: ELSEVIER, (2003).

[19] J. Banjuraizah, H. Mohamad, Z.A. Ahmad, Synthesis and characterization of xMgO–1. 5Al2O3–5SiO2 (x = 2. 6–3. 0) system using mainly talc and kaolin through the glass route, Mater. Chem. Phys. 129 (2011) 910-918.

DOI: 10.1016/j.matchemphys.2011.05.026
