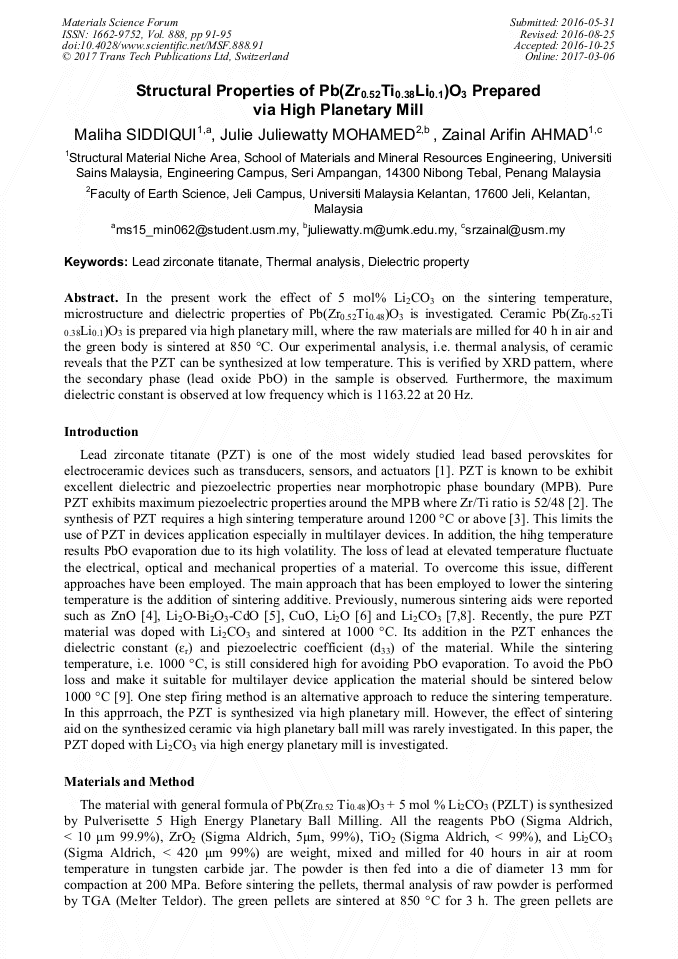

Structural Properties of Pb(Zr_0.52Ti_0.38Li_0.1)O₃ Prepared via High Planetary Mill

Abstract:

In the present work lead based perovskite ceramic Pb (Zr₀.₅₂Ti _0.38Li_0.1)O₃ was prepared via high planetary mill. The green body was sintered at 850 °C. The effect of 0.1 wt % Li⁺ addition on the sintering temperature, microstructure and on dielectric properties of Pb (Zr_0.52Ti_0.48)O₃ were investigated. Thermal analysis of ceramic reveals that the PZT can be synthesized at low temperature. XRD diffractrogram shows the presence of secondary phase (lead oxide PbO) in the sample. The maximum dielectric constant was observed at low frequency which was 1163.22 at 20 Hz.

• Periodical: Materials Science Forum (Volume 888)
• Pages: 91-95
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.888.91
• Online since: March 2017
• Authors: Maliha Siddiqui, Julie Juliewatty Mohamed, Zainal Arifin Ahmad*
• Keywords: Dielectric Properties, Lead Zirconate Titanate, Thermal Analysis

References

[1] N. Setter, R. Waser, Electroceramic materials, Acta Mater. 48(1) (2000) 151-178.

DOI: 10.1016/s1359-6454(99)00293-1

[2] B. Jaffe, W.R. Cook, H. Jaffe, Piezoelectric ceramics, Academic Press, New York, (1971).

[3] Y. Matsuo, H. Sasaki, Formation of lead zirconate‐lead titanate solid solutions, J. Am. Ceram. Soc. 48(6) (1965) 289-291.

DOI: 10.1111/j.1151-2916.1965.tb14743.x

[4] S. Lee, J. Yoo, H. Song, S. Lee, K. Choi, Effect of ZnO on low temperature sintering of Pb(Mn1/3Nb2/3)O3-Pb(Ni1/3Nb2/3)O3-Pb(Zr1/2Ti1/2)O3 ceramics, Sixteenth IEEE International Symposium on applications of ferroelectrics. (2007) 618-621.

DOI: 10.1007/s10832-006-8567-3

[5] K. Wang, P. Lu, D. Shen, W. Zue, N. Zhao, The mechanism of low temperature sintering PZT ceramics with additives of Li2O-Bi2O3-CdO, Eighth IEEE International Symposium on applications of ferroelectrics. (1992) 585-587.

DOI: 10.1109/isaf.1992.300731

[6] B. Jin, D. Lee, I. Kim, J. Kwon, J. Lee, J. Song, S. Jeong, The additives for improving piezoelectric and ferroelectric properties of 0. 2Pb(Mg1/3Nb2/3)O3–0. 8[PbZrO3–PbTiO3] ceramics, Ceram. Int. 30(7) (2004) 1449-1451.

DOI: 10.1016/j.ceramint.2003.12.070

[7] Y.D. Hou, L.M. Chang, M.K. Zhu, X.M. Song, H. Yan, Effect of Li2CO3 addition on the dielectric and piezoelectric responses in the low-temperature sintered 0. 5PZN–0. 5PZT systems, J. Appl. Phys. 102(8) (2007) 084507.

DOI: 10.1063/1.2800264

[8] L. Vuong, P. Gio, Effect of Li2CO3 addition on the sintering behavior and physical properties of PZT-PZN-PMnN ceramics, IJMSA. 2(3) (2013) 89-93.

DOI: 10.11648/j.ijmsa.20130203.13

[9] M.J.A. Mijarsh, M.A. M Johari, Z.A. Ahmad, Synthesis of geopolymer from large amounts of treated palm oil fuel ash: application of the Taguchi method in investigating the main parameters affecting compressive strength, Constr. Build. Mater. 52 (2014).

DOI: 10.1016/j.conbuildmat.2013.11.039

[10] N.F.K. Bahanurddin, M.H. Jumali, J.J. Mohamed, Z.A. Ahmad, Effects of compaction pressure on lead zirconate titanate piezoelectric and dielectric properties prepared via high planetary mill, J. Ceram. Process. Res. 16 (2015) 258-261.

[11] Y. Zeng, F. Yao, G. Zhang, S. Liu, S. Jiang, Y. Yu, J. He, L. Zhang, J. Yi, Effects of Bi2O3–Li2CO3 additions on dielectric and pyroelectric properties of Mn doped Pb(Zr0. 9Ti0. 1)O3 thick films, Ceram. Int. 39(4) (2013) 3709-3714.

DOI: 10.1016/j.ceramint.2012.10.204

[12] M. Prabu, I.S. Banu, S. Gobalakrishnan, M. Chavali, Electrical and ferroelectric properties of undoped and La-doped PZT (52/48) electroceramics synthesized by sol–gel method, J. Alloys Compd. 551 (2013) 200-207.

DOI: 10.1016/j.jallcom.2012.09.095
