Mechanical and Microstructural Properties of 2618 Al-Alloy Processed by SLM Remelting Strategy

Article Preview

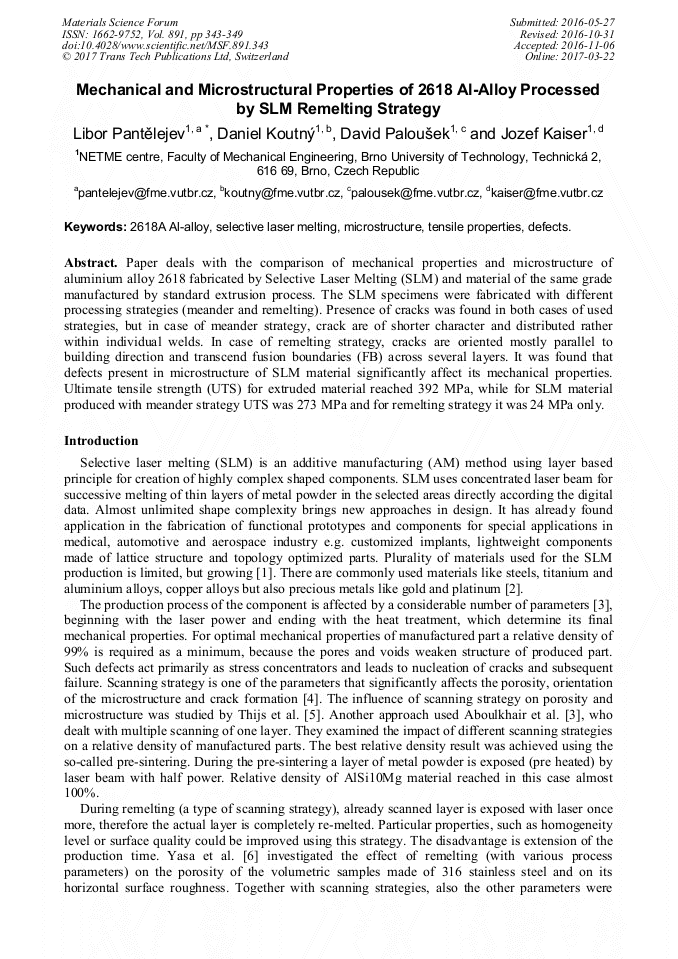

Abstract:

Paper deals with the comparison of mechanical properties and microstructure of aluminium alloy 2618 fabricated by Selective Laser Melting (SLM) and material of the same grade manufactured by standard extrusion process. The SLM specimens were fabricated with different processing strategies (meander and remelting). Presence of cracks was found in both cases of used strategies, but in case of meander strategy, crack are of shorter character and distributed rather within individual welds. In case of remelting strategy, cracks are oriented mostly parallel to building direction and transcend fusion boundaries (FB) across several layers. It was found that defects present in microstructure of SLM material significantly affect its mechanical properties. Ultimate tensile strength (UTS) for extruded material reached 392 MPa, while for SLM material produced with meander strategy UTS was 273 MPa and for remelting strategy it was 24 MPa only.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

343-349

Citation:

Online since:

March 2017

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2017 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] D. Manfredi, F. Calignano, M. Krishnan, R. Canali, E.P. Ambrosio, S. Biamino, et al., Additive Manufacturing of Al Alloys and Aluminium Matrix Composites (AMCs), Light Metal Alloys Applications (2014) 3–34.

DOI: 10.5772/58534

Google Scholar

[2] D. Zito, A. Carlotto, A. Loggi, P. Sbornicchia, D. Bruttomesso, S.A. Progold, Definition and solidity idity of gold and platinum jewels produced using Selective Laser Melting SLM TM technology, in: The Santa Fe Symposium on Jewelry Manufacturing Technology, 2014, 439-470.

Google Scholar

[3] N.T. Aboulkhair, N.M. Everitt, I. Ashcroft, C. Tuck, Reducing porosity in AlSi10Mg parts processed by selective laser melting, Additive Manufacturing 1-4 (2014) 77-86.

DOI: 10.1016/j.addma.2014.08.001

Google Scholar

[4] L.N. Carter, C. Martin, P.J. Withers, M.M. Attallah, The influence of the laser scan strategy on grain structure and cracking behaviour in SLM powder-bed fabricated nickel superalloy, Journal of Alloys and Compounds 615 (2014) 338-347.

DOI: 10.1016/j.jallcom.2014.06.172

Google Scholar

[5] L. Thijs, K. Kempen, J. -P. Kruth, J. Van Humbeeck, Fine-structured aluminium products with controllable texture by selective laser melting of pre-alloyed AlSi10Mg powder, Acta Materialia 61 (2013) 1809-1819.

DOI: 10.1016/j.actamat.2012.11.052

Google Scholar

[6] E. Yasa, J. Deckers, J.P. Kruth, The investigation of the influence of laser remelting on density, surface quality and microstructure of selective laser melting parts, Rapid Prototyping Journal 17 (2011) 312-327.

DOI: 10.1108/13552541111156450

Google Scholar

[7] E. Yasa, J.P. Kruth, Application of Laser Remelting on Selective Laser Melting Parts, Advances in Production Engineering & Management 6 (2011) 259-270.

Google Scholar

[8] N. Read, W. Wang, K. Essa, M.M. Attallah, Selective laser melting of AlSi10Mg alloy: Process optimisation and mechanical properties development, Materials & Design 65 (2015) 417-424.

DOI: 10.1016/j.matdes.2014.09.044

Google Scholar

[9] E. Brandl, U. Heckenberger, V. Holzinger, D. Buchbinder, Additive manufactured AlSi10Mg samples using Selective Laser Melting (SLM): Microstructure, high cycle fatigue, and fracture behavior, Materials & Design 34 (2012) 159-169.

DOI: 10.1016/j.matdes.2011.07.067

Google Scholar

[10] W. Wang, Microstructure, Mechanical Properties and the Influence of Heat Treatment (T6) of AlSi10Mg Alloy Fabricated by Selective Laser Melting, in: 2014 TMS Annual Meeting & Exhibition, (2014).

Google Scholar

[11] M. Krishnan, E. Atzeni, R. Canali, D. Manfredi, F. Calignano, E.P. Ambrosio, et al., On the effect of process parameters on properties of AlSi10Mg parts produced by DMLS, Rapid Prototyping Journal. (2014) manuscript accepted.

DOI: 10.1108/rpj-03-2013-0028

Google Scholar

[12] B. Ahuja, M. Karg, M. Schmidt, Laser beam melting of high strength aluminium alloys EN AW-6061 and EN AW-6082, in: 5th International Conference on Additive Technologies - iCAT2014, 2014: p.153–158.

Google Scholar

[13] B. Ahuja, M. Karg, K.Y. Nagulin, M. Schmidt, Fabrication and Characterization of High Strength Al-Cu Alloys Processed Using Laser Beam Melting in Metal Powder Bed, Physics Procedia. 56 (2014) 135–146.

DOI: 10.1016/j.phpro.2014.08.156

Google Scholar

[14] M. Karg, B. Ahuja, A. Schaub, J. Schmidt, M. Sachs, A. Mahr, et al., Effect of process conditions on mechanical behavior of aluminum wrought alloy EN AW-2618 additively manufactured by Laser Beam Melting in powder bed, in: Lasers inManufacturing Conference 2015, Munich, Germany, (2015).

DOI: 10.3390/mi8010023

Google Scholar

[15] O. Koukal, D. Koutny, D. Palousek, R. Vrana, T. Zikmund, L. Pantelejev, Research about the Influence of Process Parameters of Selective Laser Melting on Material EN AW 2618, in: Proceedings of Euro PM 2015, EPMA, Reims, France, 2015, 1–6.

DOI: 10.3390/ma11020298

Google Scholar

[16] D. Koutny, D. Palousek, O. Koukal, T. Zikmund, L. Pantelejev, Processing of High Strength Al-Cu alloy Using 400W Selective Laser Melting – Initial Study, in: Lasers in Manufacturing Conference 2015, Munich, Germany, (2015).

DOI: 10.17973/mmsj.2017_02_2016184

Google Scholar

[17] T. Furumoto, A. Koizumi, M.R. Alkahari, R. Anayama, A. Hosokawa, R. Tanaka, T. Ueda, Permeability and strength of a porous metal structure fabricated by additive manufacturing, Journal of Materials Processing Technology 219 (2015) 10–16.

DOI: 10.1016/j.jmatprotec.2014.11.043

Google Scholar

[18] E.O. Olakanmi, R.F. Cochrane, K.W. Dalgarno, A review on selective laser sintering/melting (SLS/SLM) of aluminium alloy powders: Processing, microstructure, and properties, Progress in Materials Science 74 (2015) 401–477.

DOI: 10.1016/j.pmatsci.2015.03.002

Google Scholar
