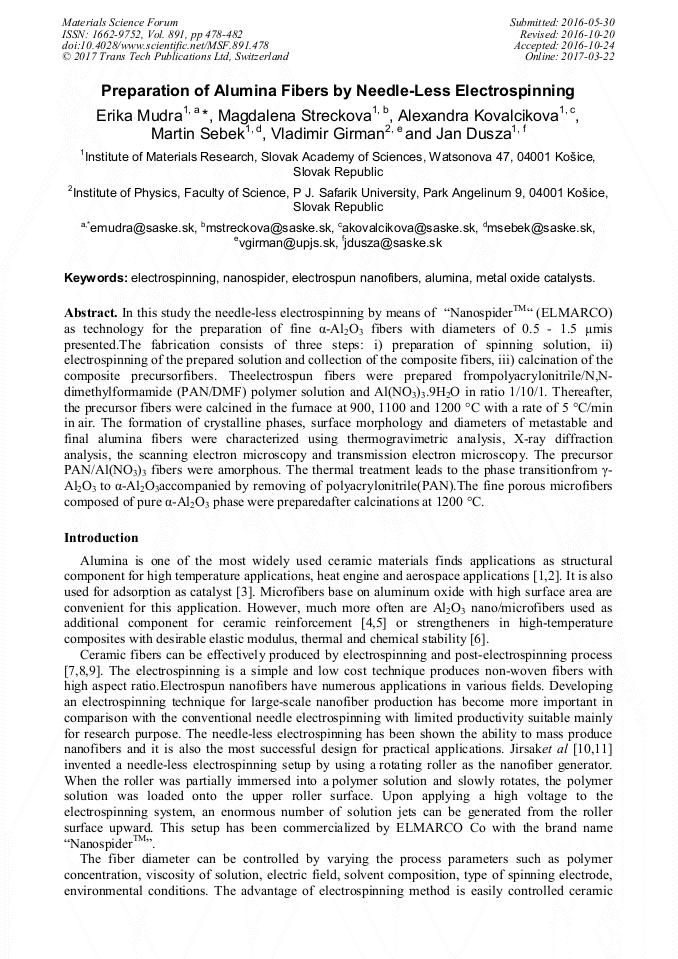

Preparation of Alumina Fibers by Needle-Less Electrospinning

Abstract:

In this study the needle-less electrospinning by means of “Nanospider^TM“ (ELMARCO) as technology for the preparation of fine α-Al₂O₃ fibers with diameters of 0.5 - 1.5 µm is presented. The fabrication consists of three steps: i) preparation of spinning solution, ii) electrospinning of the prepared solution and collection of the composite fibers, iii) calcination of the composite precursor fibers. The electrospun fibers were prepared from polyacrylonitrile/N,N-dimethylformamide (PAN/DMF) polymer solution and Al(NO₃)₃.9H₂O in ratio 1/10/1. Thereafter, the precursor fibers were calcined in the furnace at 900, 1100 and 1200 °C with a rate of 5 °C/min in air. The formation of crystalline phases, surface morphology and diameters of metastable and final alumina fibers were characterized using thermogravimetric analysis, X-ray diffraction analysis, the scanning electron microscopy and transmission electron microscopy. The precursor PAN/Al(NO₃)₃ fibers were amorphous. The thermal treatment leads to the phase transition from γ-Al₂O₃ to α-Al₂O₃ accompanied by removing of polyacrylonitrile (PAN). The fine porous microfibers composed of pure α-Al₂O₃ phase were prepared after calcinations at 1200 °C.

• Periodical: Materials Science Forum (Volume 891)
• Pages: 478-482
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.891.478
• Online since: March 2017
• Authors: Erika Mudra*, Magdalena Streckova, Alexandra Kovalcikova, Martin Šebek, Vladimír Girman, Jan Dusza
• Keywords: Alumina, Electrospinning, Electrospun Nanofibers, Metal Oxide Catalysts, Nanospider

References

[1] T. Xueyuan, Y. Yuxi, Electrospinning preparation and characterization of alumina Nanofibers with high aspect ratio, Ceram. Int. 41 (2015) 9232-9238.

DOI: 10.1016/j.ceramint.2015.04.157

[2] A. Mahapatra, B.G. Mishra, G. Hota, Synthesis of ultra-fine α-Al2O3 fibers via electrospinning method, Ceram. Int. 37 (2011) 2329-2333.

DOI: 10.1016/j.ceramint.2011.03.028

[3] S. Swaminathan, G. Chase, Electrospinning of Metal Doped Alumina Nanofibers for Catalyst Applications, in: Tong Lin (Ed), Nanofibers - Production, Properties and Functional Applications, ISBN: 978-953-307-420-7, InTech, 2011, pp.37-58.

DOI: 10.5772/24966

[4] P.K. Mallick, Figber reinforcement composites, Material Manufacturing and Design, third ed., CRC Press, Ohio, (2007).

[5] Y. Tanimoto, K. Nemoto, Development of Al2O3 Fiber-reinforced Al2O3-based Ceramics, Dent. Mater. J. 3 (2004) 297-304.

DOI: 10.4012/dmj.23.297

[6] R. Naslain, Materials design and processing of high temperature ceramic matrix composites: state of the art and future trends, Adv. Comp. Mater. 8, (1999) 3-16.

DOI: 10.1163/156855199x00029

[7] Ch. Peng, J. Zhang, Z. Xiong, B. Zhao, P. Liu, Fabrication of porous hollow γ-Al2O3nanofibers by facile electrospinning and its application for water remediation, Micropor. Mesopor. Mater. 215 (2015) 133-142.

DOI: 10.1016/j.micromeso.2015.05.026

[8] A. -M. Azad, Fabrication of transparent alumina (Al2O3) Nanofibers by electrospinning, Mater. Sci. Eng. A 435-436 (2006) 468-473.

DOI: 10.1016/j.msea.2006.07.075

[9] H. Wu, W. Pan, D. Lin, H. Li, Electrospinnig of ceramic Nanofibers: Fabrication, assembly and applications, J. Adv. Ceram. 1 (2012) 2-23.

[10] O. Jirsak, F. Sanetrnik, D. Lukas, V. Kotek, L. Martinova, J. Chaloupek, A method of nanofibers production from a polymer solution using electrostatic spinning and a device for carrying out the method, WO 2005/024101 A1., (2005).

[11] O. Jirsak, P. Sysel, F. Sanetrnik, J. Hruza, J. Chaloupek, Polyamic acid nanofibers produced by needleless, J. Nanomater. 2010 (2010) 1-6.

DOI: 10.1155/2010/842831

[12] A. Mahapatra, B.G. Mishra, G. Hota, Synthesis of ultra-fine α-Al2O3 fibers via electrospinning method, Ceram. Int. 37 (2011) 2329-2333.

DOI: 10.1016/j.ceramint.2011.03.028
