Influence of Ta Strengthening on Microstructure and Wear Resistance of Laser Cladding Ni45 Coating

Abstract:

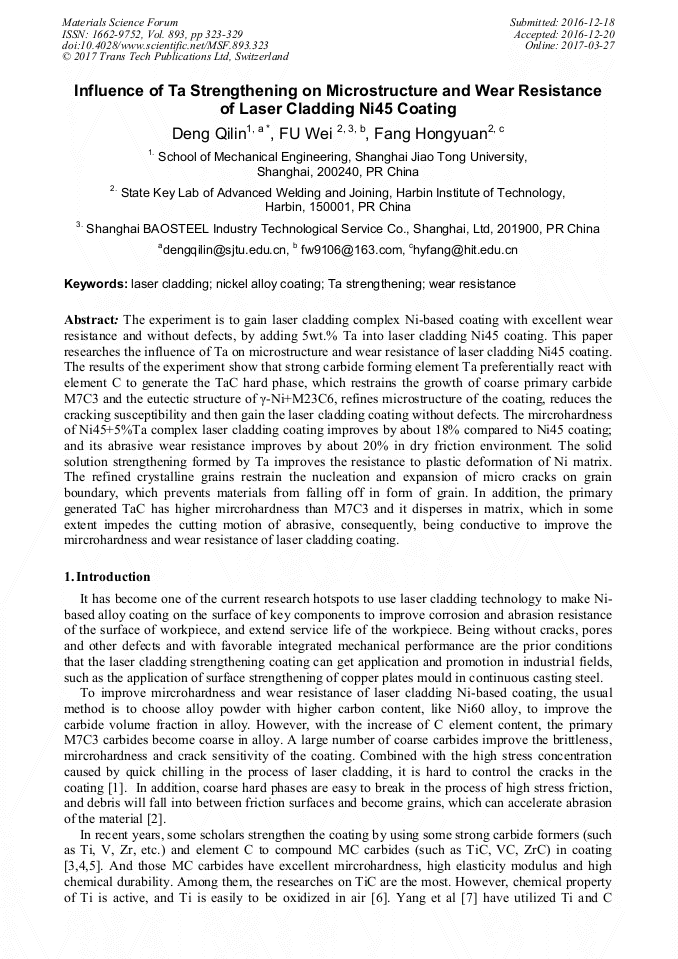

The experiment is to gain laser cladding complex Ni-based coating with excellent wear resistance and without defects, by adding 5wt.% Ta into laser cladding Ni45 coating. This paper researches the influence of Ta on microstructure and wear resistance of laser cladding Ni45 coating. The results of the experiment show that strong carbide forming element Ta preferentially react with element C to generate the TaC hard phase, which restrains the growth of coarse primary carbide M7C3 and the eutectic structure of γ-Ni+M23C6, refines microstructure of the coating, reduces the cracking susceptibility and then gain the laser cladding coating without defects. The mircrohardness of Ni45+5%Ta complex laser cladding coating improves by about 18% compared to Ni45 coating; and its abrasive wear resistance improves by about 20% in dry friction environment. The solid solution strengthening formed by Ta improves the resistance to plastic deformation of Ni matrix. The refined crystalline grains restrain the nucleation and expansion of micro cracks on grain boundary, which prevents materials from falling off in form of grain. In addition, the primary generated TaC has higher mircrohardness than M7C3 and it disperses in matrix, which in some extent impedes the cutting motion of abrasive, consequently, being conductive to improve the mircrohardness and wear resistance of laser cladding coating.

• Periodical: Materials Science Forum (Volume 893)
• Pages: 323-329
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.893.323
• Online since: March 2017
• Authors: Qi Lin Deng*, Wei Fu, Hong Yuan Fang
• Keywords: Laser Cladding, Nickel Alloy Coating, Ta Strengthening, Wear Resistance

References

[1] Zhang H., Shi Y., Kutsuna M. et al. Laser cladding of Colmonoy 6 powder on AISI316L austenitic stainless steel[J]. Nuclear Engineering and Design, 2010, 240(10): 2691-2696.

DOI: 10.1016/j.nucengdes.2010.05.040

[2] Wu Xiaolei, Chen Guangnan. Microstructural Characterization and Evolution of Laser Cladding Fe-Cr-C-W-Ni Alloys[J]. Transactions of Metal Heat Treatment, 1999, 20 (01): 18-23.

[3] DU Baoshuai, LI Qingming, WANG Xinhong, ZOU Zengda. In situ synthesis of TiC-VC particles reinforced Fe-based metal matrix composite coating by laser cladding[J]. Transactions of The China Welding Institution, 2007, 28(04): 65-68.

[4] ZHANG Qing-mao, HE Jin-jiang, UU Wen-jin, ZHONG Min-lin. Investigation on Microstructural Characteristics of ZrC-reinforced Metal Matrix Composite Layer Produced by Laser Cladding[J]. Transactions of The China Welding Institution, 2002, 23(2): 22-24.

[5] Zhang Q. M., He J. J., Liu W. J. et al. Microstructure characteristics of ZrC-reinforced composite coating produced by laser cladding[J]. Surface & Coatings Technology, 2003, 162 (2-3): 140-146.

DOI: 10.1016/s0257-8972(02)00697-7

[6] Sen Y., Na C., Wenjin L. et al. Fabrication of nickel composite coatings reinforced with TiC particles by laser cladding[J]. Surface & Coatings Technology, 2004, 183(2-3): 254-260.

DOI: 10.1016/j.surfcoat.2003.09.062

[7] Booth-Morrison C, Noebe R D, Seidman D N. Acta Mater[J], 2009, 57(3): 909 Booth-Morrison C., Noebe R. D., Seidman D. N. Effects of tantalum on the temporal evolution of a model Ni-Al-Cr superalloy during phase decomposition[J]. Acta Materialia, 2009, 57 (3): 909-920.

DOI: 10.1016/j.actamat.2008.10.029

[8] Yu Ting, Deng Qilin, Jiang Zhaohua, Dong Gang, Yang Jianguo. Influence of Heat Treatment on Laser Clad Ta Reinforced NiCrBSi Coating[J]. Rare Metal Materials and Engineering, 2013, 42(2): 410~414.

[9] YU Ting, DENG Qilin, DONG Gang, YANG Jianguo, ZHANG Wei. Influence of Ta on Crack Susceptibility and Mechanical Properties of Laser Clad Ni-based Coating. Chinese Journal of Mechanical Engineering, 2011, 47(22): 25~30.

DOI: 10.3901/jme.2011.22.025

[10] Yu T, Deng Q L, Dong G, et al. Effects of Ta on microstructure and micromircrohardness of Ni based laser clad coating. Appied Surface Science[J], 2011, 257(11): 5098~5103.

DOI: 10.1016/j.apsusc.2011.01.027

[11] Berns H., Wewers B. Development of an abrasion resistant steel composite with in situ TiC particles[J]. Wear, 2001, 251 1386-1395.

DOI: 10.1016/s0043-1648(01)00790-6

[12] Bowden F. P., Moore A. J. W., Tabor D. The ploughing and adhesion of sliding metals[J]. Journal of Applied Physics 1943, 14 (2): 80-91.

DOI: 10.1063/1.1714954

[13] Davidge R. W., Riley F. L. Grain-size dependence of the wear of alumina[J]. Wear, 1995, 186 (1): 45-49.

DOI: 10.1016/0043-1648(95)07171-7
