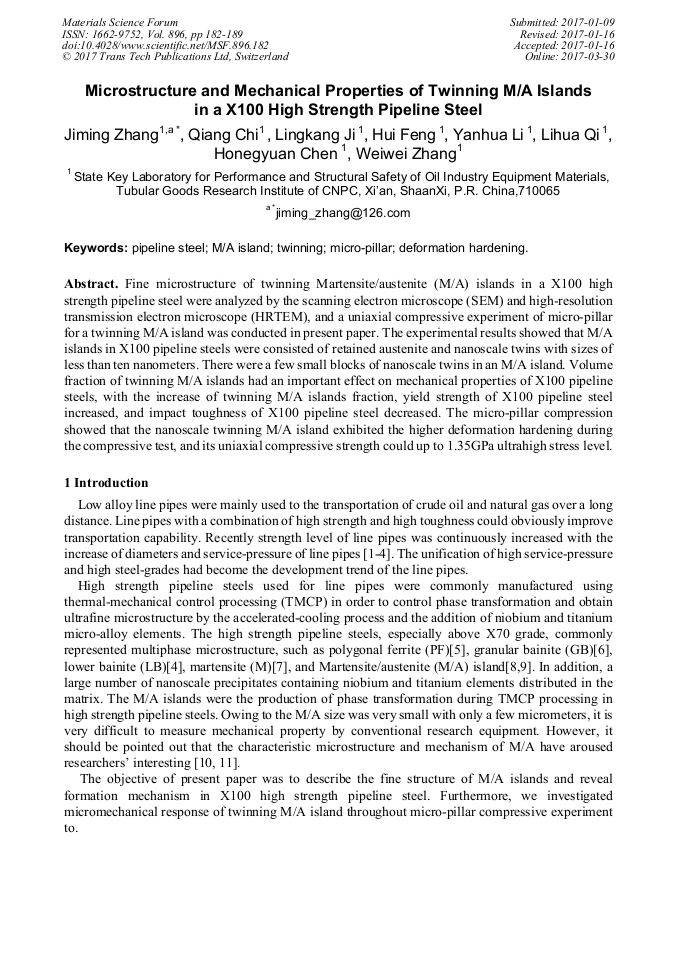

Microstructure and Mechanical Properties of Twinning M/A Islands in a X100 High Strength Pipeline Steel

Abstract:

Fine microstructure of twinning Martensite/austenite (M/A) islands in a X100 high strength pipeline steel were analyzed by the scanning electron microscope (SEM) and high-resolution transmission electron microscope (HRTEM), and a uniaxial compressive experiment of micro-pillar for a twinning M/A island was conducted in present paper. The experimental results showed that M/A islands in X100 pipeline steels were consisted of retained austenite and nanoscale twins with sizes of less than ten nanometers. There were a few small blocks of nanoscale twins in an M/A island. Volume fraction of twinning M/A islands had an important effect on mechanical properties of X100 pipeline steels, with the increase of twinning M/A islands fraction, yield strength of X100 pipeline steel increased, and impact toughness of X100 pipeline steel decreased. The micro-pillar compression showed that the nanoscale twinning M/A island exhibited the higher deformation hardening during the compressive test, and its uniaxial compressive strength could up to 1.35GPa ultrahigh stress level.

• Periodical: Materials Science Forum (Volume 896)
• Pages: 182-189
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.896.182
• Online since: March 2017
• Authors: Ji Ming Zhang*, Qiang Chi, Ling Kang Ji, Hui Feng, Yan Hua Li, Li Hua Qi, Hon Eg Yuan Chen, Wei Wei Zhang
• Keywords: Twinning, Deformation Hardening, M/A Island, Micro-Pillar, Pipeline Steel

References

[1] M. Eskandari, M.A. Mohtadi-Bonab, J.A. Szpunar, Evolution of the microstructure and texture of X70 pipeline steel during cold-rolling and annealing treatments, Materials & Design, 90 (15) (2016) 618-627.

DOI: 10.1016/j.matdes.2015.11.015

[2] Qingyun Sha, Dahang Li, Microstructure, mechanical prop erties and hydrogen induced cracking susceptibility of X80 pipeline steel with reduced Mn content, Materials Science and Engineering A, 585 (15) (2013) 214-221.

DOI: 10.1016/j.msea.2013.07.055

[3] Ji-Ming Zhang, Qiang Chi, Hong-Yuan Chen, Hai-Tao Wang, Influence of thermal aging on microstructure and mechanical behavior of X100 high deformability line pipe. Material Engineering and Mechanical Engineering, (2016) 524-531.

DOI: 10.1142/9789814759687_0060

[4] Ji-ming ZHANG, Wei-hua SUN, Hao SUN, Mechanical Properties and Microstructure of X120 Grade High Strength Pipeline Steel, Journal of Iron and Steel Research, International, 17 (10) (2010) 63-67.

DOI: 10.1016/s1006-706x(10)60185-9

[5] Jang-Bog Ju, Woo-sik Kim, Jae-il Jang, Variations in DBTT and CTOD within weld heat-affected zone of API X65 pipeline steel, Materials Science and Engineering A, 546(2012)258-262.

DOI: 10.1016/j.msea.2012.03.062

[6] J.M. Zhang, Q. Chi, L.K. Ji, C.Y. Huo, H.Y. Chen, Mechanical properties and microstructure of welding joint for high strength-toughness line pipe, The 26th International Ocean and Polar Engineering Conference, (2016).

[7] N.V. Bangaru, A.K. Sachdev, Influence of Cooling Rate on the Microstructure and Retained Austenite in an Intercritically Annealed Vanadium Containing HSLA Steel, Metallurgical Transactions A, 13A (1982) 1899-(1906).

DOI: 10.1007/bf02645933

[8] Nazmul Huda, Abdelbaset R.H. Midawi, James Gianetto, Robert Lazor, Adrian P. Gerlich, Influence of martensite-austenite (MA) on impact toughness of X80 line pipe steels, Materials Science and Engineering A, 662 (2016) 481-491.

DOI: 10.1016/j.msea.2016.03.095

[9] S. Shanmugam, N.K. Ramisetti, R.D.K. Misra, J. Hartmann, S.G. Jansto, Microstructure and high strength–toughness combination of a new 700 MPa Nb-microalloyed pipeline steel, Materials Science and Engineering A, 478 (2008) 26-37.

DOI: 10.1016/j.msea.2007.06.003

[10] Yong Zhong, Furen Xiao, Jingwu Zhang, Yiyin Shan, Wei Wang, Ke Yang, In situ TEM study of the effect of M/A films at grain boundaries on crack propagation in an ultra-fine acicular ferrite pipelinesteel, Acta Materialia, 54 (2006) 435-443.

DOI: 10.1016/j.actamat.2005.09.015

[11] Chunming Wang, Xingfang Wu, Jie Liu, Ning'an Xu, Transmission electron microscopy of marensite/austenite island in pipeline steel X70, Materials Science and Engineering A, 438-440 (2006) 267-271.

DOI: 10.1016/j.msea.2006.02.118

[12] J.W. Chistian, S. Mahajan, Deformation twinning, Progress in Materials Science, 39 (1995) 1-157.

[13] K. Poorhaydari, B.M. Patchett, D.G. Ivey, Transformation twins in the weld HAZ of a low-carbon high-strength microalloyed steel, Materials Science and Engineering A, 435-436(2006)371-382.

DOI: 10.1016/j.msea.2006.07.055

[14] M.J. Szczerba, S. Kopacz, M.S. Szczerba, Experimental studies on detwinning of face-centered cubic deformation twins, Acta Materialia, 104(2016)52-61.

DOI: 10.1016/j.actamat.2015.11.025

[15] Pan Zhang, Yulin Chen, Wenlong Xiao, Dehai Ping, Xinqing Zhao, Twin structure of the lath martensite in low carbon steel, Progress in Natural Science: Materials International, 26 (2016) 169-172.

DOI: 10.1016/j.pnsc.2016.03.004

[16] Y. You, CJ Shang, W.J. Nie, S. Subramanian, Investigation on the microstructure and toughness of coarse grained heat affected zone in X-100 multi-phase pipeline steel with high Nb content, Materials Science & Engineering A 558 (2012) 692-701.

DOI: 10.1016/j.msea.2012.08.077

[17] Simone Schreijag, Daniel Kaufmann, Moritz Wenk, Oliver Kraft, Reiner Monig, Size and microstructural effects in the mechanical response of a-Fe and low alloyed steel, Acta Materialia, 97 (2015) 94-104.

DOI: 10.1016/j.actamat.2015.06.038

[18] Z.W. Shan, RAJA K. Mishra, S.A. Syed Asif, Oden L. Warren, Andrew M. Minor, Mechanical annealing and source-limited deformation in submicrometre-diameter Ni crystals, Nature Materials, 7 (2008)115-119.

DOI: 10.1038/nmat2085

[19] W. D Nix, Yielding and strain hardening of thin metal films on substrates, Scr Mater, 39 (1998) 545-554.

DOI: 10.1016/s1359-6462(98)00195-x

[20] Q. Huang, D.L. Y, Bo. Xu,W.T. Hu, Y.M. Ma, Y.Z. Wang, Nanotwinned diamond with unprecedented hardness and stability, nature, 2014, 510(7504): 250-253.

DOI: 10.1038/nature13381

[21] K. Lu, Tabilizing nanostructures in metals using grain and twin boundary architectures, Nature Reviews Materials, 1, 16019 (2016)1-13.
