Characterization of the Welded-Joint of High-Strength High-Toughness Seamless Steel Pipe under High-Cycle Fatigue Condition

Abstract:

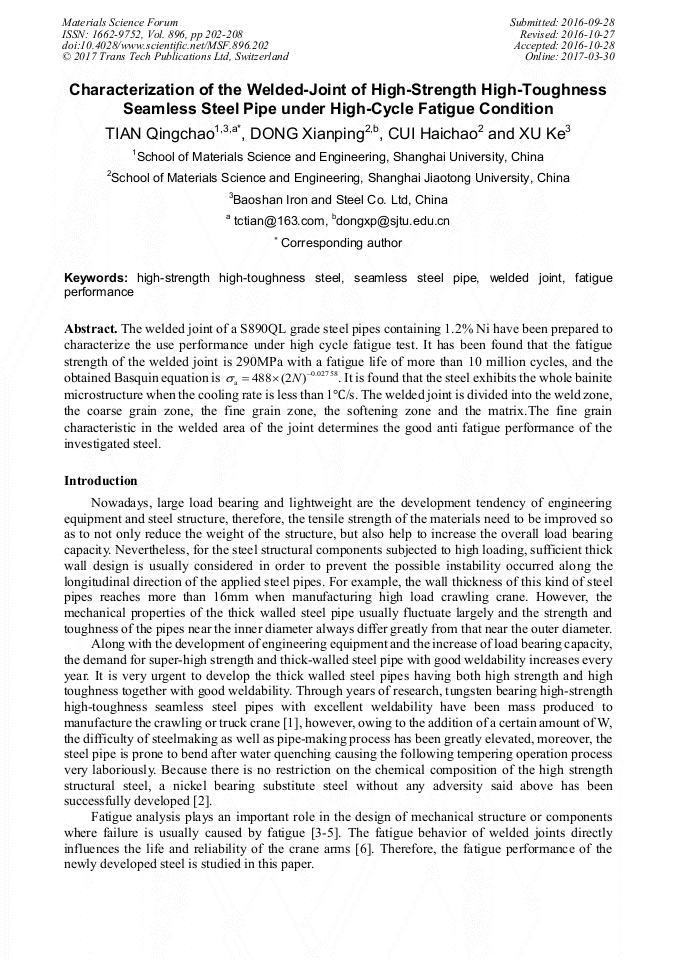

The welded joint of a S890QL grade steel pipes containing 1.2% Ni have been prepared to characterize the use performance under high cycle fatigue test. It has been found that the fatigue strength of the welded joint is 290MPa with a fatigue life of more than 10 million cycles, and the obtained Basquin equation is σa=488*(2N)-0.02758 . It is found that the steel exhibits the whole bainite microstructure when the cooling rate is less than 1°C/s. The welded joint is divided into the weld zone, the coarse grain zone, the fine grain zone, the softening zone and the matrix. The fine grain characteristic in the welded area determines the good anti fatigue performance of the investigated steel.

• Periodical: Materials Science Forum (Volume 896)
• Pages: 202-208
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.896.202
• Online since: March 2017
• Authors: Qing Chao Tian*, Xian Ping Dong, Hai Chao Cui, Ke Xu
• Keywords: Fatigue Performance, High-Strength High-Toughness Steel, Seamless Steel Pipe, Welded Joint

References

[1] Q C Tian, G L Zhai, Characterization of the welded-joint of tungsten bearing high-strength high-toughness seamless steel pipe, Steel Pipe, in Press.

DOI: 10.4028/www.scientific.net/msf.896.202

[2] Q C Tian, a 890MPa steel, pipe and its manufaturing method, China patent (ZL201610105103. 3) (2016).

[3] Y D Li, S X Li, Z G Yang, Y B Liu, and L J Rong, Influence of hydrogen on ultra-high cycle fatigue properties of high strength spring steel 50CrV, Acta Metall. Sinica, 44 (1): 64-68, (2008).

[4] Y H Hu, Q P Zhong, Z Zhang, Fatigue properties of S06 steel in long life regime under ultrasonic frequency, J. of Beijing University of Aeronautics and Astronautics, 36 (4): 464-468, (2010).

[5] C Bathias, L Drouillac, P L Francois. How and why the fatigue S-N curve does not approach a horizontal asymptote, Intern. J. of Fatigue, 23: S143- S151, (2001).

DOI: 10.1016/s0142-1123(01)00123-2

[6] M H Zhao, R G Yang, T Liu, F Yang, Study of the fatigue strength of welded joints using a high strength steel as the parent metal, J. of Mechanical Strength, 27(5): 687~ 690, (2005).

[7] G F Lu, J Z Gu, G Y Wu, Effect of small amount Ni and Cr on the adhesive feasibility of the oxide scale of low carbon steel, Acta Metall. Sinica, 21 (5): 359-364, (1985).

[8] Y P Weng, Technological progress in service life prolonging of high strength steel, Materials China, 28 (9): 52-61, (2009).

[9] Lee Y L, Pan J, Hathaway R.B., Barkey M. E., Fatigue Testing and Analysis Theory and Practice, Beijing: National Defense Industry Press, (2011).

[10] J Li, Q Sun, C W Li, J Liu, Z P Zhang, Study on the vibration fatigue life for aero-engine compressor blade, Chinese J. of Applied Mechanics, 28 (2): 189-193, (2011).

[11] A C Zhan, W Gao, Y Q Sun, The effect of microstructure sizes of steel on fat, J. of Northwest Institute of Textile Science and Technology, 13 (4): 344-348, (1999).
