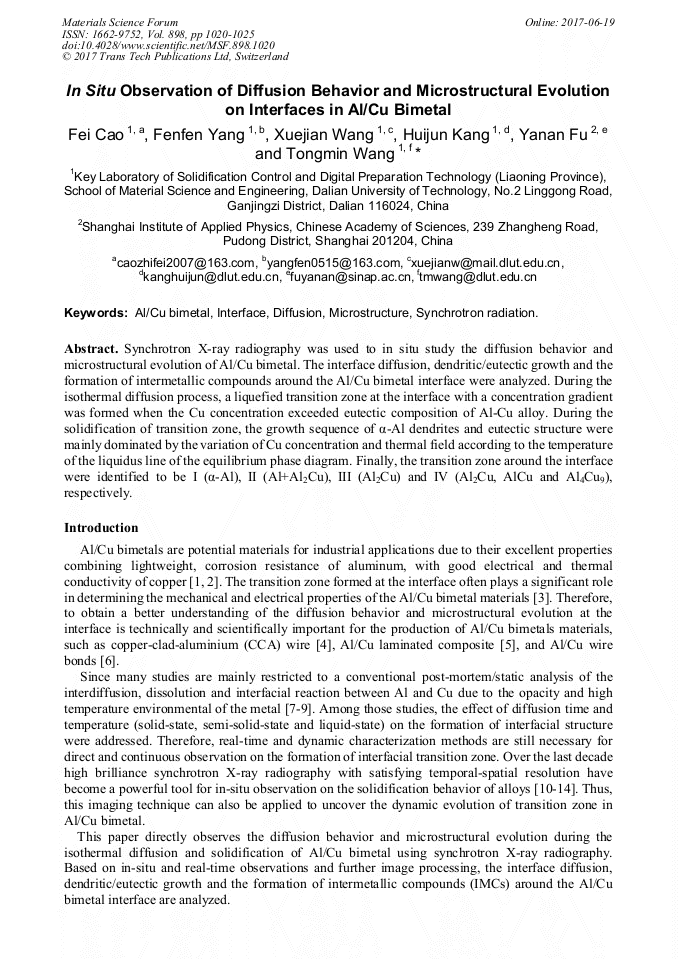

In Situ Observation of Diffusion Behavior and Microstructural Evolution on Interfaces in Al/Cu Bimetal

Abstract:

Synchrotron X-ray radiography was used to in situ study the diffusion behavior and microstructural evolution of Al/Cu bimetal. The interface diffusion, dendritic/eutectic growth and the formation of intermetallic compounds around the Al/Cu bimetal interface were analyzed. During the isothermal diffusion process, a liquefied transition zone at the interface with a concentration gradient was formed when the Cu concentration exceeded eutectic composition of Al-Cu alloy. During the solidification of transition zone, the growth sequence of α-Al dendrites and eutectic structure were mainly dominated by the variation of Cu concentration and thermal field according to the temperature of the liquidus line of the equilibrium phase diagram. Finally, the transition zone around the interface were identified to be I (α-Al), II (Al+Al₂Cu), III (Al₂Cu) and IV (Al₂Cu, AlCu and Al₄Cu₉), respectively.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 1020-1025
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.1020
• Online since: June 2017
• Authors: Fei Cao, Fen Fen Yang, Xue Jian Wang, Hui Jun Kang, Ya Nan Fu, Tong Min Wang*
• Keywords: Al/Cu Bimetal, Diffusion, Interface, Microstructure, Synchrotron Radiation

References

[1] W.B. Lee, K.S. Bang, S.B. Jung, Effects of intermetallic compound on the electrical and mechanical properties of friction welded Cu/Al bimetallic joints during annealing, J. Alloys Compd. 390 (2005) 212-219.

DOI: 10.1016/j.jallcom.2004.07.057

[2] X.B. Li, G.Y. Zu, P. Wang, Microstructural development and its effects on mechanical properties of Al/Cu laminated composite, T. Nonferr. Metal Soc. 25 (2015) 36-45.

[3] E. Hug, N. Bellido, Brittleness study of intermetallic (Cu, Al) layers in copper-clad aluminium thin wires, Mater. Sci. Eng. A 528 (2011) 7103-7106.

DOI: 10.1016/j.msea.2011.05.077

[4] Y.J. Su, X.H. Liu, H.Y. Huang, X.F. Liu, J.X. Xie, Interfacial Microstructure and Bonding Strength of Copper Cladding Aluminum Rods Fabricated by Horizontal Core-Filling Continuous Casting, Metall. Mater. Trans. A 42 (2011) 4088-4099.

DOI: 10.1007/s11661-011-0785-x

[5] M. Abbasi, A. Karimi Taheri, M.T. Salehi, Growth rate of intermetallic compounds in Al/Cu bimetal produced by cold roll welding process, J. Alloys Compd. 319 (2001) 233-241.

DOI: 10.1016/s0925-8388(01)00872-6

[6] H.G. Kim, S.M. Kim, J.Y. Lee, M.R. Choi, S.H. Choe, K.H. Kim, J.S. Ryu, S. Kim, S.Z. Han, W.Y. Kim, S.H. Lim, Microstructural evaluation of interfacial intermetallic compounds in Cu wire bonding with Al and Au pads, Acta Mater. 64 (2014) 356-366.

DOI: 10.1016/j.actamat.2013.10.049

[7] K. Meguro, M. O, M. Kajihara, Growth behavior of compounds due to solid-state reactive diffusion between Cu and Al, J. Mater. Sci. 47 (2012) 4955-4964.

DOI: 10.1007/s10853-012-6370-x

[8] Y. Han, L. Ben, J. Yao, S. Feng, C. Wu, Investigation on the interface of Cu/Al couples during isothermal heating, Int. J. Miner. Metall. Mater. 22 (2015) 309-318.

DOI: 10.1007/s12613-015-1075-1

[9] S. Tavassoli, M. Abbasi, R. Tahavvori, Controlling of IMCs layers formation sequence, bond strength and electrical resistance in AlCu bimetal compound casting process, Mater. Des. 108 (2016) 343-353.

DOI: 10.1016/j.matdes.2016.06.076

[10] F. Cao, F. Yang, H. Kang, C. Zou, T. Xiao, W. Huang, T. Wang, Effect of traveling magnetic field on solute distribution and dendritic growth in unidirectionally solidifying Sn–50 wt%Pb alloy: An in situ observation, J. Cryst. Growth 450 (2016).

DOI: 10.1016/j.jcrysgro.2016.06.034

[11] D. Casari, W.U. Mirihanage, K.V. Falch, I.G. Ringdalen, J. Friis, R. Schmid-Fetzer, D. Zhao, Y. Li, W.H. Sillekens, R.H. Mathiesen, α-Mg primary phase formation and dendritic morphology transition in solidification of a Mg-Nd-Gd-Zn-Zr casting alloy, Acta Mater. 116 (2016).

DOI: 10.1016/j.actamat.2016.06.035

[12] L. Abou-Khalil, G. Salloum-Abou-Jaoude, G. Reinhart, C. Pickmann, G. Zimmermann, H. Nguyen-Thi, Influence of gravity level on Columnar-to-Equiaxed Transition during directional solidification of Al – 20 wt. % Cu alloys, Acta Mater. 110 (2016).

DOI: 10.1016/j.actamat.2016.03.007

[13] T.M. Wang, F. Cao, Z.N. Chen, H.J. Kang, J. Zhu, Y.N. Fu, T.Q. Xiao, T.J. Li, Three dimensional microstructures and wear resistance of Al-Bi immiscible alloys with different grain refiners, Sci. China Tech. Sci. 58 (2015) 870-875.

DOI: 10.1007/s11431-015-5816-1

[14] S. Shuai, E. Guo, A.B. Phillion, M.D. Callaghan, T. Jing, P.D. Lee, Fast synchrotron X-ray tomographic quantification of dendrite evolution during the solidification of MgSn alloys, Acta Mater. 118 (2016) 260-269.

DOI: 10.1016/j.actamat.2016.07.047

[15] H.L. Xie, B. Deng, G.H. Du, Y.N. Fu, R.C. Chen, G.Z. Zhou, Y.Q. Ren, Y.D. Wang, Y.L. Xue, G.Y. Peng, Y. He, H. Guo, T.Q. Xiao, Latest advances of X-ray imaging and biomedical applications beamline at SSRF, Nucl. Sci. Tech. 26 (2015) 16.

DOI: 10.1088/1748-0221/8/08/c08003

[16] T.M. Wang, F. Cao, P. Zhou, H.J. Kang, Z.N. Chen, Y.N. Fu, T.Q. Xiao, W.X. Huang, Q.X. Yuan, Study on diffusion behavior and microstructural evolution of Al/Cu bimetal interface by synchrotron X-ray radiography, J. Alloys Compd. 616 (2014).

DOI: 10.1016/j.jallcom.2014.07.172

[17] ASM Metals Handbook, Alloy phase diagram, vol 3, 1992, p.44.

[18] A. Bogno, H. Nguyen-Thi, N. Bergeon, N. Mangelinck-Noël, T. Schenk, B. Billia, E. Boller, J. Baruchel, Application of synchrotron X-ray radiography to the study of dendritic equiaxed microstructure formation in Al–Cu alloys, Nucl. Instrum. Methods Phys. Res., Sect. B 268 (2010).

DOI: 10.1007/s12666-009-0058-1
