Microstructure Evolution of the Mg-3Zn-0.5Er Alloy during Hot Rolling

Abstract:

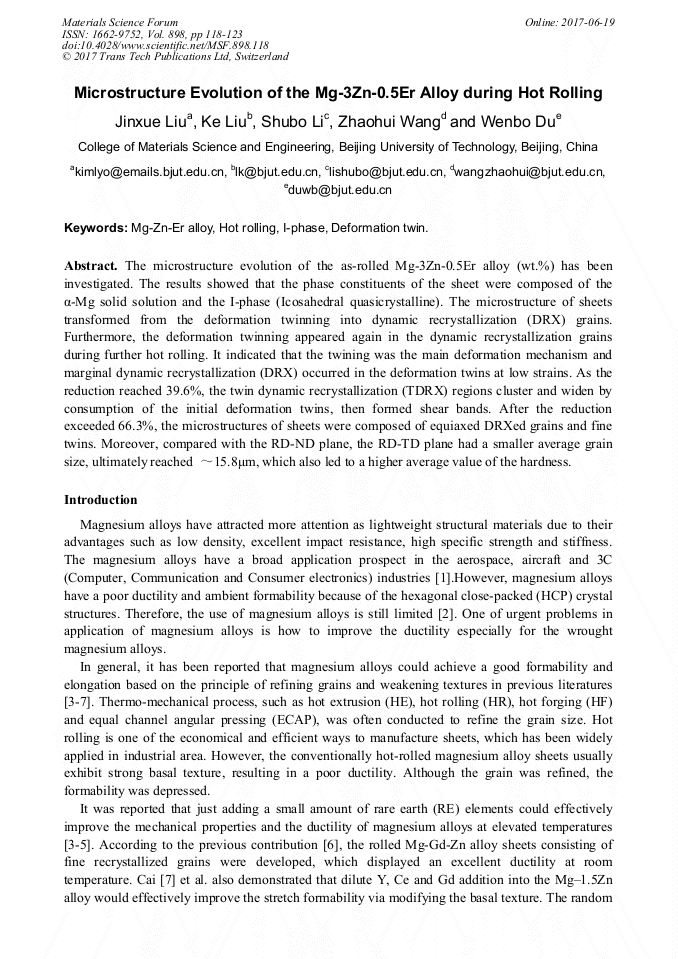

The microstructure evolution of the as-rolled Mg-3Zn-0.5Er alloy (wt.%) has been investigated. The results showed that the phase constituents of the sheet were composed of the α-Mg solid solution and the I-phase (Icosahedral quasicrystalline). The microstructure of sheets transformed from the deformation twinning into dynamic recrystallization (DRX) grains. Furthermore, the deformation twinning appeared again in the dynamic recrystallization grains during further hot rolling. It indicated that the twining was the main deformation mechanism and marginal dynamic recrystallization (DRX) occurred in the deformation twins at low strains. As the reduction reached 39.6%, the twin dynamic recrystallization (TDRX) regions cluster and widen by consumption of the initial deformation twins, then formed shear bands. After the reduction exceeded 66.3%, the microstructures of sheets were composed of equiaxed DRXed grains and fine twins. Moreover, compared with the RD-ND plane, the RD-TD plane had a smaller average grain size, ultimately reached ~15.8μm, which also led to a higher average value of the hardness.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 118-123
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.118
• Online since: June 2017
• Authors: Jin Xue Liu*, Ke Liu, Shu Bo Li, Zhao Hui Wang, Wen Bo Du
• Keywords: Deformation Twin, Hot Rolling, I-Phase, Mg-Zn-Er Alloy

References

[1] X.W. Yu, B. Jiang, J.J. He, B. Liu, Z.T. Jiang, F.S. Pan, Effect of Zn addition on the oxidation property of Mg-Y alloy at high temperatures, J. Alloys Compd. 687 (2016) 252-262.

DOI: 10.1016/j.jallcom.2016.06.128

[2] Q. Ma, B. Li, W.R. Whittington, A.L. Oppedal, P.T. Wang, M.F. Horstemeyer, Texture evolution during dynamic recrystallization in a magnesium alloy at 450℃, Acta Mater. 67 (2014) 102–115.

DOI: 10.1016/j.actamat.2013.12.025

[3] G. Ben-Hamu, D. Eliezer, K.S. Shin, S. Cohen, The relation between microstructure and corrosion behavior of Mg-Y-RE-Zr alloys, J. Alloys Compd. 431(2007) 269-276.

DOI: 10.1016/j.jallcom.2006.05.075

[4] Y. Sun, M.X. Kong, X.H. Jiao, In-vitro evaluation of Mg-4. 0Zn-0. 2Ca alloy forbiomedical application, Trans. Nonferrous Met. Soc. China. 21 (2011) 252-257.

[5] T. Al-Samman, X. Li, Sheet texture modification in magnesium-based alloys by selective rare earth alloying, Mater. Sci. Eng. A. 528 (2011) 3809–3822.

DOI: 10.1016/j.msea.2011.01.080

[6] D. Wua, R.S. Chena, E.H. Han, Excellent room-temperature ductility and formability of rolled Mg–Gd–Zn alloy sheets, J. Alloys Compd. 509(2011) 2856–2863.

DOI: 10.1016/j.jallcom.2010.11.141

[7] Z.X. Cai, H.T. Jiang, D. Tang, Z. Ma, Q. Kang, Texture and stretch formability of rolled Mg–Zn–RE (Y, Ce, and Gd) alloys at room temperature, Rare Metals. 32(2013)441–447.

DOI: 10.1007/s12598-013-0139-5

[8] H. Yan, S.W. Xu, R.S. Chen, Kamado, T. Honma, E.H. Han, Twins, shear bands and recrystallization of a Mg–2. 0%Zn–0. 8%Gd alloy during rolling, Scripta Mater. 64 (2011) 141–144.

DOI: 10.1016/j.scriptamat.2010.09.029

[9] L.W.F. Mackenzie, M.O. Pekguleryuz, The recrystallization and texture of magnesium–zinc–cerium alloys, Scripta Mater. 59 (2008) 665–668.

DOI: 10.1016/j.scriptamat.2008.05.021

[10] K. Liu, C.C. Sun, Z.H. Wang, S.B. Li, Q.F. Wang, W.B. Du, Microstructure, texture and mechanical properties of Mg-Zn-Er alloys containing I-phase and W-phase simultaneously, J. Alloys Compd. 665 (2016) 76-85.

DOI: 10.1016/j.jallcom.2015.10.262

[11] O. Sitdikov, R. Kaibyshev, Dynamic recrystallization in pure magnesium, Mater. Trans. 42(2001)1928-(1937).

DOI: 10.2320/matertrans.42.1928

[12] Y.N. Wang, Y.C. Xin, H.H. Yu, L.C. Lv, Q. Liu, Formation and microstructure of shear bands during hot rolling of a Mg–6Zn–0. 5Zr alloy plate with a basal texture, J. Alloys Compd. 644 (2015) 147–154.

DOI: 10.1016/j.jallcom.2015.04.155
