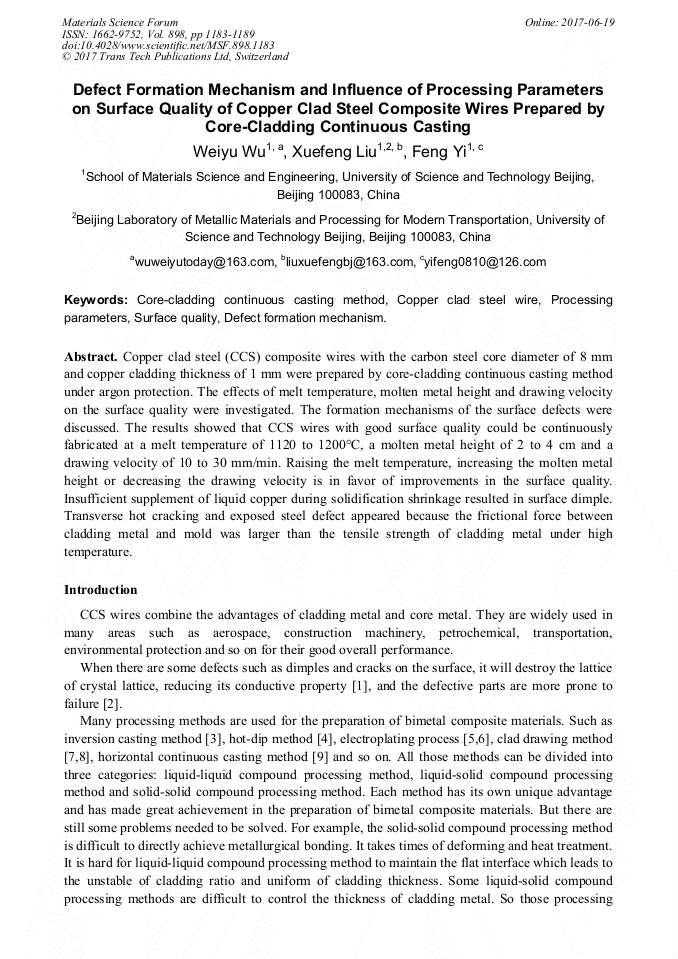

Defect Formation Mechanism and Influence of Processing Parameters on Surface Quality of Copper Clad Steel Composite Wires Prepared by Core-Cladding Continuous Casting

Abstract:

Copper clad steel (CCS) composite wires with the carbon steel core diameter of 8 mm and copper cladding thickness of 1 mm were prepared by core-cladding continuous casting method under argon protection. The effects of melt temperature, molten metal height and drawing velocity on the surface quality were investigated. The formation mechanisms of the surface defects were discussed. The results showed that CCS wires with good surface quality could be continuously fabricated at a melt temperature of 1120 to 1200°C, a molten metal height of 2 to 4 cm and a drawing velocity of 10 to 30 mm/min. Raising the melt temperature, increasing the molten metal height or decreasing the drawing velocity is in favor of improvements in the surface quality. Insufficient supplement of liquid copper during solidification shrinkage resulted in surface dimple. Transverse hot cracking and exposed steel defect appeared because the frictional force between cladding metal and mold was larger than the tensile strength of cladding metal under high temperature.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 1183-1189
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.1183
• Online since: June 2017
• Authors: Wei Yu Wu*, Xue Feng Liu, Feng Yi
• Keywords: Copper Clad Steel Wire, Core-Cladding Continuous Casting Method, Defect Formation Mechanism, Processing Parameters, Surface Quality

References

[1] P.V. Andrews, M.B. West, C.R. Robeson, The effect of grain boundaries on the electrical resistivity of polycrystalline copper and aluminium, J. Philosophical Magazine. 19 (1969) 887-898.

DOI: 10.1080/14786436908225855

[2] R.N. Parkins, Localized corrosion and crack initiation, J. Materials Science and Engineering A. 103(1988) 143-156.

DOI: 10.1016/0025-5416(88)90562-9

[3] J.M. Yu, Q.J. Wang, Y.Z. Xiao, Experimental study of inversion casting of copper clad steel,J. The Chinese Journal of Nonferrous Metals. 9(1999) 474-476.

[4] X. Fu, J.M. Yu, H.G. Chen, Simplified model of hot dipping process of copper-coated steel wire, J. ActaMetallurgicaSinica. 36(2000) 828-832.

[5] H.Z. Abdel, A.A. Abdel, New environmentally friendly noncyanide alkaline electrolyte for copper electroplating, J. Surface and Coatings Technology. 203(2009) 1360-1365.

DOI: 10.1016/j.surfcoat.2008.11.001

[6] E.R.S.S. Abd, S.M. Sayyah, D.M.M. El. Electroplating of copper films on steel substrates from acidic gluconate baths, J. Applied Surface Science. 165(2000): 249-254.

DOI: 10.1016/s0169-4332(00)00015-5

[7] D.C. Ko, S.K. Lee, B.M. Kim, Evaluation of copper coating ratio in steel/copper clad wire drawing, J. Journal of Materials Processing Technology. 186(2007) 22-26.

DOI: 10.1016/j.jmatprotec.2006.11.131

[8] T.T. Sasaki, M. Barkey, G.B. Thompson, Microstructural evolution of copper clad steel bimetallic wire, J. Materials Science and Engineering A., 528(2011) 2974-2981.

DOI: 10.1016/j.msea.2010.12.032

[9] H. Li, G.Y. Lin, Y.X. Lei, Analysis on Microstructure and Defect of Copper Clad Steel and Zinc Clad Steel Bimetallic Grounding Electrode Materials, J. Hot Working Technology. 44(2015) 95-98.

[10] X.F. Liu, W.Y. Wu,J.X. Xie, China Patent 201410440662. 0. (2014).
