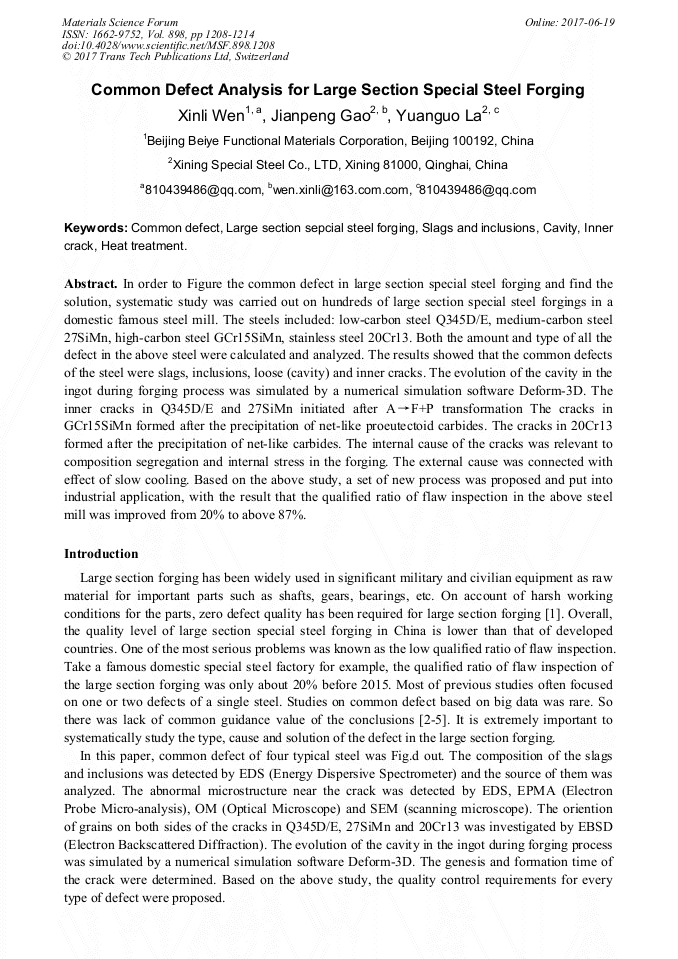

Common Defect Analysis for Large Section Special Steel Forging

Abstract:

In order to Figure the common defect in large section special steel forging and find the solution, systematic study was carried out on hundreds of large section special steel forgings in a domestic famous steel mill. The steels included: low-carbon steel Q345D/E, medium-carbon steel 27SiMn, high-carbon steel GCr15SiMn, stainless steel 20Cr13. Both the amount and type of all the defect in the above steel were calculated and analyzed. The results showed that the common defects of the steel were slags, inclusions, loose (cavity) and inner cracks. The evolution of the cavity in the ingot during forging process was simulated by a numerical simulation software Deform-3D. The inner cracks in Q345D/E and 27SiMn initiated after A→F+P transformation The cracks in GCr15SiMn formed after the precipitation of net-like proeutectoid carbides. The cracks in 20Cr13 formed after the precipitation of net-like carbides. The internal cause of the cracks was relevant to composition segregation and internal stress in the forging. The external cause was connected with effect of slow cooling. Based on the above study, a set of new process was proposed and put into industrial application, with the result that the qualified ratio of flaw inspection in the above steel mill was improved from 20% to above 87%.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 1208-1214
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.1208
• Online since: June 2017
• Authors: Xin Li Wen*, Jian Peng Gao, Yuan Guo La
• Keywords: Cavity, Common Defect, Heat Treatment, Inclusions, Inner Crack, Large Section Sepcial Steel Forging, Slags

References

[1] Du F S, Wang M T, Li X T. Research on deformation and microstructure evolution during forging of large-scale parts[J]. Journal of Materials Processing Technology, 2007, 187: 591-594.

DOI: 10.1016/j.jmatprotec.2006.11.038

[2] Ebara R. Fatigue crack initiation and propagation behavior of forging die steels[J]. International Journal of Fatigue, 2010, 32(5): 830-840.

DOI: 10.1016/j.ijfatigue.2009.07.020

[3] Paschke H, Weber M, Kaestner P, et al. Influence of different plasma nitriding treatments on the wear and crack behavior of forging tools evaluated by Rockwell indentation and scratch tests[J]. Surface and Coatings Technology, 2010, 205(5): 1465-1469.

DOI: 10.1016/j.surfcoat.2010.07.053

[4] Ebara R, Kubota K. Failure analysis of hot forging dies for automotive components[J]. Engineering Failure Analysis, 2008, 15(7): 881-893.

DOI: 10.1016/j.engfailanal.2007.10.016

[5] Guobin L, Jianjun W, Yanfei J, et al. The nucleation and propagation of a thermal fatigue crack in 4Cr2NiMoV steel[J]. Journal of Materials Processing Technology, 2000, 100(1): 63-66.

DOI: 10.1016/s0924-0136(99)00445-8

[6] X.L. Wen, Z Mei, L.C. Zhang, etal. The genesis of inner cracks in large section forging 27SiMn and improvement of slow cooling process[J]. Transactions of Materials and Heat Treatment, 2016, 37(1): 106-111.

[7] Jang Y Y, Jeong J U, Huh N S, et al. Closed-Form Solutions for Stress Intensity Factor and Elastic Crack Opening Displacement for Circumferential Through-Wall Cracks in the Interface between an Elbow and a Straight Pipe under Internal Pressure[J]. Journal of the Korean Society of Manufacturing Technology Engineers, 2015, 24(5): 553-560.

DOI: 10.7735/ksmte.2015.24.5.553

[8] Samadian P, Parsa M H, Mirzadeh H. Prediction of Proper Temperatures for the Hot Stamping Process Based on the Kinetics Models[J]. Journal of Materials Engineering and Performance, 2015, 24(2): 572-585.

DOI: 10.1007/s11665-014-1371-3

[9] Lee H, Lee H. Effect of Cr Content on Microstructure and Mechanical Properties of Low Carbon Steel Welds[J]. International Journal of Electrochemical Science, 2015, 10(10): 8028-8040.

DOI: 10.1016/s1452-3981(23)11074-1

[10] Chen X, Qiao G, Han X, et al. Effects of Mo, Cr and Nb on microstructure and mechanical properties of heat affected zone for Nb-bearing X80 pipeline steels[J]. Materials & Design, 2014, 53: 888-901.

DOI: 10.1016/j.matdes.2013.07.037
