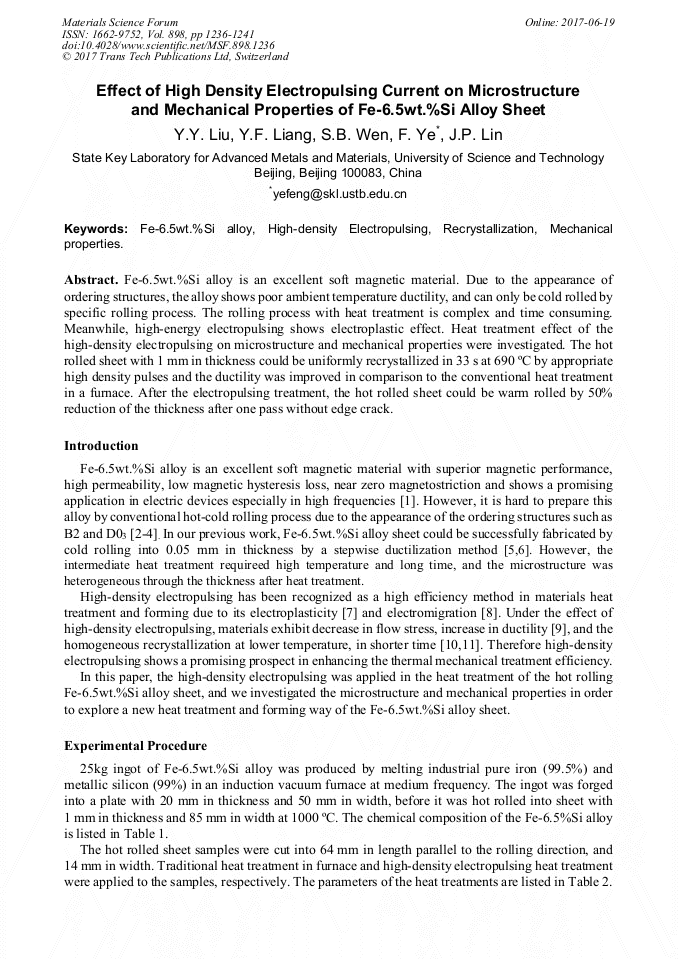

Effect of High Density Electropulsing Current on Microstructure and Mechanical Properties of Fe-6.5wt.%Si Alloy Sheet

Abstract:

Fe-6.5wt.%Si alloy is an excellent soft magnetic material. Due to the appearance of ordering structures, the alloy shows poor ambient temperature ductility, and can only be cold rolled by specific rolling process. The rolling process with heat treatment is complex and time consuming. Meanwhile, high-energy electropulsing shows electroplastic effect. Heat treatment effect of the high-density electropulsing on microstructure and mechanical properties were investigated. The hot rolled sheet with 1 mm in thickness could be uniformly recrystallized in 33 s at 690 oC by appropriate high density pulses and the ductility was improved in comparison to the conventional heat treatment in a furnace. After the electropulsing treatment, the hot rolled sheet could be warm rolled by 50% reduction of the thickness after one pass without edge crack.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 1236-1241
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.1236
• Online since: June 2017
• Authors: Y.Y. Liu, Y.F. Liang, S.B. Wen, Feng Ye*, J.P. Lin
• Keywords: Fe-6.5wt.%Si Alloy, High-Density Electropulsing, Mechanical Properties, Recrystallization

References

[1] Z. Z. He, Y. Zhao, W. H. Luo, Ferromagnetism, (Beijing, Metallurgical Industry Press, 2012)P. 16.

[2] T. Ros-Yañez, Y. Houbaert, O. Fischer, J. Schneider, Production of high silicon steel for electrical applications by thermomechanical processing, Journal of Materials Processing Technology, 143(144), 916(2003).

DOI: 10.1016/j.jmatprotec.2003.10.002

[3] K. Raviprasad, K. Chattopadhyay, The influence of critical points and structure and microstructural evolution in iron rich Fe-Si alloys, Acta Metallurgica Et Materialia, 41(2), 609(1993).

DOI: 10.1016/0956-7151(93)90091-6

[4] T. Ros, D. Ruiz, Y. Houbaert, R.E. Vandenberghe, Study of ordering phenomena in high silicon electrical steel(up to 12. 5 at%) by Mossbauer spectroscopy, Journal of Magnetism and Magnetic Materials 242(245 ), 208(2002).

DOI: 10.1016/s0304-8853(01)01165-9

[5] Y. F. Liang, Fabrication and properties of Fe-6. 5%Si alloy sheet by cold rolling, doctor, degree thesis, University of Science and Technology of Beijing(2010).

[6] Y. F. Liang, F. Ye, J. P. Lin, Y. L. Wang, G. L. Chen, Effect of annealing temperature on magnetic properties of cold rolled high silicon steel thin sheet. Journal of alloys and Compounds, 491(1), 268(2010).

DOI: 10.1016/j.jallcom.2009.10.118

[7] O. A. Troitskii, V. I. Lichtman, Anisotropy of action of gamma-electronic emission and gamma rays on deformation of single zinc crystals in brittle state, Doklady Akademii Nauk SSSR, 148(2), 332 (1963).

[8] F. Ding, G. Y. Tang, Z. H. Xu, S. Q. Tian, A New Method for Improving Strength and Plasticity of Steel Wire, Journal of materials Science and technology, 23(2), 273(2007).

[9] H. C. Zhou, Y. F. Liang, F. Ye, G. Y. Tang, J. P. Lin, Effect of High Density Pulsing Current on Mechanical Properties of Fe-6. 5wt. %Si Alloy Sheet, Materials Science Forum, 749, 151(2013).

DOI: 10.4028/www.scientific.net/msf.749.151

[10] G. L. Hu, Applied fundamental research of the high-density electropulsing treatment on the Fe-3Si Alloy Strip, doctor, degree thesis, Tsinghua University(2011).

[11] Z. H. Lai, H. Conrad, G. Q. Teng, Nanocrystallization of amorphous Fe-Si-B alloy using high current density electropulsing, Materical science and technology, 287(2), 238(2000).

DOI: 10.1016/s0921-5093(00)00781-4

[12] H. Conrad, Z. Guo, A. F. Sprecher, Effect of an electric field on the recovery and recrystallization of Al and Cu, Scripta Metallurgica, 23(6), 821(1989).

DOI: 10.1016/0036-9748(89)90252-4

[13] G. Y. Tang, M. Zheng, Y. Zhu, J. Zhang, W. Fang, Q. Li, The application of the electro-plastic technique in the cold-drawing of steel wires, Journal of Materials Processing Technology, 84(1), 268(1998).

DOI: 10.1016/s0924-0136(98)00229-5
