Effect of Cooling Rates on the Solidification and Microstructure of Rapidly Solidified Mg70.8Zn28Nd1.2 Quasicrystal Alloy

Article Preview

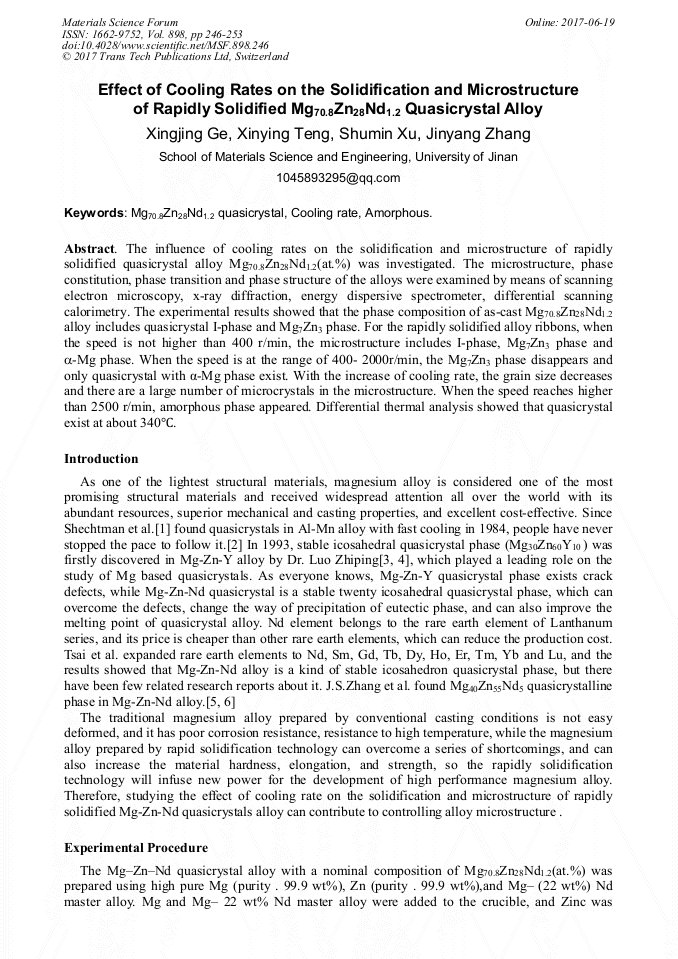

Abstract:

The influence of cooling rates on the solidification and microstructure of rapidly solidified quasicrystal alloy Mg70.8Zn28Nd1.2(at.%) was investigated. The microstructure, phase constitution, phase transition and phase structure of the alloys were examined by means of scanning electron microscopy, x-ray diffraction, energy dispersive spectrometer, differential scanning calorimetry. The experimental results showed that the phase composition of as-cast Mg70.8Zn28Nd1.2 alloy includes quasicrystal I-phase and Mg7Zn3 phase. For the rapidly solidified alloy ribbons, when the speed is not higher than 400 r/min, the microstructure includes I-phase, Mg7Zn3 phase and α-Mg phase. When the speed is at the range of 400-2000r/min, the Mg7Zn3 phase disappears and only quasicrystal with α-Mg phase exist. With the increase of cooling rate, the grain size decreases and there are a large number of microcrystals in the microstructure. When the speed reaches higher than 2500 r/min, amorphous phase appeared. Differential thermal analysis showed that quasicrystal exist at about 340°C.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

246-253

Citation:

Online since:

June 2017

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2017 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] GROBNER J, CHUMAK I, FETZER R S. Experimental study of ternary Ca-Mg-Si phase equilibria and thermodynamic assessment of Ca-Si and Ca-Mg-Si system [J]. Intermetallics, 2003, 11: 1065-1074.

DOI: 10.1016/j.intermet.2003.07.001

Google Scholar

[2] KOSHIKAWA N, SAKAMOTO S, EDAGAWA T, et al. New stable icosahedral quasicrystal in Mg-Pd-Al system [J]. Japan Journal of Applied Physics, 1992, 31(7B): L966-L969.

DOI: 10.1143/jjap.31.l966

Google Scholar

[3] TSAI A P, AOKI K, INOUE A, et al. Synthesis of stable quasicrystalline particle-dispersed Al base composite alloys [J]. J. Mater. Res., 1993, 31(1): 5-7.

DOI: 10.1557/jmr.1993.0005

Google Scholar

[4] Luo Z P, Zhang S Q, Tang Y L, etc. Quasicrystals in as-cast Mg-Zn-RE alloys [J]. Scripta Metallurgica et Materialia, 1993, 28(11): 1513-1518.

DOI: 10.1016/0956-716x(93)90584-f

Google Scholar

[5] Sato T J, Abe E, Tsai A P. Decagonal quasicrystals in the Zn-Mg-R alloys (R = rare-earth and Y) [J]. Materials Science and Engineering A, 2001, 304-306: 867-870.

DOI: 10.1016/s0921-5093(00)01623-3

Google Scholar

[6] Tsai A P, Niikura A, Inoue A. Stoichiometric icosahedral phase in the Zn-Mg-Y system [J]. Journal of Materials Research, 1997, 12(6): 1468-1471.

DOI: 10.1557/jmr.1997.0202

Google Scholar

[7] M.A. Taha: Geometry of melt-spun ribbons [J]. Materials Science and Engineering A, 1991, 134: 1162-1165.

DOI: 10.1016/0921-5093(91)90946-k

Google Scholar

[8] B. Cantor, W.T. Kim, B.P. Bcwlay, and A.G. Gillen: Microstructure-cooling rate correlations in melt-spun alloys. [J]. Materials Science and Engineering, 1991, 26(5). 126.

DOI: 10.1007/bf00544465

Google Scholar

[9] A.G. Gillen and B. Cantor: Photocalorimetric cooling rate measurements on a Ni-5wt. % Al alloy rapidly solidified by melt spinning. [J] Acta Metallurgica, 1985, 33(10). 1813.

DOI: 10.1016/0001-6160(85)90005-7

Google Scholar

[10] G. Liu, Z.Z. Zhang, Q. Chen, H. Zhang, C.H. Yin, and S.M. Zhang: Microstructure and properties of rapidly solidified Mg-Zn-Y-Zr alloy ribbons. [J] Materials Engineering, 2009, 9, 38. [In Chinese].

Google Scholar
