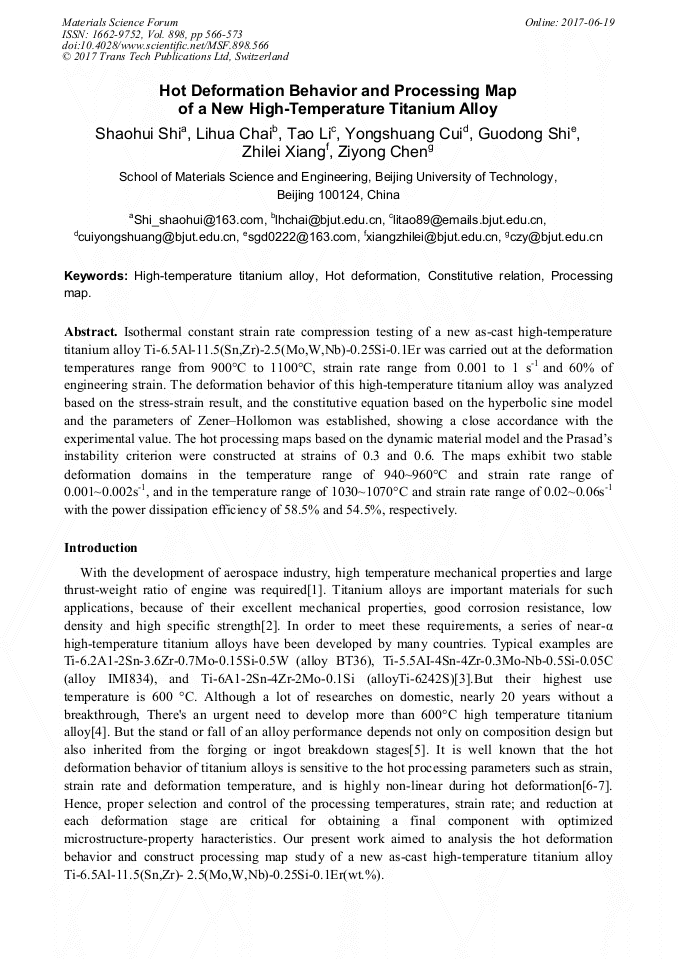

Hot Deformation Behavior and Processing Map of a New High-Temperature Titanium Alloy

Abstract:

Isothermal constant strain rate compression testing of a new as-cast high-temperature titanium alloy Ti-6.5Al-11.5(Sn,Zr)-2.5(Mo,W,Nb)-0.25Si-0.1Er was carried out at the deformation temperatures range from 900°C to 1100°C, strain rate range from 0.001 to 1 s^-1 and 60% of engineering strain. The deformation behavior of this high-temperature titanium alloy was analyzed based on the stress-strain result, and the constitutive equation based on the hyperbolic sine model and the parameters of Zener–Hollomon was established, showing a close accordance with the experimental value. The hot processing maps based on the dynamic material model and the Prasad’s instability criterion were constructed at strains of 0.3 and 0.6. The maps exhibit two stable deformation domains in the temperature range of 940~960°C and strain rate range of 0.001~0.002s^-1, and in the temperature range of 1030~1070°C and strain rate range of 0.02~0.06s^-1 with the power dissipation efficiency of 58.5% and 54.5%, respectively.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 566-573
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.566
• Online since: June 2017
• Authors: Shao Hui Shi*, Li Hua Chai, Tao Li, Yong Shuang Cui, Guo Dong Shi, Zhi Lei Xiang, Zi Yong Chen
• Keywords: Constitutive Relation, High-Temperature Titanium Alloy, Hot Deformation, Processing Map

References

[1] Sun F, Zhang J Y, Marteleur M, et al. A new titanium alloy with a combination of high strength, high strain hardening and improved ductility[J]. Scripta Materialia, 2015, 94: 17-20.

DOI: 10.1016/j.scriptamat.2014.09.005

[2] Han Y, Zeng W, Qi Y, et al. The influence of thermomechanical processing on microstructural evolution of Ti600 titanium alloy[J]. Materials Science and Engineering: A, 2011, 528(29): 8410-8416.

DOI: 10.1016/j.msea.2011.08.007

[3] Peng W, Zeng W, Wang Q, et al. Comparative study on constitutive relationship of as-cast Ti60 titanium alloy during hot deformation based on Arrhenius-type and artificial neural network models[J]. Materials & Design, 2013, 51: 95-104.

DOI: 10.1016/j.matdes.2013.04.009

[4] Luo J, Li M Q. Strain rate sensitivity and strain hardening exponent during the isothermal compression of Ti60 alloy[J]. Materials Science and Engineering: A, 2012, 538: 156-163.

DOI: 10.1016/j.msea.2012.01.021

[5] Wanjara P, Jahazi M, Monajati H, et al. Hot working behavior of near-α alloy IMI834[J]. Materials Science and Engineering: A, 2005, 396(1): 50-60.

DOI: 10.1016/j.msea.2004.12.005

[6] Feng S, Jinshan L, Hongchao K, et al. Phase Transformation during the Continuous Cooling in Near α Titanium Alloy Ti60[J]. Rare Metal Materials and Engineering, 2015, 44(4): 848-853.

DOI: 10.1016/s1875-5372(15)30061-8

[7] Balasundar I, Raghu T, Kashyap B P. Modeling the hot working behavior of near-α titanium alloy IMI 834[J]. Progress in Natural Science: Materials International, 2013, 23(6): 598-607.

DOI: 10.1016/j.pnsc.2013.11.004

[8] Ramachandra C, Singh A K, Sarma G M K. Microstructural characterisation of near-α titanium alloy Ti-6Al-4Sn-4Zr-0. 70 Nb-0. 50 Mo-0. 40 Si[J]. Metallurgical transactions A, 1993, 24(6): 1273-1280.

DOI: 10.1007/bf02668196

[9] Jia W, Zeng W, Zhou Y, et al. High-temperature deformation behavior of Ti60 titanium alloy[J]. Materials Science and Engineering: A, 2011, 528(12): 4068-4074.

DOI: 10.1016/j.msea.2011.01.113

[10] Lu S, Xin L I, Wang K, et al. High temperature deformation behavior and optimization of hot compression process parameters in TC11 titanium alloy with coarse lamellar original microstructure[J]. Transactions of Nonferrous Metals Society of China, 2013, 23(2): 353-360.

DOI: 10.1016/s1003-6326(13)62469-3

[11] Zhao Z L, Li H, Fu M W, et al. Effect of the initial microstructure on the deformation behavior of Ti60 titanium alloy at high temperature processing[J]. Journal of Alloys and Compounds, 2014, 617: 525-533.

DOI: 10.1016/j.jallcom.2014.08.092

[12] Lin Y C, Chen X M. A critical review of experimental results and constitutive descriptions for metals and alloys in hot working[J]. Materials & Design, 2011, 32(4): 1733-1759.

DOI: 10.1016/j.matdes.2010.11.048

[13] Garofalo F. Fundamentals of creep and creep-rupture in metals[M]. Macmillan, (1965).

[14] Sellars C M, McTegart W J. On the mechanism of hot deformation[J]. Acta Metallurgica, 1966, 14(9): 1136-1138.

DOI: 10.1016/0001-6160(66)90207-0

[15] Prasad Y, Seshacharyulu T. Processing maps for hot working of titanium alloys[J]. Materials Science and Engineering: A, 1998, 243(1): 82-88.

DOI: 10.1016/s0921-5093(97)00782-x

[16] Rezaee M, Zarei-Hanzaki A, Ghambari M, et al. Flow Characterization of a Duplex near α Ti6242 Alloy through Interrelation of Microstructural Evolution, 3D Activation Energy Map, and Processing Map[J]. Advanced Engineering Materials, (2016).

DOI: 10.1002/adem.201500426

[17] Zeng W, Zhou Y, Zhou J, et al. Recent development of processing map theory[J]. Xiyou Jinshu Cailiao yu Gongcheng(Rare Metal Materials and Engineering), 2006, 35(5): 673-677.

[18] Huang L J, Geng L, Li A B, et al. Characteristics of hot compression behavior of Ti–6. 5 Al–3. 5 Mo–1. 5 Zr–0. 3 Si alloy with an equiaxed microstructure[J]. Materials Science and Engineering: A, 2009, 505(1): 136-143.

DOI: 10.1016/j.msea.2008.12.041

[19] Prasad Y. Recent advances in the science of mechanical processing[J]. Indian Journal of Technology, 1990, 28(6-8): 435-451.
