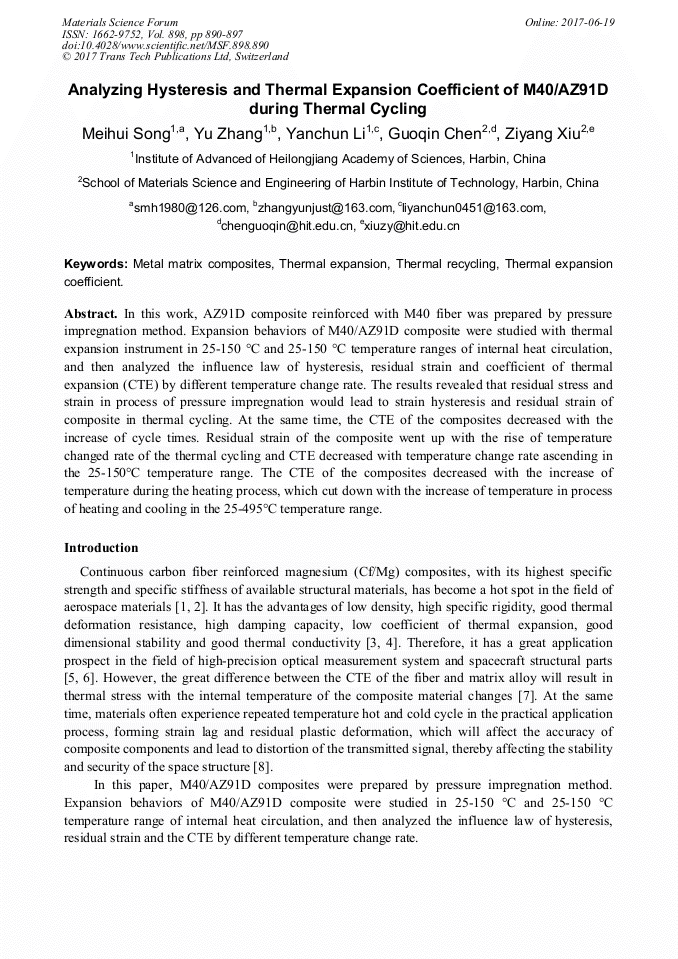

Analyzing Hysteresis and Thermal Expansion Coefficient of M40/AZ91D during Thermal Cycling

Abstract:

In this work, AZ91D composite reinforced with M40 fiber was prepared by pressure impregnation method. Expansion behaviors of M40/AZ91D composite were studied with thermal expansion instrument in 25-150 °C and 25-150 °C temperature ranges of internal heat circulation, and then analyzed the influence law of hysteresis, residual strain and coefficient of thermal expansion (CTE) by different temperature change rate. The results revealed that residual stress and strain in process of pressure impregnation would lead to strain hysteresis and residual strain of composite in thermal cycling. At the same time, the CTE of the composites decreased with the increase of cycle times. Residual strain of the composite went up with the rise of temperature changed rate of the thermal cycling and CTE decreased with temperature change rate ascending in the 25-150°C temperature range. The CTE of the composites decreased with the increase of temperature during the heating process, which cut down with the increase of temperature in process of heating and cooling in the 25-495°C temperature range.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 890-897
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.890
• Online since: June 2017
• Authors: Mei Hui Song*, Yu Zhang, Yan Chun Li, Guo Qin Chen, Zi Yang Xiu
• Keywords: Metal Matrix Composites, Thermal Expansion, Thermal Expansion Coefficient, Thermal Recycling

References

[1] C. Mayencourt, R. Schaller. Mechanical Stress Relaxation in Magnesium Based Composites, J. Materials Science and Engineering A. 325(2002) 286~291.

DOI: 10.1016/s0921-5093(01)01454-x

[2] W.G. Wang, B.L. Xiao, Z.Y. Ma. Evolution of interfacial nanostructures and stress states in Mg matrix composites reinforced with coated continuous carbon fibers. Composites Science and Technology 72(2012)152~158.

DOI: 10.1016/j.compscitech.2011.10.008

[3] T. Matsunaga, K. Matsuda, T. Hatayama, K. Shinozaki, M. Yoshida. Fabrication of Continuous Carbon Fiber Reinforced Aluminum Magnesium Alloy Composite Wires Using Ultrasonic Infiltration Method, J. Composites: Part A. 38(2007) 1902~(1911).

DOI: 10.1016/j.compositesa.2007.03.007

[4] Gryc. A, Rzychon. T. Characterisation of Microstructure of WE43 Magnesium Matrix Composites Reinforced with Carbon Fibres. Archives Of Metallurgy And Materials. 61(2016) 1075~1081.

DOI: 10.1515/amm-2016-0181

[5] M. Mizumoto, Y. Kaneko, A. Kagawa. Microstructure Control of Fiber Reinforced Metal Matrix Composites Fabricated by Low Pressure Infiltration Process, J. Journal of the Japan Institute of Metals. 68(2004) 1047~1052.

DOI: 10.2320/jinstmet.68.1047

[6] Song Meihui, Wu Gaohui, Xiu Ziyang, Chen Guoqin. Effect of SiC Particle on Microstructure and Properties of M40/ZM6 Composites. Rare Metal Materials And Engineering. 43(2014) 2187~2190.

[7] MeiJuan Zhang, ZhanYi Cao, XiaoHong Yang, YongBing Liu. Microstructures and Wear Properties of Graphite and Al2O3 Reinforced AZ91D-Cex Composites. Nonferrous Met. Soc. China 20(2010) s471~s475.

DOI: 10.1016/s1003-6326(10)60521-3

[8] M. Russell-Stevens, R. I. Todd, M. Papakyriacou. Thermal Expansion Behaviour of Ultra High Modulus Carbon Fibre Reinforced Magnesium Composite during Thermal Cycling, J. Journal of Materials Science. 41(2006) 6228~6236.

DOI: 10.1007/s10853-006-0318-y

[9] E. G. Wolff, B. K. Min, M. H. Kural. Thermal Cycling of a Unidirectional Graphite Magnesium Composite, J. Journal of Materials Science. 20(1985) 1141~1149.

DOI: 10.1007/bf01026307

[10] Y. C. Qin, S. Y. He, D. Z. Yang. Effect of Thermal Mechanical Cycling on Thermal Expansion Behavior of Boron Fiber Reinforced Aluminum Matrix Composite. J. Materials Chemistry and Physics. 86(2004) 204~209.

DOI: 10.1016/j.matchemphys.2004.03.009

[11] Zechao Tao, Quangui Guo, Xiaoqing Gao, Lang Liu, Graphite Fiber/Copper Composites with Near-Zero Thermal Expansion. Materials and Design. 33 (2012) 372~375.

DOI: 10.1016/j.matdes.2011.03.035
