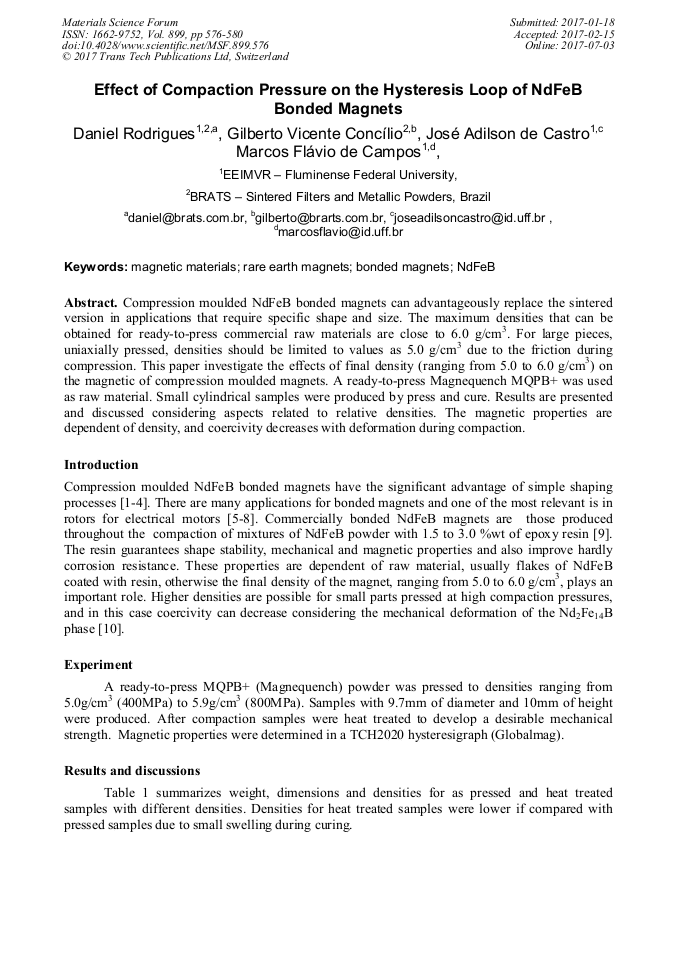

Effect of Compaction Pressure on the Hysteresis Loop of NdFeB Bonded Magnets

Abstract:

Compression moulded NdFeB bonded magnets can advantageously replace the sintered version in applications that require specific shape and size. The maximum densities that can be obtained for ready-to-press commercial raw materials are close to 6.0 g/cm³. For large pieces, uniaxially pressed, densities should be limited to values as 5.0 g/cm³ due to the friction during compression. This paper investigate the effects of final density (ranging from 5.0 to 6.0 g/cm³) on the magnetic of compression moulded magnets. A ready-to-press Magnequench MQPB+ was used as raw material. Small cylindrical samples were produced by press and cure. Results are presented and discussed considering aspects related to relative densities. The magnetic properties are dependent of density, and coercivity decreases with deformation during compaction.

• Periodical: Materials Science Forum (Volume 899)
• Pages: 576-580
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.899.576
• Online since: July 2017
• Authors: Daniel Rodrigues*, Gilberto Vicente Concílio, Jose Adilson de Castro, Marcos Flavio de Campos
• Keywords: Bonded Magnets, Magnetic Materials, NdFeB, Rare Earth Magnets

References

[1] B. Grieb, D. Brown, D. Miller, N. Shet. Cost effective motor design based on isotropic and anisotropic bonded NdFeB magnets,. In: Magnetic Materials in Electrical Machine Applications 2009. Yyteri Spa Hotell, Pori, Finland. Available at: http: /www. prizz. fi/sites/default/files/tiedostot/linkki2ID416. pdf.

[2] B. Grieb, J.P. Yang, D. Brown, D. Miller, G. Kroll. RE- Bonded Magnets Material Grades and Progress in Market Penetration". In: Advanced Magnet Materials and their Applications, October 10 2007. Available at: http: /www. prizz. fi/sites/default/files/tiedostot/linkki1ID329. pdf.

[3] B. Grieb, N. Sheth, D. Brown, H. Feng, Y. Keat, J. Herchenroeder, M. Chen, D. Miller. Cost Effective Materials Based on NdFeB Compounds,. In: Magnet Materials in Electrical Machine Applications June 16th , 2012 Pori, Finland. Available at: http: /www. prizz. fi/sites/default/files/tiedostot/linkki2ID913. pdf.

[4] D. Brown, B. M. Ma, Z. Chen: Journal of Magnetism and Magnetic Materials Vol. 48 (2002), p.432.

[5] Nimit K Sheth Cost Effective Motor Design using Bonded NdFeB Magnets, Available at: http: /www. mqitechnology. com/downloads/articles/CostEffectiveMotorDesigns. pdf.

[6] Yoshinobu Honkura The development of Dy free NdFeB anisotropic bonded magnet and its motor applications, Available at: http: /komag. org/2013winter/Yoshinobu%20Honkura. pdf.

[7] Hyo Jun Kim, Dong Hwan Kim, Chang Seop Koh, and Pan Seok Shin: IEEE Trans. Magn. Vol. 43 (2007), p.2522.

[8] Joris Lemmens Wim Deprez: Electric Motors. In Andreas Sumper, Angelo Baggini. Electrical Energy Efficiency: Technologies and Applications John Wiley & Sons. United Kingdom, 2012 Chapter 7.

DOI: 10.1002/9781119990048.ch7

[9] D. Rodrigues, G.V. Concílio, E.P. Rocha, M.F. de Campos, J.A. Castro Materials Science Forum Vol. 802 (2014), p.590.

[10] E.A. Périgo, M.F. de Campos, R.N. Faria, F.J.G. Landgraf. Powder Technology Vol. 224 (2012), p.291.
