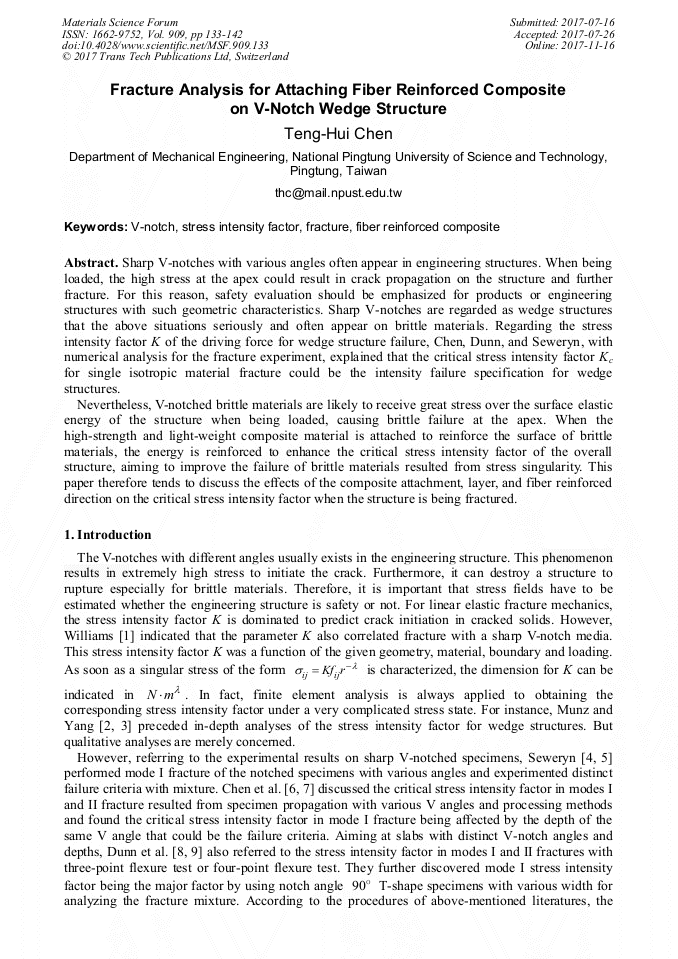

Fracture Analysis for Attaching Fiber Reinforced Composite on V-Notch Wedge Structure

Abstract:

Sharp V-notches with various angles often appear in engineering structures. When being loaded, the high stress at the apex could result in crack propagation on the structure and further fracture. For this reason, safety evaluation should be emphasized for products or engineering structures with such geometric characteristics. Sharp V-notches are regarded as wedge structures that the above situations seriously and often appear on brittle materials. Regarding the stress intensity factor K of the driving force for wedge structure failure, Chen, Dunn, and Seweryn, with numerical analysis for the fracture experiment, explained that the critical stress intensity factor K_c for single isotropic material fracture could be the intensity failure specification for wedge structures. Nevertheless, V-notched brittle materials are likely to receive great stress over the surface elastic energy of the structure when being loaded, causing brittle failure at the apex. When the high-strength and light-weight composite material is attached to reinforce the surface of brittle materials, the energy is reinforced to enhance the critical stress intensity factor of the overall structure, aiming to improve the failure of brittle materials resulted from stress singularity. This paper therefore tends to discuss the effects of the composite attachment, layer, and fiber reinforced direction on the critical stress intensity factor when the structure is being fractured.

You might also be interested in these eBooks

5th Asia Conference on Mechanical and Materials Engineering

View Preview

Info:

Periodical:

Materials Science Forum (Volume 909)

Pages:

133-142

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.909.133

Citation:

Cite this paper

Online since:

November 2017

Authors:

Teng Hui Chen*

Keywords:

Fiber Reinforced Composite, Fracture, Stress Intensity Factor, V-Notch

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M. L. Williams, Stress singularities resulting from various boundary conditions in angular corners of plates in extension, ASME J. Appl. Mech. 74 (1952) 526-528.

DOI: 10.1115/1.4010799

Google Scholar

[2] D. Munz, Y. Y. Yang, Stresses near the edge of bonded dissimilar materials described by two stress intensity factors, Int. J. Fract. 60(2) (1993) 169-177.

DOI: 10.1007/bf00012444

Google Scholar

[3] Y. Y. Yang, D. Munz, Stress singularities in a dissimilar materials joint with edge tractions under mechanical and thermal loadings, Int. J. Solids Struct. 34(10) (1997) 1199-1216.

DOI: 10.1016/s0020-7683(96)00097-2

Google Scholar

[4] A. Seweryn, Brittle fracture criterion for structures with sharp notches, Eng. Fract. Mech. 47 (1994) 673-681.

DOI: 10.1016/0013-7944(94)90158-9

Google Scholar

[5] A. Seweryn, A. Lukaszewicz, Verification of brittle fracture criteria for elements with v-shaped notches, Eng. Fract. Mech. 69 (2002) 1487-1510.

DOI: 10.1016/s0013-7944(01)00138-2

Google Scholar

[6] D. H. Chen, N. A. Noda, Y. Takase, T. Morodomi, Evaluation of static strength by the application of stress intensity of angular corner, JSME Part A 62(598) (1996) 1445-1449.

Google Scholar

[7] N. A. Noda, D. H. Chen, Y. Takase, T. Morodomi, Evaluation of static strength by the application of mixed mode stress intensity of angular corner, JSME Part A 64(620) (1998) 958-963.

DOI: 10.1299/kikaia.64.958

Google Scholar

[8] M. L. Dunn, W. Suwito, S. Cunningham, Fracture initiation at sharp notches: correlation using critical stress intensities, Int. J. Solids Struct. 34 (1997) 3873-3883.

DOI: 10.1016/s0020-7683(96)00236-3

Google Scholar

[9] M. L. Dunn, W. Suwito, S. Cunningham, C. W. May, Fracture initiation at sharp notches under modeI, modeII, and mild mixed mode loading, Int. J. Fract. 84 (1997) 367-381.

Google Scholar

[10] M. Strandberg, Fracture at v-notches with contained plasticity, Eng. Fract. Mech. 69 (2002) 403-415.

DOI: 10.1016/s0013-7944(01)00079-0

Google Scholar

[11] D. Ouinas, M. Sahnoune, N. Benderdouche, B. Bachir Bouiadjra, Stress intensity factor analysis for notched cracked structure repaired by composite patching, Mater. Des. 30 (2009) 2302-2308.

DOI: 10.1016/j.matdes.2008.11.014

Google Scholar

[12] L. Gu, A. R. M. Kasavajhala, S. Zhao, Finite element analysis of cracks in aging aircraft structures with bonded composite-patch repairs, Compos. Part B- Eng. 42(3) (2011) 505-510.

DOI: 10.1016/j.compositesb.2010.11.014

Google Scholar
