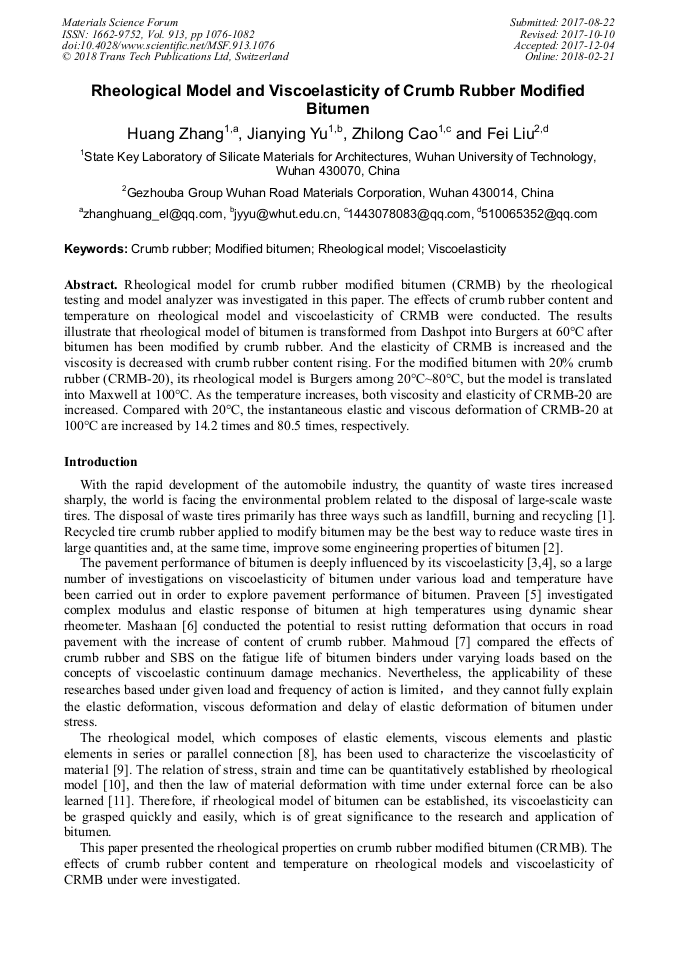

Rheological Model and Viscoelasticity of Crumb Rubber Modified Bitumen

Abstract:

Rheological model for crumb rubber modified bitumen (CRMB) by the rheological testing and model analyzer was investigated in this paper. The effects of crumb rubber content and temperature on rheological model and viscoelasticity of CRMB were conducted. The results illustrate that rheological model of bitumen is transformed from Dashpot into Burgers at 60°C after bitumen has been modified by crumb rubber. And the elasticity of CRMB is increased and the viscosity is decreased with crumb rubber content rising. For the modified bitumen with 20% crumb rubber (CRMB-20), its rheological model is Burgers among 20°C~80°C, but the model is translated into Maxwell at 100°C. As the temperature increases, both viscosity and elasticity of CRMB-20 are increased. Compared with 20°C, the instantaneous elastic and viscous deformation of CRMB-20 at 100°C are increased by 14.2 times and 80.5 times, respectively.

• Periodical: Materials Science Forum (Volume 913)
• Pages: 1076-1082
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.913.1076
• Online since: February 2018
• Authors: Huang Zhang*, Jian Ying Yu, Zhi Long Cao, Fei Liu
• Keywords: Crumb Rubber, Modified Bitumen, Rheological Model, Viscoelasticity

References

[1] Jagmeet S, Jaspal S. Application of waste tyre crumb rubber in construction Industry. International Journal of Civil, Structural, Environmental and Infrastructure Engineering Research and Development. 5(3) (2015) 57–64.

[2] Oikonomou N, Mavridou S. 9–The use of waste tyre crumb rubber in civil engineering works [J]. Sustainability of Construction Materials, (2009) 213-238.

DOI: 10.1533/9781845695842.213

[3] Thompson P D. The rheological properties of bituminous materials containing natural crumb rubber and their relation to road performance[C]/ Australian Road Research Board Conference, 1st, 1962, Canberra. (1962).

[4] Guo D D. Impact of rheological properties of fiber asphalt mortar on mixture road performance [J]. Advanced Materials Research. 737 (2013) 2287-2291.

DOI: 10.4028/www.scientific.net/amr.734-737.2287

[5] Kumar P, Mehndiratta H C, Singh K L. Rheological properties of crumb crumb rubber modified bitumen-A lab study [J]. Journal Ofentific & Industrial Research. 68(9) (2009) 812-816.

[6] Mashaan N S, Ali A H, Karim M R, et al. Effect of crumb rubber concentration on the physical and rheological properties of crumb rubberised bitumen binders [J]. International Journal of Physical Sciences. 6(4) (2011) 684-690.

[7] Ameri M, Seif M R, Abbasi M, et al. Viscoelastic fatigue resistance of bitumen binders modified with crumb crumb rubber and styrene butadiene polymer[J]. Petroleum Science and Technology. 35(1)(2017) 30-36.

DOI: 10.1080/10916466.2016.1233246

[8] Lubarda V A, Benson D J, Meyers M A. Strain-rate effects in rheological models of inelastic response [J]. International Journal of Plasticity. 19(8) (2003) 1097-1118.

DOI: 10.1016/s0749-6419(02)00011-6

[9] Kießling R, Landgraf R, Scherzer R, et al. Introducing the concept of directly connected rheological elements by reviewing rheological models at large strains[J]. International Journal of Solids & Structures. 97-98 (2016) 650-667.

DOI: 10.1016/j.ijsolstr.2016.04.023

[10] Zhang J P, Pei J Z, Wang B G. Micromechanical-rheology model for predicting the complex shear modulus of bitumen mastic[J]. Advanced Materials Research. 168-170 (2010) 523-527.

DOI: 10.4028/www.scientific.net/amr.168-170.523

[11] Behzadfar E, Hatzikiriakos S G. Viscoelastic properties and constitutive modelling of bitumen [J]. Fuel. 108(11) (2013) 391-399.

DOI: 10.1016/j.fuel.2012.12.035

[12] Yu J Y, Cao Z L, Xue L H, et al. A material rheological model analyzer and the method to establish the material rheological model [P]. CN 105910958A, (2016).

[13] Cao W D, Liu S T, Cui X Z, et al. Effect of crumb rubber particle size and content on properties of crumb rubber modified (CRM) asphalt [J]. Applied Mechanics & Materials. 99-100 (2011) 955-959.

DOI: 10.4028/www.scientific.net/amm.99-100.955
