Bake Precipitation Behavior in AA5182 Sheet for Can End Stock

Yang Yang; Pi Zhi Zhao; Li Ying Zou; Rong Hui Fan

doi:10.4028/www.scientific.net/MSF.913.37

Paper Titles

Effects of the Delivery Tube Diameter on the Qualities of Cu-9.7Sn-0.2P Alloy Powder Produced by Gas Atomization
p.3

Effect of Cold Rolling Reduction on Recrystallization Behaviors of AA5754 Sheets in a Short Annealing Time
p.11

Property Requirements and Research Progress of Aluminum Alloy Sheets for Automotive Closure
p.18

Thermal Deformation Behavior and Processing Map of Al-Mg-Er Alloy
p.30

Bake Precipitation Behavior in AA5182 Sheet for Can End Stock
p.37

Hot Compression Deformation Behavior and Microstructural Evolution of Al-7.5Zn-1.5Mg-0.2Cu-0.2Zr Alloy
p.43

Effect of Cold Deformation and Annealing on Microstructure and Mechanical Properties of 5083 Aluminum Alloy Sheets
p.49

Microstructural Changes and Thermal Stability of A201, 319s and 2618 Aluminum Alloys during Thermal Exposure
p.55

Deformation Behavior and Microstructure Evolution of 6063 Alloy during Hot Compression
p.63

HomeMaterials Science ForumMaterials Science Forum Vol. 913Bake Precipitation Behavior in AA5182 Sheet for...

Bake Precipitation Behavior in AA5182 Sheet for Can End Stock

Abstract:

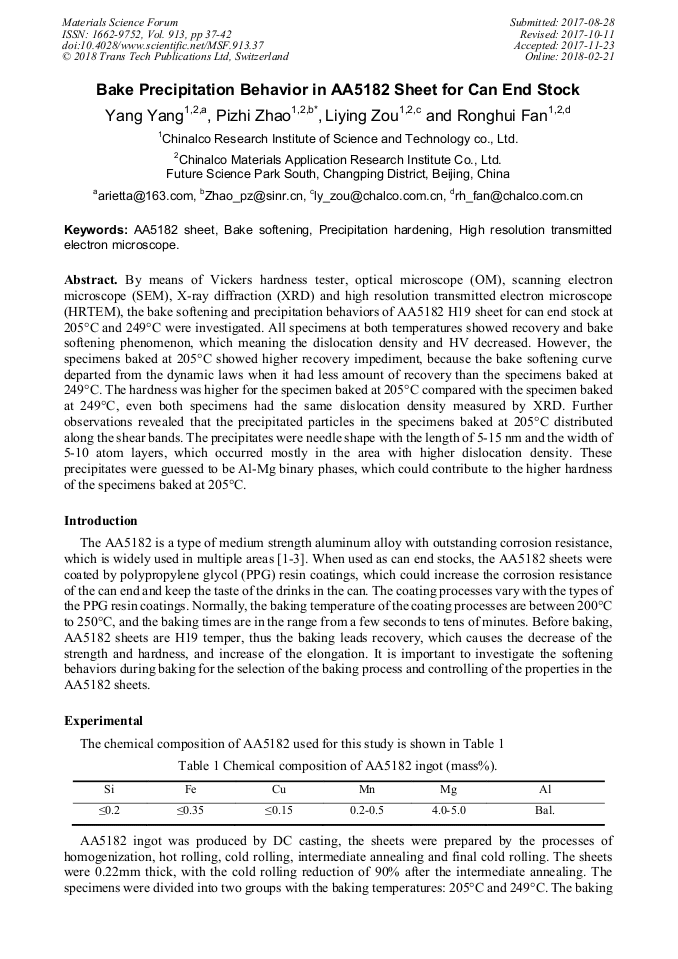

By means of Vickers hardness tester, optical microscope (OM), scanning electron microscope (SEM), X-ray diffraction (XRD) and high resolution transmitted electron microscope (HRTEM), the bake softening and precipitation behaviors of AA5182 H19 sheet for can end stock at 205°C and 249°C were investigated. All specimens at both temperatures showed recovery and bake softening phenomenon, which meaning the dislocation density and HV decreased. However, the specimens baked at 205°C showed higher recovery impediment, because the bake softening curve departed from the dynamic laws when it had less amount of recovery than the specimens baked at 249°C. The hardness was higher for the specimen baked at 205°C compared with the specimen baked at 249°C, even both specimens had the same dislocation density measured by XRD. Further observations revealed that the precipitated particles in the specimens baked at 205°C distributed along the shear bands. The precipitates were needle shape with the length of 5-15 nm and the width of 5-10 atom layers, which occurred mostly in the area with higher dislocation density. These precipitates were guessed to be Al-Mg binary phases, which could contribute to the higher hardness of the specimens baked at 205°C.

You might also be interested in these eBooks

Functional and Functionally Structured Materials II

View Preview

Info:

Periodical:

Materials Science Forum (Volume 913)

Pages:

37-42

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.913.37

Citation:

Cite this paper

Online since:

February 2018

Authors:

Yang Yang, Pi Zhi Zhao*, Li Ying Zou, Rong Hui Fan

Keywords:

AA5182 Sheet, Bake Softening, High Resolution Transmitted Electron Microscope, Precipitation Hardening

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M. Jobba, R.K. Mishra, M. Niewczas, Flow stress and work-hardening behaviour of Al–Mg binary alloys. International Journal of Plasticity, 65 (2015) 43-60.

DOI: 10.1016/j.ijplas.2014.08.006

Google Scholar

[2] J. Hirsch. Fundamentals of Aluminium Metallurgy, 719-746, Cambridge, (2011).

Google Scholar

[3] J. Wang, Y. Kang, C. Li, Phase diagram and phase equilibrium studies on ultra high temperature alloys of Nb-Si-Ti. Materials Science Forum, 849 (2016) 618-625.

DOI: 10.4028/www.scientific.net/msf.849.618

Google Scholar

[4] X. -Y. Liu, J.B. Adams, Grain-boundary segregation in Al–10%Mg alloys at hot working temperatures. Acta Materialia, 46 (1998) 3467-3476.

DOI: 10.1016/s1359-6454(98)00038-x

Google Scholar
