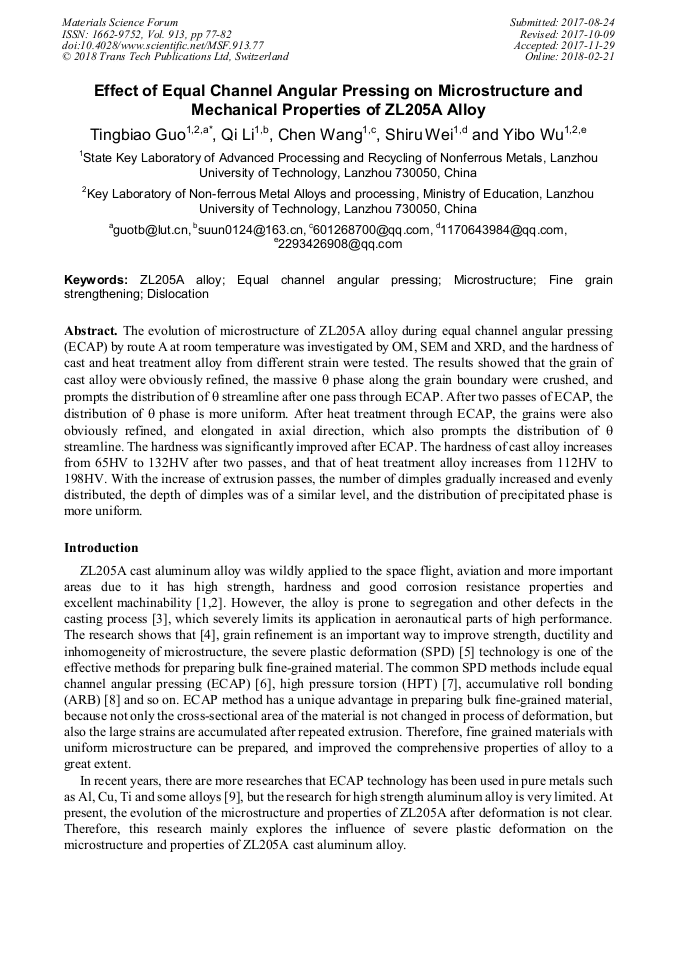

Effect of Equal Channel Angular Pressing on Microstructure and Mechanical Properties of ZL205A Alloy

Abstract:

The evolution of microstructure of ZL205A alloy during equal channel angular pressing (ECAP) by route A at room temperature was investigated by OM, SEM and XRD, and the hardness of cast and heat treatment alloy from different strain were tested. The results showed that the grain of cast alloy were obviously refined, the massive q phase along the grain boundary were crushed, and prompts the distribution of q streamline after one pass through ECAP. After two passes of ECAP, the distribution of q phase is more uniform. After heat treatment through ECAP, the grains were also obviously refined, and elongated in axial direction, which also prompts the distribution of q streamline. The hardness was significantly improved after ECAP. The hardness of cast alloy increases from 65HV to 132HV after two passes, and that of heat treatment alloy increases from 112HV to 198HV. With the increase of extrusion passes, the number of dimples gradually increased and evenly distributed, the depth of dimples was of a similar level, and the distribution of precipitated phase is more uniform.

• Periodical: Materials Science Forum (Volume 913)
• Pages: 77-82
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.913.77
• Online since: February 2018
• Authors: Ting Biao Guo*, Qi Li, Chen Wang, Shi Ru Wei, Yi Bo Wu
• Keywords: Dislocation, Equal Channel Angular Pressing (ECAP), Fine Grain Strengthening, Microstructure, ZL205A Alloy

References

[1] B. Li, Y. Shen, W. Hu, Casting defects induced fatigue damage in aircraft frames of ZL205A aluminum alloy-A failure analysis, Mater. Design. 32 (2011) 2570-2582.

DOI: 10.1016/j.matdes.2011.01.039

[2] J. H. Jang, D. G. Nam, Y. H. Park, Effect of solution treatment and artificial aging on microstructure and mechanical properties of Al-Cu alloy, T. Nonferr. Metal. Soc. 23 (2013) 631-635.

DOI: 10.1016/s1003-6326(13)62509-1

[3] P. Jia, Q. Wang. The key technology of a stand casting of high strength Al-Cu Alloy ZL205A, Rare. Metals. 73 (1999) 2332-2335.

[4] K. Lu, L. Lu, S. Suresh, Strengthening Materials by Engineering Coherent Internal Boundaries at the Nanoscale, Science. 324 (2009) 349-52.

DOI: 10.1126/science.1159610

[5] R. Z. Valiev, R. K. Islamgaliev, I. V. Alexandrov, Bulk nanostructured materials from severe plastic deformation, Prog. Mater. Sc. 45 (2000) 103-189.

DOI: 10.1016/s0079-6425(99)00007-9

[6] Y. Fukuda, K. Oh-Ishi, M. Furukawa, Influence of crystal orientation on ECAP of aluminum single crystals, Mater. Sci. Eng. A. 420 (2006) 79-86.

DOI: 10.1016/j.msea.2006.01.086

[7] S. V. Dobatkin, J. Gubicza, D. V. Shangina, High strength and good electrical conductivity in Cu-Cr alloys processed by severe plastic deformation, Mater. Let. 153 (2015) 5-9.

DOI: 10.1016/j.matlet.2015.03.144

[8] N. Takata, S. H. Lee, N. Tsuji, Ultrafine grained copper alloy sheets having both high strength and high electric conductivity, Mater. Let. 63 (2009) 1757-1760.

DOI: 10.1016/j.matlet.2009.05.021

[9] S. A. Torbati-Sarraf, R. Mahmudi. Microstructure and mechanical properties of extruded and ECAPed AZ31 Mg alloy, grain refined with Al-Ti-C master alloy, Mater. Sci. Eng. A. 527 (2010) 3515-3520.

DOI: 10.1016/j.msea.2010.02.035

[10] Y. S. Li, H. Zhai, Z. J. Feng, Formation law and criterion of nebulous macroscopic segregation in ZL205A alloy castings, China. Foundry. 5 (2008) 20-23.

[11] Y. Iwahashi, J. Wang, Z. Horita, Principle of equal-channel angular pressing for the processing of ultra-fine grained materials, Scripta. Mater. 35 (1996) 143-146.

DOI: 10.1016/1359-6462(96)00107-8

[12] T. B. Guo, Y. T. Ding, X. F. Yuan, Microstructure and Orientation Evolution of Unidirectional Solidification Pure Copper during ECAP, Rare. Metal. Mat. Eng. 40 (2011) 171-175.

[13] X. B. Yun, B. Y. Song, L. Chen, Ultra-fine grain copper prepared by continuous equal channel angular press, Chin. J. Nonferrous. Met. 16 (2006) 1563-1569.

[14] V. Yamakov, D. Wolf, M. Salazar, Length-scale effects in the nucleation of extended dislocations in nanocrystalline Al by molecular-dynamics simulation, Acta. Metall. Sin. 49 (2001) 2713-2722.

DOI: 10.1016/s1359-6454(01)00167-7
