HomeMaterials Science ForumMaterials Science Forum Vol. 913Effects of Rare Earth Y Addition on...

Effects of Rare Earth Y Addition on Microstructural and Properties of Pure Copper

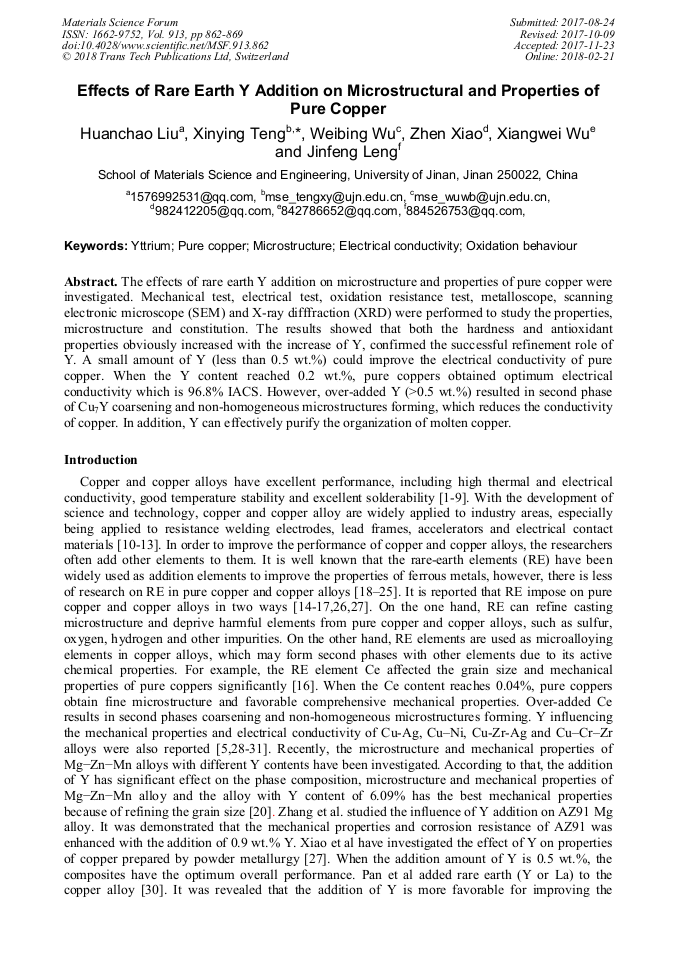

Article Preview

Abstract:

The effects of rare earth Y addition on microstructure and properties of pure copper were investigated. Mechanical test, electrical test, oxidation resistance test, metalloscope, scanning electronic microscope (SEM) and X-ray difffraction (XRD) were performed to study the properties, microstructure and constitution. The results showed that both the hardness and antioxidant properties obviously increased with the increase of Y, confirmed the successful refinement role of Y. A small amount of Y (less than 0.5 wt.%) could improve the electrical conductivity of pure copper. When the Y content reached 0.2 wt.%, pure coppers obtained optimum electrical conductivity which is 96.8% IACS. However, over-added Y (>0.5 wt.%) resulted in second phase of Cu₇Y coarsening and non-homogeneous microstructures forming, which reduces the conductivity of copper. In addition, Y can effectively purify the organization of molten copper.

You might also be interested in these eBooks

Functional and Functionally Structured Materials II

Info:

Periodical:

Materials Science Forum (Volume 913)

Pages:

862-869

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.913.862

Citation:

Cite this paper

Online since:

February 2018

Authors:

Huan Chao Liu, Xin Ying Teng*, Wei Bing Wu, Zhen Xiao, Xiang Wei Wu, Jin Feng Leng

Keywords:

Electrical Conductivity, Microstructure, Oxidation Behaviour, Pure Copper, Yttrium

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2018 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] M.S. Motta, P.K. Jena, E.A. Brocchi, I.G. Solorzano, Characterization of Cu-Al2O3 nano-scale composites synthesized by in situ reduction, Mater. Sci. Eng. C. 15 (2001) 175-177.

DOI: 10.1016/s0928-4931(01)00272-7

[2] Z.Q. Xiang, Z. Li, Q. Lei, Z. Xiao, Y. Pang, Trans. Nonferr. Metal Soc. China. 25 (2015) 444-450.

[3] F. Cao, G. H. Wu, L. T. Jiang, G. Q. Chen, Application of Cu-C and Cu-V alloys in barrier-less copper metallization, Vacuum 122 (2015) 122-126.

DOI: 10.1016/j.vacuum.2015.09.011

[4] Z. W. Wu, J. D. Zhang, Y. Chen, L. Meng, J. Rare Earths. 27 (2009) 87-91.

[5] J.B. Liu, L. Zhang, L. Meng. Effects of rare-earth additions on the microstructure and strength of Cu-Ag composites. Mater. Sci. Eng. A. 498 (2008) 392-396.

DOI: 10.1016/j.msea.2008.08.014

[6] Y. Pang, C.D. Xia, M.P. Wang, Z. Li, Z. Xiao, H.G. Wei, X.F. Sheng, Y.L. Jia, C. Chen, J. Alloys and Compd. 582 (2014) 786-792.

[7] Y.X. Sun, Y.B. Ren, K. Yang, New preparation method of micronporous copper through physical vacuum dealloying of Cu-Zn alloys, Mate. Lett. 165 (2016) 1-4.

DOI: 10.1016/j.matlet.2015.11.102

[8] J.L. Liu, H.Y. Huang, J.X. Xie, Mater. Design. 85 (2015) 211-220.

[9] L. Zhang, L. Meng. Microstructure and properties of Cu-Ag, Cu-Ag-Cr and Cu-Ag-Cr-RE alloys. Mater. Sci. Technol. 19 (2003) 75-83.

DOI: 10.1179/026708303225008617

[10] Y.M. Shabana, B.L. Karihaloo, H.X. Zhu, S. Kulasegaram, Compos. A Appl. Sci. Manuf. 46 (2013) 140-146.

[11] Q. Fang, Z.X. Kang, Y.W. Gan, Y. Long, Mater. Design. 88 (2015) 8–15.

[12] Z. Mu, H.R. Geng, M.M. Li, G.L. Nie, J.F. Leng, Effects of Y2O3 on the property of copper based contact materials, Compos. B Eng. 52 (2013) 51-55.

DOI: 10.1016/j.compositesb.2013.02.036

[13] S.S. Feng, H.R. Geng, Z.Q. Guo, Effect of lubricants on warm compaction process of Cu-based composite, Compos. B Eng. 43 (2012) 933-939.

DOI: 10.1016/j.compositesb.2011.09.004

[14] H.Q. Li, S.S. Xie, X.J. Mi, Y. Liu, P.Y. Wu, L. Cheng, Influence of Cerium and Yttrium on Cu-Cr-Zr Alloys, J. Rare Earths. 24 (2006) 367-371.

DOI: 10.1016/s1002-0721(07)60403-7

[15] J.B. Liu, Y.W. Zeng, L. Meng. Crystal structure and morphology of a rare-earth compound in Cu-12 wt. % Ag, J. Alloys Compd. 468 (2009) 73-76.

DOI: 10.1016/j.jallcom.2007.12.070

[16] Z.F. Zhang, G.Y. Lin, S.H. Zhang, J. Zhou, Effects of Ce on microstructure and mechanical properties of pure copper, Mater. Sci. Eng. A 457 (2007) 313-318.

DOI: 10.1016/j.msea.2006.12.056

[17] Y. Chen, M. Cheng, H.W. Song, S.H. Shang, J.S. Liu, Y. Zhu, Effects of lanthanum addition on microstructure and mechanical properties of as-cast pure copper, J. Rare Earths. 32 (2014) 1056-1063.

DOI: 10.1016/s1002-0721(14)60183-6

[18] H.W. Jiang, J. Li, H.R. Geng, Q.L. Wang, Influence of cooling rate and addition of lanthanum and cerium onformation of nanoporous copper by chemical dealloying of Cu15Al85 alloy, J. Rare Earths. 31 (2013) 1119-1123.

DOI: 10.1016/s1002-0721(12)60414-1

[19] D.H. Xiao, J.N. Wang, D.Y. Ding, H.L. Yang, Effect of rare earth Ce addition on the microstructure and mechanical properties of an Al-Cu-Mg-Ag alloy, J. Alloys Compd. 352 (2003) 84–88.

DOI: 10.1016/s0925-8388(02)01162-3

[20] F.G. Qi, D.F. Zhang, X.H. Zhang, F.S. Pan, Effect of Y addition on microstructure and mechanical properties of Mg-Zn-Mn alloy, Trans. Nonferrous Met. Soc. China. 24 (2014) 1352-1364.

DOI: 10.1016/s1003-6326(14)63199-x

[21] M.B. Yang, M.D. Hou, J. Zhang, F.S. Pan, Effects of Ce, Y and Gd additions on as-cast microstructure and mechanical properties of Mg-3Sn-2Sr magnesium alloy, Trans. Nonferrous Met. Soc. China. 24(2014) 2497−2506.

DOI: 10.1016/s1003-6326(14)63376-8

[22] H.C. Pan, Y.P. Ren, H. Fu, H. Zhao, L.Q. Wang, X.Y. Meng, G.W. Qin, Recent developments in rare-earth free wrought magnesium alloys having high strength: A review, J. Alloys Compd. 663 (2016) 321-331.

DOI: 10.1016/j.jallcom.2015.12.057

[23] R.S. Maurya, T. Laha, Effect of Rare Earth and Transition Metal Elements on the Glass Forming Ability of Mechanical Alloyed Al–TM–RE Based Amorphous Alloys, J. Mater. Sci. & Tech. 31 (2015) 1118–1124.

DOI: 10.1016/j.jmst.2015.09.007

[24] Z.M. Shi, K. Gao, Y.T. Shi, Y. Wang, Microstructure and mechanical properties of rare-earth-modified Al-1Fe binary alloys, Mater. Sci. Eng. A 632 (2015) 62-71.

DOI: 10.1016/j.msea.2015.02.068

[25] Y. Lu, Q.D. Wang, X.Q. Zeng, Effects of rare earths on the microstructure, properties and fracture behavior of Mg-Al alloys, Mater. Sci. Eng. A 278 (2000) 66-76.

DOI: 10.1016/s0921-5093(99)00604-8

[26] S. Mula, D. Setman, K. Youssef, R.O. Scattergood, C. Koch, Structural evolution of Cu(1-X)YX alloys prepared by mechanical alloying: Their thermal stability and mechanical properties, J. Alloys Compd. 627 (2015) 108-116.

DOI: 10.1016/j.jallcom.2014.12.114

[27] Z. Xiao, H.R. Geng, C.Y. Sun, P. Jia, H. Luo, Effect of yttrium on properties of copper prepared by powder metallurgy, Adv. Powder Technol. 26 (2015) 1079-1086.

DOI: 10.1016/j.apt.2015.05.003

[28] X.Y. Mao, F. Fang, J. Q Jiang, R.S. Tan, Effect of rare earths on corrosion resistance of Cu-30Ni alloys in simulated seawater, J. Rare Earths. 27 (2009) 1037-1041.

DOI: 10.1016/s1002-0721(08)60384-1

[29] D. Janovszky, K. Tomolya, M. Sveda, A. Sycheva, G. Kaptay, Effect of Y and Ni addition on liquid immiscibility in Cu-Zr-Ag ternary Alloys, J. Alloys Compd. 615 (2014) 616-620.

DOI: 10.1016/j.jallcom.2013.12.087

[30] Z.Y. Pan, J.B. Chen, J.F. Li, Microstructure and properties of rare earth-containing Cu-Cr-Zr alloy, Trans. Nonferrous Met. Soc. China. 25(2015) 1206-1214.

DOI: 10.1016/s1003-6326(15)63717-7

[31] W. Wang, R.G. Li, C.L. Zou, Z.N. Chen, W. Wen, T.M. Wang, G.M. Yin, Effect of direct current pulses on mechanical and electrical properties of aged Cu-Cr-Zr alloys, Mater. Design 92 (2016) 135-142.

DOI: 10.1016/j.matdes.2015.12.013

[32] H. Okamoto, Cu-Y (copper-yttrium), J. Phase Equilib. 13 (1992) 102-103.

[33] M.D. Sanderson, J.C. Scully, Room temperature oxidation of Cu and some Cu alloys, Corros. Sci. 10 (1970) 55-57.

DOI: 10.1016/s0010-938x(70)80098-1

[34] S.K. Roy, P.K. Krishnamoorthy, S.C. Sircar, Kinetics of oxidation of copper at low temperatures under the influence of externally induced current flow, Acta Metall. 18 (1970) 519-529.

DOI: 10.1016/0001-6160(70)90139-2

[35] L. Yuan, X.M. Chen, S. Maganty, J. Cho, C.H. Ke, G.W. Zhou, Enhancing the oxidation resistance of copper by using sandblasted copper surfaces, Appl. Surf. Sci. 357 (2015) 2160-2168.

DOI: 10.1016/j.apsusc.2015.09.203
