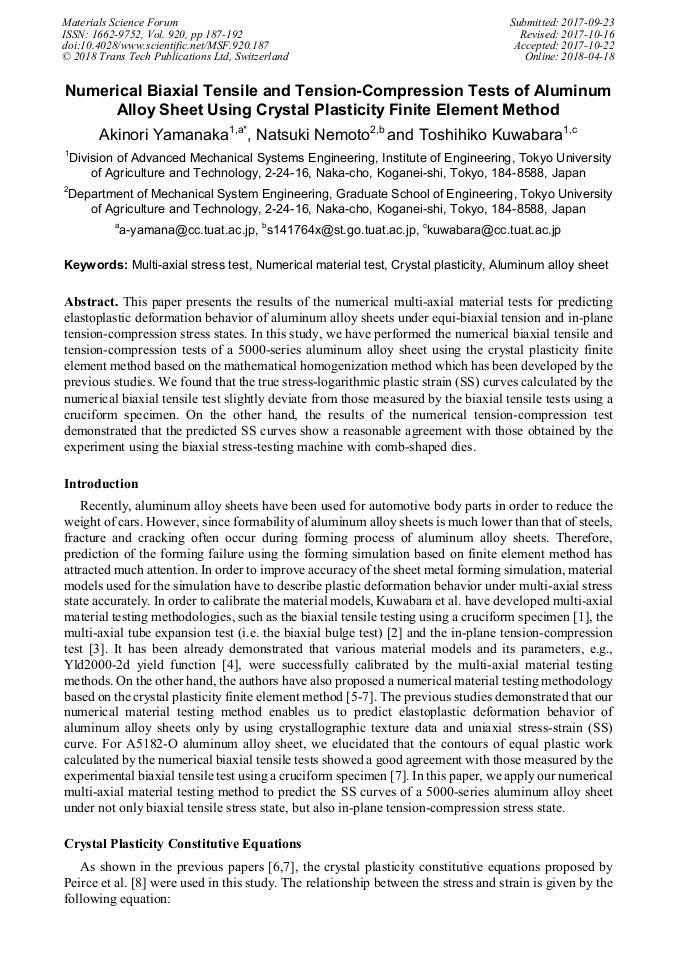

Numerical Biaxial Tensile and Tension-Compression Tests of Aluminum Alloy Sheet Using Crystal Plasticity Finite Element Method

Abstract:

This paper presents the results of the numerical multi-axial material tests for predicting elastoplastic deformation behavior of aluminum alloy sheets under equi-biaxial tension and in-plane tension-compression stress states. In this study, we have performed the numerical biaxial tensile and tension-compression tests of a 5000-series aluminum alloy sheet using the crystal plasticity finite element method based on the mathematical homogenization method which has been developed by the previous studies. We found that the true stress-logarithmic plastic strain (SS) curves calculated by the numerical biaxial tensile test slightly deviate from those measured by the biaxial tensile tests using a cruciform specimen. On the other hand, the results of the numerical tension-compression test demonstrated that the predicted SS curves shows a reasonable agreement with those obtained by the experiment using the biaxial stress-testing machine with comb-shaped dies.

• Periodical: Materials Science Forum (Volume 920)
• Pages: 187-192
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.920.187
• Online since: April 2018
• Authors: Akinori Yamanaka*, Natsuki Nemoto, Toshihiko Kuwabara
• Keywords: Aluminum Alloy Sheet, Crystal Plasticity, Multi-Axial Stress Test, Numerical Material Testing

References

[1] T. Kuwabara, Advances in experiments on metal sheets and tubes in support of constitutive modeling and forming simulations, Int. J. Plasticity, 23 (2007), 385-419.

DOI: 10.1016/j.ijplas.2006.06.003

[2] T. Kuwabara, F. Sugawara, Multiaxial tube expansion test method for measurement of sheet metal deformation behavior under biaxial tension for a large strain range, Int. J. Plasticity, 45 (2013), 103-118.

DOI: 10.1016/j.ijplas.2012.12.003

[3] T. Kuwabara, Y. Horiuchi, N. Uema, J. Ziegelheimova, Material testing method of applying in-plane combined tension-compression stresses to sheet specimen, J. Jpn. Soc. Tech. Plast., 48 (2007), 630-634.

DOI: 10.9773/sosei.48.630

[4] F. Barlat, J. C. Brem, J. W. Yoon, K. Chung, R. E. Dick, D. J. Lege, F. Pourboghrat, S. –H. Choi, E. Chu, Plane stress yield function for aluminum alloy sheets-part 1: theory, Int. J. Plasticity, 19 (2003), 1297-2319.

DOI: 10.1016/s0749-6419(02)00019-0

[5] K. Hashimoto, A. Yamanaka, J. Kawaguchi, T. Sakurai, T. Kuwabara, Biaxial tensile deformation simulation of 5000 series aluminum alloy sheet using crystal plasticity finite element method based on homogenization method and its experimental validation, J. Jpn. Inst. Light Met., 65 (2015).

DOI: 10.2464/jilm.65.196

[6] A. Yamanaka, Identification of Yield Function for 5000 series aluminum alloy sheet by numerical biaxial tensile testing using homogenized crystal plasticity finite element method, Contributed Papers from MS&T2015, (2015), 603-609.

DOI: 10.4028/www.scientific.net/msf.920.187

[7] A. Yamanaka, Y. Ishii, T. Hakoyama, P. Eyckens, T. Kuwabara, Numerical biaxial tensile test for sheet metal forming simulation of aluminum alloy sheets based on the homogeneous crystal plasticity finite element method, J. Phys: Conference Series, 734 (2016).

DOI: 10.1088/1742-6596/734/3/032005

[8] D. Peirce, R. J. Asaro, A. Needleman, An analysis of nonuniform and localized deformation in ductile single crystals, Acta Metal., 30 (1983), 1087-1119.

DOI: 10.1016/0001-6160(82)90005-0

[9] J. Pan and J.R. Rice, Rate sensitivity of plastic flow and implications for yield-surface vertices, Int. J. Solid Struct., 19 (1983), 973-987.

DOI: 10.1016/0020-7683(83)90023-9

[10] S. Graff, W. Brocks, D. Steglich, Yielding of magnesium: From single crystal to polycrystalline aggregates, Int. J. Plasticity, 23 (2007), 1957-(1978).

DOI: 10.1016/j.ijplas.2007.07.009

[11] J. M. Guedes, N. Kikuchi, Preprocessing and postprocessing for materials based on the homogenization method with adaptive finite element method, Comput. Meth. Appl. Mech. Eng., 83 (1990) 143-198.

DOI: 10.1016/0045-7825(90)90148-f

[12] T. Kuwabara, S. Ikeda, K. Kuroda, Measurement and analysis of differential work hardening in cold-rolled steel sheet under biaxial tension, J. Mater. Proc. Technol., 80-81 (1998), 517-523.

DOI: 10.1016/s0924-0136(98)00155-1
