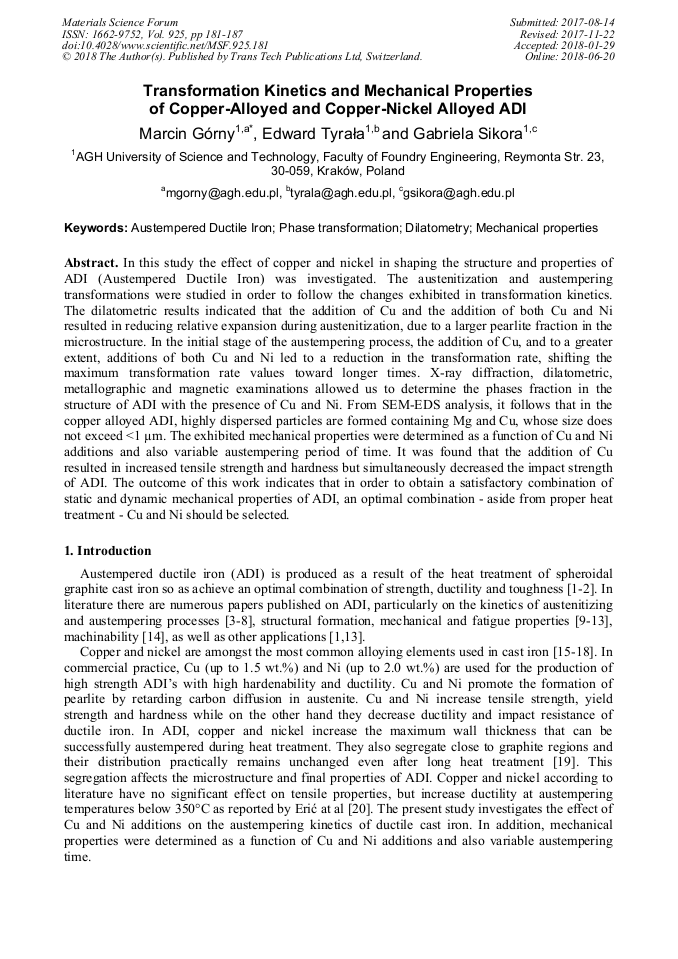

Transformation Kinetics and Mechanical Properties of Copper-Alloyed and Copper-Nickel Alloyed ADI

Abstract:

In this study the effect of copper and nickel in shaping the structure and properties of ADI (Austempered Ductile Iron) was investigated. The austenitization and austempering transformations were studied in order to follow the changes exhibited in transformation kinetics. The dilatometric results indicated that the addition of Cu and the addition of both Cu and Ni resulted in reducing relative expansion during austenitization, due to a larger pearlite fraction in the microstructure. In the initial stage of the austempering process, the addition of Cu, and to a greater extent, additions of both Cu and Ni led to a reduction in the transformation rate, shifting the maximum transformation rate values toward longer times. X-ray diffraction, dilatometric, metallographic and magnetic examinations allowed us to determine the phases fraction in the structure of ADI with the presence of Cu and Ni. From SEM-EDS analysis, it follows that in the copper alloyed ADI, highly dispersed particles are formed containing Mg and Cu, whose size does not exceed <1 µm. The exhibited mechanical properties were determined as a function of Cu and Ni additions and also variable austempering period of time. It was found that the addition of Cu resulted in increased tensile strength and hardness but simultaneously decreased the impact strength of ADI. The outcome of this work indicates that in order to obtain a satisfactory combination of static and dynamic mechanical properties of ADI, an optimal combination - aside from proper heat treatment - Cu and Ni should be selected.

• Periodical: Materials Science Forum (Volume 925)
• Pages: 181-187
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.925.181
• Online since: June 2018
• Authors: Marcin Górny*, Edward Tyrała, Gabriela Sikora
• Keywords: Austempered Ductile Iron (ADI), Dilatometry, Mechanical Properties, Phase Transformations

References

[1] B.N. Olson, K.B. Moore, and G.R. Simula, Potential for Practical Applications of Ausforming Austempered Ductile Iron, AFS Trans., 111, (2002) 965–982.

[2] M.M. Cisneros-Guerrer, R.E. Campos-Cambranis, M. Castro-Román, and M.J. Pérez-López, Austempering Kinetics in Cu-Mo Alloyed Ductile Iron: A Dilatometric Study, Adv. Mater. Res., 4-5 (1997) 415–420.

DOI: 10.4028/www.scientific.net/amr.4-5.415

[3] M.M. Cisneros, M.J. Pérez, R.E. Campos, and E. Valdés, The role of Cu, Mo and Ni on the kinetics of the bainitic reaction during the austempering of ductile irons, Int. J. Cast Met. Res. 11 (1999) 425–430.

DOI: 10.1080/13640461.1999.11819311

[4] D.J. Moore, J.R. Parolini, and K.B. Rundman, Effect of manganese on structure and properties of austempered ductile iron: a processing window concept, AFS Trans., 111 (2002) 911–930.

[5] D. Venugopalan, A kinetic model of the γ → α + Gr eutectoid transformation in spheroidal graphite cast irons, Metall. Trans. A, 21 (1990) 913–918.

DOI: 10.1007/bf02656575

[6] K.F. Laneri, J. Desimoni, R.C. Mercader, R.W. Gregorutti, and J.L. Sarutti, Thermal Dependence of Austempering TransformationKinetics of Compacted Graphite Cast Iron, Metall. Mater. Trans. A, 32 (2001) 51–58.

DOI: 10.1007/s11661-001-0250-3

[7] S.M. Butorabi and A.A. Fallah, Austempering kinetics of low carbon-aluminium cast iron, AFS Trans., 105 (1997) 757–761.

[8] K.L. Hayrynen and K.R. Brandenberg: Carbidic Austempered Ductile Iron ( CADI)- the New Wear Material, AFS Trans., 111 (2003) 845–850.

[9] J. Mallia and M. Grech, Efect of silicon content on impact properties of austempered ductile iron, Mater. Sci. Technol., 13 (1997) 408–414.

DOI: 10.1179/mst.1997.13.5.408

[10] N. Darwish and R. Elliott, Austempering of low manganese ductile irons: part 1 processing window, Mater. Sci. Technol., 9 (1993) 882–889.

DOI: 10.1179/mst.1993.9.10.882

[11] S. Biswas, Ch. Monroe, and T. Prucha, Use of Published Experimental Results to Validate Approaches to Gray and Ductile Iron Mechanical Properties Prediction, Int. J. Met. (2017) 1–19.

DOI: 10.1007/s40962-016-0126-3

[12] F. Zanardi, Fatigue properties and machinability of ADI, Metall. Ital. 10 (2005) 27–32.

[13] J.R. Keough, K.L. Hayrynen, and G.L. Pioszak, Designing with Austempered Ductile Iron (ADI), AFS Procedings 10 (2010) 1–15.

[14] F. Zanardi, Machinable ADI in Italy, AFS Trans. 113 (2005) 835–847.

[15] M. Górny, E. Tyrała, and H.F. Lopez, Effect of Copper and Nickel on the Transformation Kinetics of Austempered Ductile Iron, J. Mater. Eng. Perform. 23 (2014) 3505–3510.

DOI: 10.1007/s11665-014-1167-5

[16] U. Batra, S. Ray, and S.R. Prabhakar, The influence of nickel and copper on the austempering of ductile iron, J. Mater. Eng. Perform. 13 (2004) 64–68.

DOI: 10.1361/10599490417515

[17] K. Osamura, H. Okuda, S. Ochiai, M. Takashima, K. Asano, M. Furusaka, K. Kishida, and F. Kurosawa, Precipitation Hardening in Fe-Cu Binary and Quaternary Alloys, ISIJ Int. 34 (1994) 359–65.

DOI: 10.2355/isijinternational.34.359

[18] M. Tsujikawa, N. Matsumoto, K. Nakamoto, and Y. Michiura, Pearlite Stabilisation by Copper on Ductile Cast Iron, Key Eng. Mater. 457 (2010) 151–156.

DOI: 10.4028/www.scientific.net/kem.457.151

[19] M. Nili-Ahmadabadi and M. Mosallaiee-Pour, Homogenization of ductile iron using partialmelting aided by modeling, Mater. Sci. Eng. A 373 (2004) 309–14.

DOI: 10.1016/j.msea.2004.02.004

[20] O. Erić, D. Rajnović, S. Zec, L. Sidjanin, and M.T. Jovanović, Microstructure and fracture of alloyed austempered ductile iron, Mater. Charact. 57 (2006) 211–17.

DOI: 10.1016/j.matchar.2006.01.014

[21] E. Tyrała, Phase Composition Using a Variable Magnetic Field, ISIJ Int. 54 (2014) 700–703.

DOI: 10.2355/isijinternational.54.700

[22] M. Górny, E. Tyrała, G. Sikora, and Ł. Rogal, Identification of Mg2Cu Particles in Cu Alloyed Austempered Ductile Iron, Met. Mater. Int. 24 (2018) (in print).

DOI: 10.1007/s12540-017-7234-3
