Crystallography of Growth Blocks in Spheroidal Graphite

Article Preview

Abstract:

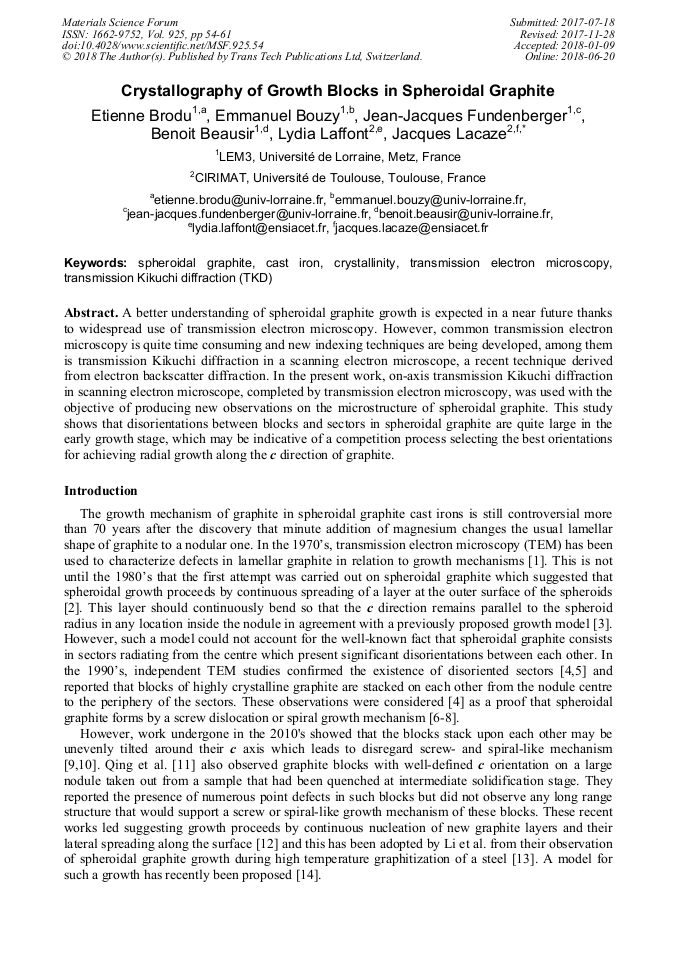

A better understanding of spheroidal graphite growth is expected in a near future thanks to widespread use of transmission electron microscopy. However, common transmission electron microscopy is quite time consuming and new indexing techniques are being developed, among them is transmission Kikuchi diffraction in a scanning electron microscope, a recent technique derived from electron backscatter diffraction. In the present work, on-axis transmission Kikuchi diffraction in scanning electron microscope, completed by transmission electron microscopy, was used with the objective of producing new observations on the microstructure of spheroidal graphite. This study shows that disorientations between blocks and sectors in spheroidal graphite are quite large in the early growth stage, which may be indicative of a competition process selecting the best orientations for achieving radial growth along the c direction of graphite.

By email View Pdf

You have full access to the following eBook

Science and Processing of Cast Iron XI

Info:

Periodical:

Materials Science Forum (Volume 925)

Pages:

54-61

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.925.54

Citation:

Cite this paper

Online since:

June 2018

Authors:

Etienne Brodu, Emmanuel Bouzy, Jean Jacques Fundenberger, Benoit Beausir, Lydia Laffont, Jacques Lacaze*

Keywords:

Cast Iron, Crystallinity, Spheroidal Graphite, Transmission Electron Microscopy, Transmission Kikuchi Diffraction (TKD)
