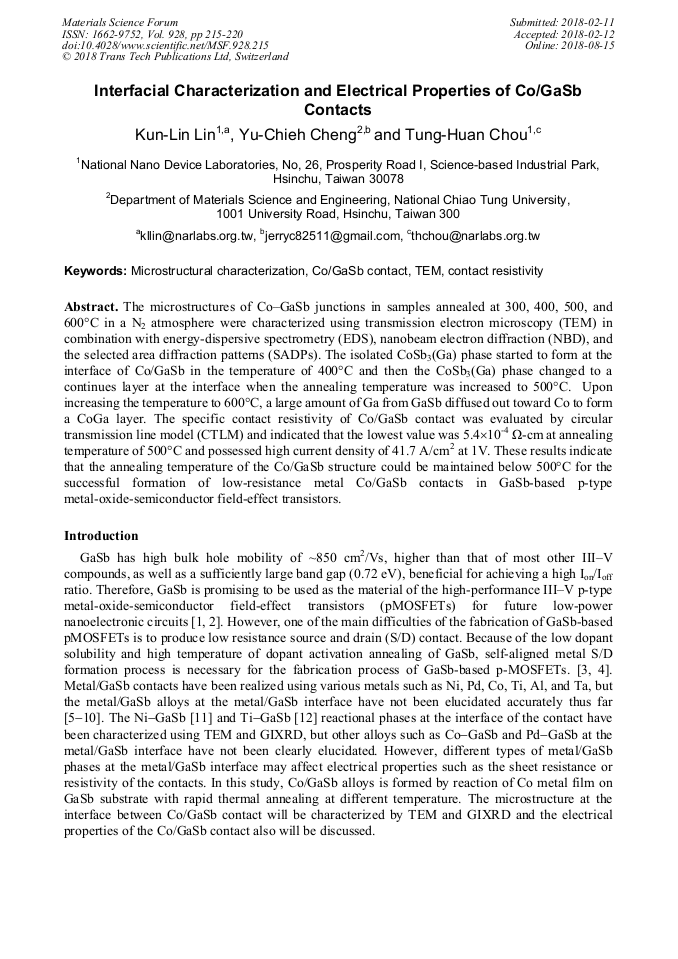

Interfacial Characterization and Electrical Properties of Co/GaSb Contacts

Abstract:

The microstructures of Co–GaSb junctions in samples annealed at 300, 400, 500, and 600°C in a N₂ atmosphere were characterized using transmission electron microscopy (TEM) in combination with energy-dispersive spectrometry (EDS), nanobeam electron diffraction (NBD), and the selected area diffraction patterns (SADPs). The isolated CoSb₃(Ga) phase started to form at the interface of Co/GaSb in the temperature of 400°C and then the CoSb₃(Ga) phase changed to a continues layer at the interface when the annealing temperature was increased to 500°C. Upon increasing the temperature to 600°C, a large amount of Ga from GaSb diffused out toward Co to form a CoGa layer. The specific contact resistivity of Co/GaSb contact was evaluated by circular transmission line model (CTLM) and indicated that the lowest value was 5.410^-4 Ω-cm at annealing temperature of 500°C and possessed high current density of 41.7 A/cm² at 1V. These results indicate that the annealing temperature of the Co/GaSb structure could be maintained below 500°C for the successful formation of low-resistance metal Co/GaSb contacts in GaSb-based p-type metal-oxide-semiconductor field-effect transistors.

• Periodical: Materials Science Forum (Volume 928)
• Pages: 215-220
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.928.215
• Online since: August 2018
• Authors: Kun Lin Lin*, Yu Chieh Cheng, Tung Huan Chou
• Keywords: Co/GaSb Contact, Contact Resistivity, Microstructural Characterization, TEM

References

[1] Dutta P S, Bhat H L, and Kumar V 1997 J. Appl. Phys. 81 5821.

[2] Boos J, Yang M, Bennett B, Park D, Kruppa D, and Bass R 1999 Electron. Lett. 35 847.

[3] Yokoyama M, Nishi K, Kim S, Yokoyama H, Takenaka M, and Takagi S 2014 Appl. Phys. Lett. 104, 093509.

DOI: 10.1063/1.4867262

[4] Xu M, Wang R, and Ye P D 2011 IEEE Electron Device Lett. 32, 883.

[5] Nishi K, Yokoyama M, Kim S, Yokoyama H, Takenaka M, and Takagi S 2014 J. Appl. Phys. 115, 034515.

[6] Zota C B, Kim S, Yokoyama M, Takenaka M, and Takagi S 2012 Appl. Phys. Express 5 071201.

[7] Rahimi N, Aragon A A, Romero O S, Shima D M, Rotter T J, Mukherjee S D, Balakrishnan G, and Lester L F 2013 APL Materials 1, 062105.

DOI: 10.1063/1.4842355

[8] Huang W C, Lin T C, Horng C T, and Li Y H 2013 Mater. Sci. Semicond. Process. 16, 418.

[9] Yokoyama M, Nishi K, Kim S, Yokoyama H, Takenaka M, and Takagi S 104 Appl. Phys. Lett. 104, 093509.

DOI: 10.1063/1.4867262

[10] Guivarc'h A, Caulet J, Minier M, Clanche M C L, Deputier S, and Guérin R 1994 J. Appl. Phys. 75, 5061.

[11] Lin K L and Chen S H 2014 Applied Physics Letters, 105, 141603.

[12] Lin K L and Chen S H 2016 J. Electron. Mater., 45.

[11] 5679.
