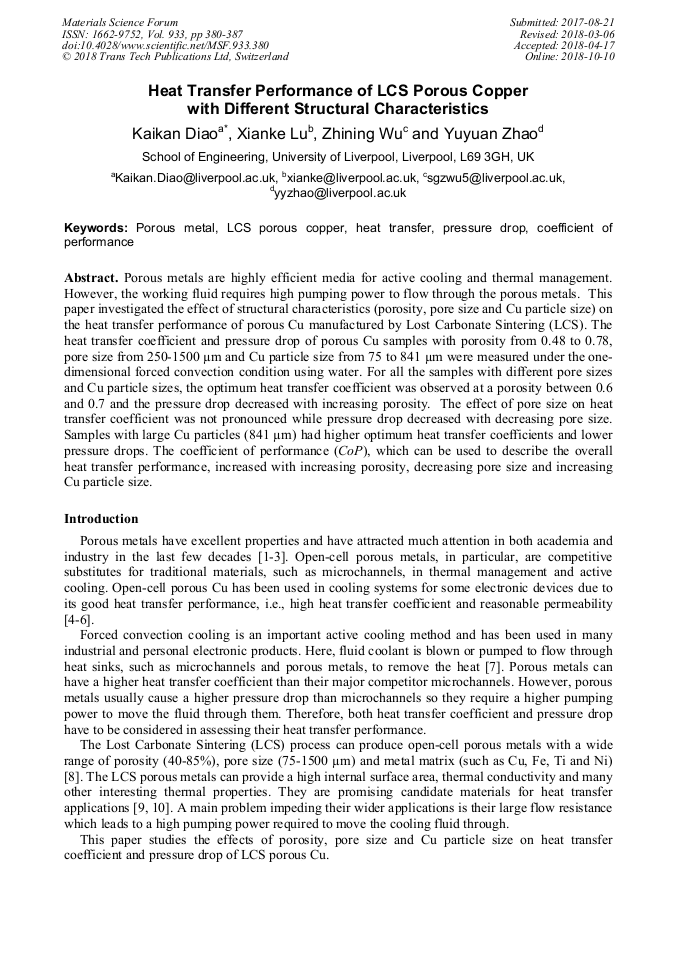

Heat Transfer Performance of LCS Porous Copper with Different Structural Characteristics

Abstract:

Porous metals are highly efficient media for active cooling and thermal management. However, the working fluid requires high pumping power to flow through the porous metals. This paper investigated the effect of structural characteristics (porosity, pore size and Cu particle size) on the heat transfer performance of porous Cu manufactured by Lost Carbonate Sintering (LCS). The heat transfer coefficient and pressure drop of porous Cu samples with porosity from 0.48 to 0.78, pore size from 250-1500 μm and Cu particle size from 75 to 841 μm were measured under the one-dimensional forced convection condition using water. For all the samples with different pore sizes and Cu particle sizes, the optimum heat transfer coefficient was observed at a porosity between 0.6 and 0.7 and the pressure drop decreased with increasing porosity. The effect of pore size on heat transfer coefficient was not pronounced while pressure drop decreased with decreasing pore size. Samples with large Cu particles (841 μm) had higher optimum heat transfer coefficients and lower pressure drops. The coefficient of performance (CoP), which can be used to describe the overall heat transfer performance, increased with increasing porosity, decreasing pore size and increasing Cu particle size.

• Periodical: Materials Science Forum (Volume 933)
• Pages: 380-387
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.933.380
• Online since: October 2018
• Authors: Kai Kan Diao*, Xian Ke Lu, Zhi Ning Wu, Yu Yuan Zhao
• Keywords: Coefficient of Performance, Heat Transfer, LCS Porous Copper, Porous Metal, Pressure Drop

References

[1] L.J. Gibson, M.F. Ashby, Cellular Solids: Structure and Properties, second ed., Cambridge: Cambridge University Press, (1999).

[2] M. Ashby, Metal Foams: A Design Guide, Boston: Butterworth-Heinemann, (2000).

[3] J. Banhart, Manufacture, Characterisation and Application of Cellular Metals and Metal foams, Prog. Mater. Sci., 46 (2001) 559.

DOI: 10.1016/s0079-6425(00)00002-5

[4] A.J. Fuller, T. Kim, H.P. Hodson, T.J. Lu, Measurement and Interpretation of the Heat Transfer Coefficients of Metal Foams, Proc. IMechE, 219 (2005) 183-191.

[5] G. Hetsroni, M. Gurevich, R. Rozenblit, Sintered Porous medium Heat Sink for Cooling of High-power Mini-devices, Int. J. Heat Fluid Fl., 27 (2006) 259-266.

DOI: 10.1016/j.ijheatfluidflow.2005.08.005

[6] K. Boomsma, D. Poulikakos, F. Zwick, Metal Foams as Compact High Performance Heat Exchangers, Mech. Mater., 35 (2003) 1161-1176.

DOI: 10.1016/j.mechmat.2003.02.001

[7] M. Wong, I. Owen, C.J. Sutcliffe, A. Puri, Convective Heat Transfer and Pressure Losses across Novel Heat Sinks Fabricated by Selective Laser Melting, Int. J. Heat Mass Tran., 52 (2009) 281-288.

DOI: 10.1016/j.ijheatmasstransfer.2008.06.002

[8] Y.Y. Zhao, T. Fung, L.P. Zhang, Lost Carbonate Sintering Prosciee for Manufacturing Metal Foams, Scr. Mater., 52 (2005) 295.

DOI: 10.1016/j.scriptamat.2004.10.012

[9] L.P. Zhang, D. Muulen, K. Lynn, Y.Y. Zhao, Heat transfer performance of porous copper fabricated by the Lost Carbonate Sintering process, Mater. Res. Soc. Symp. Proc., 1188 (2009) 07.

DOI: 10.1557/proc-1188-ll04-07

[10] Z. Xiao, Y.Y. Zhao, Heat transfer coefficient of porous copper with homogeneous and hybrid structures in active cooling, J. Mater. Res., 28 (2013) 2545.

DOI: 10.1557/jmr.2013.190

[11] Z. Xiao, Y.Y. Zhao, Thermal properties of porous copper manufactured by lost carbonate sintering, Mater. Sci. Forum,783-786 (2014) 1603-1608.

DOI: 10.4028/www.scientific.net/msf.783-786.1603

[12] W. Zhou, Y. Tang, M. Pan, X. Wei, H. Chen, J. Xiang, A performance study of methanol steam reforming microreactor with porous copper fiber sintered felt as catalyst support for fuel cells, Int. J. Hydrogen Energ., 34 (2009) 9745-9753.

DOI: 10.1016/j.ijhydene.2009.10.009

[13] W. Zhou, Q. Wang, Q. Qiu, Y. Tnag, J. Tu, K.S. Hui, K.N. Hui, Heat and mass transfer characterization of porous copper fiber sintered felt as catalyst support for methanol steam reforming, Fuel, 145 (2015) 136-142.

DOI: 10.1016/j.fuel.2014.12.042

[14] D.J. Thewsey, Y.Y. Zhao, Thermal conductivity of porous copper manufactured by the lost carbonate sintering process, Phys. Status Solidi A, 205 (2008) 1126-1131.

DOI: 10.1002/pssa.200723121

[15] K. Diao, L.P. Zhang, Y.Y. Zhao, Measurement of tortuosity of porous Cu using a diffusion diaphragm cell, Measurement, 110 (2017) 335-338.

DOI: 10.1016/j.measurement.2017.07.014

[16] F. Agyenim, The use of enhanced heat transfer phase change materials (PCM) to improve the coefficient of performance (COP) of solar powered LiBr/H2O absorption cooling systems, Renew. Energ., 87 (2016) 229-239.

DOI: 10.1016/j.renene.2015.10.012

[17] Z. Zhuang, G. Li, Y. Zhang, Y. Li, Optimization study on the heat transfer area of the sewage source heat pump system based on year-round coefficient of performance, Procedia Eng., 121 (2015) 1535-1543.

DOI: 10.1016/j.proeng.2015.09.132

[18] D. Humphrey, L. Condra, N. Pendse, D. Das, C. Wilkinson, M. Pecht, An avionics guide to uprating of electronic parts, IEEE T. Compon. Pack. T., 23 (2000) 595-599.

DOI: 10.1109/6144.868863
