Investigation of Morphological and Optical Properties of Electrodeposited Cuprous Oxide (Cu₂O) Thin Film Modified with Copper(II) Phthalocyanine-Tetrasulfonic Acid Tetrasodium Salt

Abstract:

Metal oxides are widely used as components in photovoltaic cells such as transparent conducting front electrodes or electron-transport layers, while only few metal oxides have been used as light absorbers. In this study, cuprous oxide was modified by anchoring TSCuPc dye molecules via potentiostatic electrodeposition approach. Fourier Transform Infrared Spectroscopy results display the different vibration peaks for S=O bond and C-N present in the TSCuPc modified Cu₂O deposits signifying the attachment of TSCuPc on Cu₂O. The highest absorbance peaks of Cu₂O and TSCuPc at approximately 420 nm and 650 nm respectively was observed when 20uM of TSCuPc was added in the electrodeposition solution. Scanning Electron Microscopy reveals the formation of Cu₂O film and formation of secondary submicron size structures with the addition of TSCuPc. The surface morphology of the secondary structures changes as the concentration TSCuPc increases. With the aforementioned results, it was verified that TSCuPc can be anchored to Cu₂O via electrochemical route which could pave way in developing materials with high absorption in visible light applicable for optoelectronic devices.

You might also be interested in these eBooks

6th Asia Conference on Mechanical and Materials Engineering

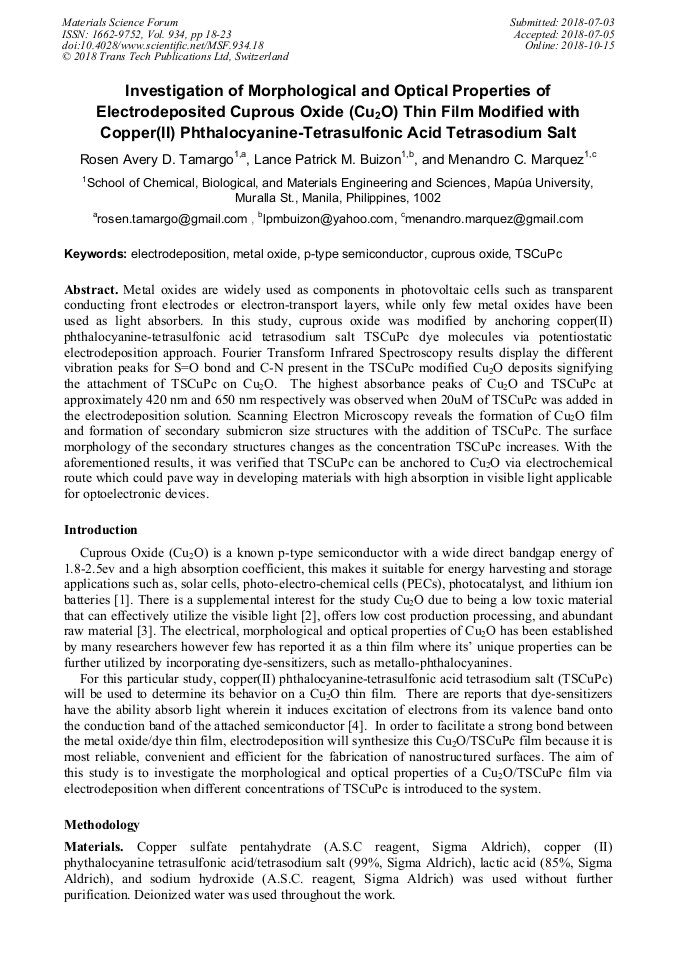

View Preview

Info:

Periodical:

Materials Science Forum (Volume 934)

Pages:

18-23

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.934.18

Citation:

Cite this paper

Online since:

October 2018

Authors:

Rosen Avery D. Tamargo*, Lance Patrick M. Buizon, Menandro C. Marquez

Keywords:

Cuprous Oxide, Electrodeposition, Metal Oxide, P-Type Semiconductor, TSCuPc

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Ahalapitiya. Jayatissa, K. Guo, A. Jayasuriya, Fabrication of cuprous and cupric oxide thin films by heat treatment,, Applied Surface Science, vol. 255, pp.9474-9479, (2009).

DOI: 10.1016/j.apsusc.2009.07.072

Google Scholar

[2] Anze. Shui, W. Zhu, L. Xu, D. Qin, Y. Wang, Green sonochemical synthesis of cupric and cuprous oxides nanoparticles,, Ceramics International, p.8715–8722, (2013).

DOI: 10.1016/j.ceramint.2013.04.055

Google Scholar

[3] B. Rajesh Kumar, B. Hymavathi, T. Subba Rao, Structural and Optical Properties of Nanostructured Cu2O Thin Films for Optoelectronic Devices,, Materials Today: Proceedings, vol. 4, pp.3903-3910, (2017).

DOI: 10.1016/j.matpr.2017.02.289

Google Scholar

[4] Bernabé Marí, M. Moya, K. Singh, M. Mollar, P. Palacios, E. Artacho, Perlawahnón, Characterization of electrodeposited zinc oxide/tetrasulphonatedcopper phthalocyanines (ZnO/Ts-CuPc) hybrid ﬁlms and their photoelectrochemical properties,, Journal of Electroanalytical Chemistry, vol. 653, no. 1-2, p.86–92 , (2011).

DOI: 10.1016/j.jelechem.2010.12.023

Google Scholar

[5] S. Bijani, R. Schrebler, E.A Dalchiele, M. Gabas, L. Martinez, and J. R. Ramos-Barrado, Study of the Nucleation and Growth Mechanisms in the Electrodeposition of Micro- and Nanostructured Cu2O Thin Film,, The Journal of Physcial Chemistry, no. 115, pp.21373-21382, (2011).

DOI: 10.1021/jp208535e

Google Scholar
