Deformation Behavior of Fe-Al Single Crystals Containing Fe₂AlTi Precipitates

Abstract:

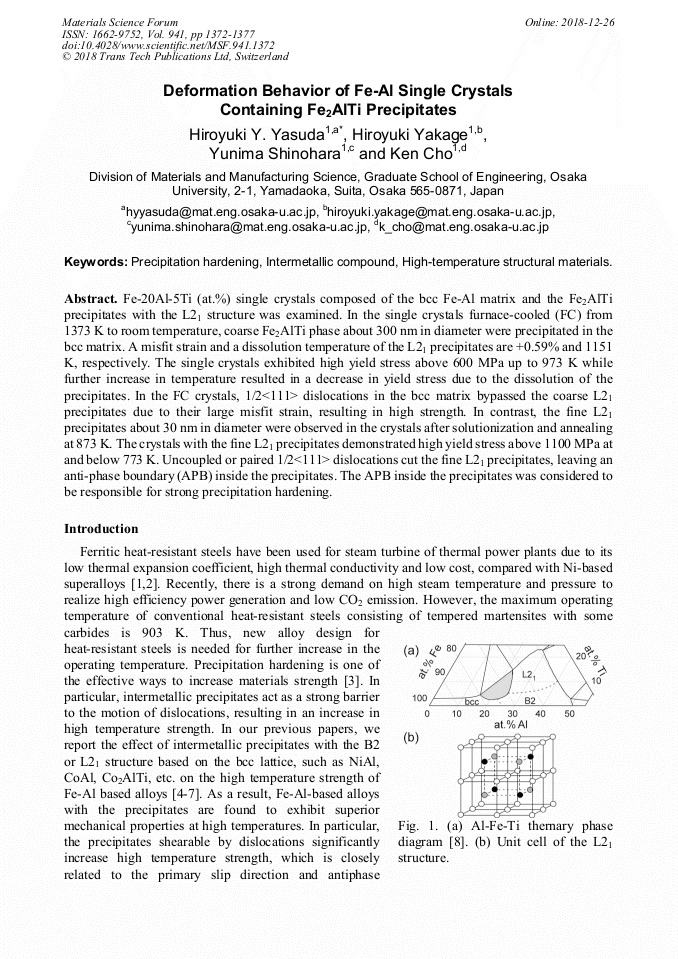

Fe-20Al-5Ti (at.%) single crystals composed of the bcc Fe-Al matrix and the Fe₂AlTi precipitates with the L2₁ structure was examined. In the single crystals furnace-cooled (FC) from 1373 K to room temperature, coarse Fe₂AlTi phase about 300 nm in diameter were precipitated in the bcc matrix. A misfit strain and a dissolution temperature of the L2₁ precipitates are +0.59% and 1151 K, respectively. The single crystals exhibited high yield stress above 600 MPa up to 973 K while further increase in temperature resulted in a decrease in yield stress due to the dissolution of the precipitates. In the FC crystals, 1/2<111> dislocations in the bcc matrix bypassed the coarse L2₁ precipitates due to their large misfit strain, resulting in high strength. In contrast, the fine L2₁ precipitates about 30 nm in diameter were observed in the crystals after solutionization and annealing at 873 K. The crystals with the fine L2₁ precipitates demonstrated high yield stress above 1100 MPa at and below 773 K. Uncoupled or paired 1/2<111> dislocations cut the fine L2₁ precipitates, leaving an anti-phase boundary (APB) inside the precipitates. The APB inside the precipitates was considered to be responsible for strong precipitation hardening.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 1372-1377
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.1372
• Online since: December 2018
• Authors: Hiroyuki Y. Yasuda*, Hiroyuki Yakage, Yunima Shinohara, Ken Cho
• Keywords: High-Temperature Structural Materials, Intermetallic Compound, Precipitation Hardening

References

[1] H.K.D.H. Bhadeshia, Design of ferritic creep-resistant steels, ISIJ Int. 41 (2001) 626–640.

DOI: 10.2355/isijinternational.41.626

[2] F. Masuyama, History of Power Plants and Progress in Heat Resistant Steels, ISIJ Int. 41 (2001) 612–625.

DOI: 10.2355/isijinternational.41.612

[3] A.J. Ardell, Precipitation hardening, Metall. Trans. A. 16 (1985) 2131–2165.

[4] T. Edahiro, K. Kouzai, H.Y. Yasuda, Mechanical properties and hardening mechanism of Fe-Al-Ni single crystals containing NiAl precipitates, Acta Mater. 61 (2013) 1716–1725.

DOI: 10.1016/j.actamat.2012.11.046

[5] H.Y. Yasuda, K. Soma, Y. Odawara, Deformation behavior of Fe-Al-Co single crystals containing CoAl precipitates, Mater. Sci. Forum. 783–786 (2014) 2869–2874.

DOI: 10.4028/www.scientific.net/msf.783-786.2869

[6] H.Y. Yasuda, Y. Odawara, K. Soma, T. Yoshimoto, K. Cho, Effects of CoAl precipitates on deformation behavior of Fe-Al-Co single crystals, Intermetallics. 91 (2017).

DOI: 10.1016/j.intermet.2017.08.019

[7] H.Y. Yasuda, R. Kobayashi, Deformation behavior of Fe-Al-Co-Ti single crystals containing Co2AlTi precipitates, Mater. Sci. Forum. 879 (2017) 2210–2215.

DOI: 10.4028/www.scientific.net/msf.879.2210

[8] M. Palm, J. Lacaze, Assessment of the Al-Fe-Ti system, Intermetallics. 14 (2006) 1291–1303.

DOI: 10.1016/j.intermet.2005.11.026

[9] U. Prakash, G. Sauthoff, Structure and properties of Fe-Al-Ti intermetallic alloys, Intermetallics. 9 (2001) 107–112.

DOI: 10.1016/s0966-9795(00)00101-1

[10] M. Palm, Concepts derived from phase diagram studies for the strengthening of Fe-Al-based alloys, Intermetallics. 13 (2005) 1286–1295.

DOI: 10.1016/j.intermet.2004.10.015

[11] M. Palm, G. Sauthoff, Deformation behaviour and oxidation resistance of single-phase and two-phase L21-ordered Fe-Al-Ti alloys, Intermetallics. 12 (2004) 1345–1359.

DOI: 10.1016/j.intermet.2004.03.017

[12] R. Krein, M. Palm, M. Heilmaier, Characterization of microstructures, mechanical properties, and oxidation behavior of coherent A2 + L21 Fe-Al-Ti, J. Mater. Res. 24 (2009) 3412–3421.

DOI: 10.1557/jmr.2009.0403

[13] M. Yamaguchi, Y. Umakoshi, The deformation behaviour of intermetallic superlattice compounds, Progress in Materials Science, 34 (1990) 1–148.

DOI: 10.1016/0079-6425(90)90002-q
