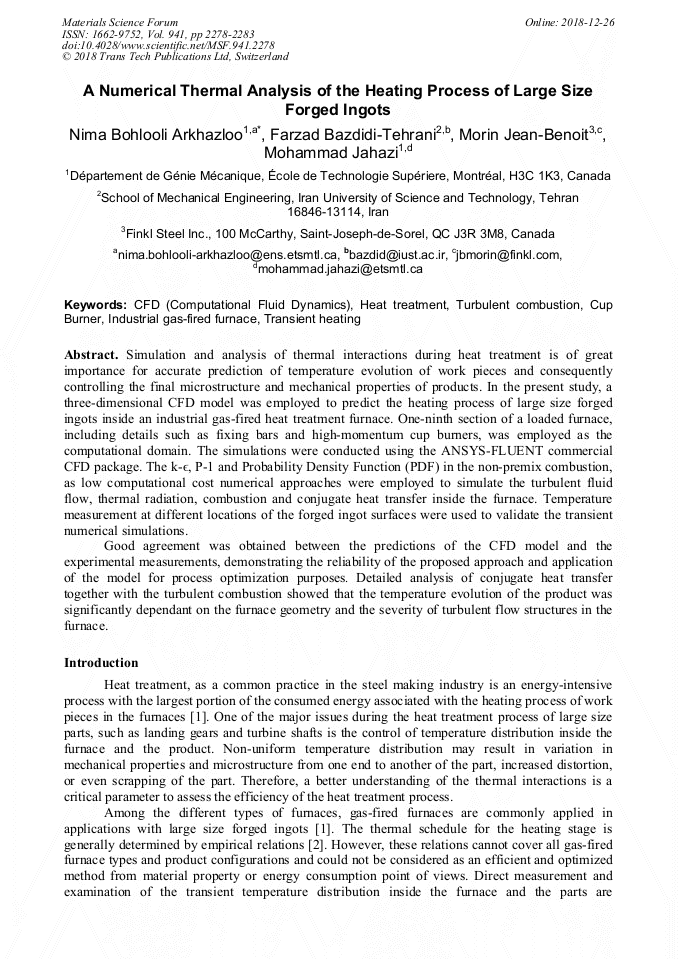

A Numerical Thermal Analysis of the Heating Process of Large Size Forged Ingots

Abstract:

Simulation and analysis of thermal interactions during heat treatment is of great importance for accurate prediction of temperature evolution of work pieces and consequently controlling the final microstructure and mechanical properties of products. In the present study, a three-dimensional CFD model was employed to predict the heating process of large size forged ingots inside an industrial gas-fired heat treatment furnace. One-ninth section of a loaded furnace, including details such as fixing bars and high-momentum cup burners, was employed as the computational domain. The simulations were conducted using the ANSYS-FLUENT commercial CFD package. The k-ε, P-1 and Probability Density Function (PDF) in the non-premix combustion, as low computational cost numerical approaches were employed to simulate the turbulent fluid flow, thermal radiation, combustion and conjugate heat transfer inside the furnace. Temperature measurement at different locations of the forged ingot surfaces were used to validate the transient numerical simulations. Good agreement was obtained between the predictions of the CFD model and the experimental measurements, demonstrating the reliability of the proposed approach and application of the model for process optimization purposes. Detailed analysis of conjugate heat transfer together with the turbulent combustion showed that the temperature evolution of the product was significantly dependant on the furnace geometry and the severity of turbulent flow structures in the furnace.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 2278-2283
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.2278
• Online since: December 2018
• Authors: Nima Bohlooli Arkhazloo*, Farzad Bazdidi-Tehrani, Jean Benoit Morin, Mohammad Jahazi
• Keywords: CFD (Computational Fluid Dynamics), Cup Burner, Heat Treatment, Industrial Gas-Fired Furnace, Transient Heating, Turbulent Combustion

References

[1] Kang, Jinwu, and Yiming Rong., Modeling and simulation of load heating in heat treatment furnaces." Journal of materials processing technology,  174.1-3, (2006): pp.109-114.

DOI: 10.1016/j.jmatprotec.2005.03.037

[2] Gao, M., et al., Estimating equilibration times and heating/cooling rates in heat treatment of workpieces with arbitrary geometry. Journal of materials engineering and performance, 9(1) (2000), pp.62-71.

DOI: 10.1361/105994900770346295

[3] Mayr, B., et al., CFD analysis of a pusher type reheating furnace and the billet heating characteristic. Applied Thermal Engineering, 115 (2017), pp.986-994.

DOI: 10.1016/j.applthermaleng.2017.01.028

[4] Finkl Steel Inc., M., Saint-Joseph-de-Sorel, QC J3R 3M8, Canada.

[5] Baukal Jr, C.E., Industrial burners handbook. 2003: CRC press.

[6] ANSYS Fluent Theory Guide 13.0, ANSYS, Inc, Canonsburg, PA, USA, (2010).

[7] Liu, Y. J., et al., A numerical analysis of slab heating characteristics in a rolling type reheating furnace with pulse combustion., Applied Thermal Engineering, 107 (2016), pp.1304-1312.

DOI: 10.1016/j.applthermaleng.2016.07.074

[8] Hachem, Elie, et al., Modeling of heat transfer and turbulent flows inside industrial furnaces., Simulation Modelling Practice and Theory,  13 (2013), pp.35-53.

DOI: 10.1016/j.simpat.2012.07.013

[9] Porter, R., et al., Evaluation of solution methods for radiative heat transfer in gaseous oxy-fuel combustion environments., Journal of Quantitative Spectroscopy and Radiative Transfer, 111.14 (2010), pp.2084-2094.

DOI: 10.1016/j.jqsrt.2010.04.028

[10] Zhang, C., et al., The numerical and experimental study of non-premixed combustion flames in regenerative furnaces., Journal of Heat Transfer, 122.2 (2000), pp.287-293.

DOI: 10.1115/1.521466

[11] Ničeno, B., A. Dronkers, and K. Hanjalić, Turbulent heat transfer from a multi-layered wall-mounted cube matrix: a large eddy simulation. International Journal of Heat and fluid flow, 23 (2002), pp.173-185.

DOI: 10.1016/s0142-727x(01)00147-3
