Magnetostrictive Property and Magnetic Domain Structure of Fe-Ga Alloy Single Crystal under Tensile Strain

Abstract:

The saturation value of the magnetostriction curve in the [100] direction of a Fe-Ga alloy single crystal was decreased from 226 to 55 ppm by applying the tensile strain of 533 ppm to the measured direction. By magnetic domain observation using a magneto-optic Kerr effect microscope, a complex structure composed of various magnetic domains was observed under zero applied strain. On the other hand, a stripe structure composed of magnetic domains with the magnetization direction in two kinds of <100> magnetic easy directions parallel to the tensile direction, which were separated by straight 180° domain walls, was observed under the tensile strain of 533 ppm. The characteristic magnetic domain structure due to the tensile strain was successfully observed as a cause of the significant decrease of the saturation value of the magnetostriction curve.

You might also be interested in these eBooks

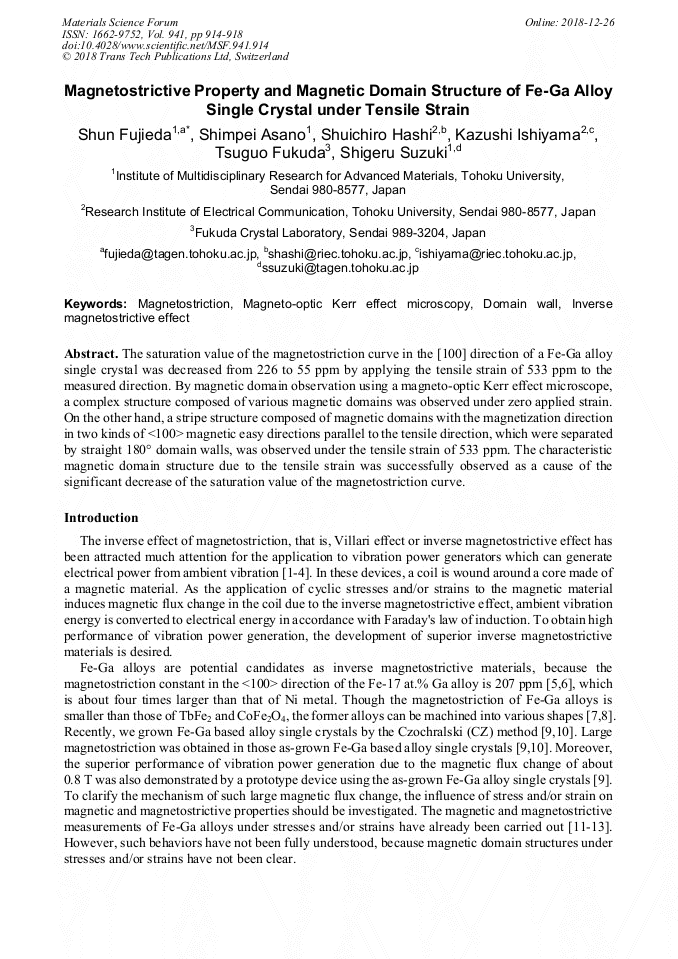

View Preview

Info:

Periodical:

Materials Science Forum (Volume 941)

Pages:

914-918

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.941.914

Citation:

Cite this paper

Online since:

December 2018

Authors:

Shun Fujieda*, Shimpei Asano, Shunichiro Hashi, Kazushi Ishiyama, Tsuguo Fukuda, Shigeru Suzuki

Keywords:

Domain Wall, Inverse Magnetostrictive Effect, Magneto-Optic Kerr Effect Microscopy, Magnetostriction

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] T. Ueno, S. Yamada, Performance of energy harvester using iron-gallium alloy in free vibration, IEEE Trans. Magn., 47 (2011) 2407-2409.

DOI: 10.1109/tmag.2011.2158303

Google Scholar

[2] S. Kita, T. Ueno, S. Yamada, Improvement of force factor of magnetostrictive vibration power generator for high efficiency, J. Appl. Phys., 177 (2015) 17B508.

DOI: 10.1063/1.4907237

Google Scholar

[3] T. Ueno, Performance of improved magnetostrictive vibrational power generator simple and high power output for practical applications, J. Appl. Phys., 117 (2015) 17A740.

DOI: 10.1063/1.4917464

Google Scholar

[4] Z. Deng, M.J. Dapino, Review of magnetostrictive vibration energy harvesters, Smart Mater. Struct., 26 (2017) 103001.

DOI: 10.1088/1361-665x/aa8347

Google Scholar

[5] A.E. Clark, J.B. Restorff, M. Wun-Fogle, T.A. Lograsso, D.L. Schlagel, Magnetostrictive properties of body-centered cubic Fe-Ga abd Fe-Ga-Al alloys, IEEE Trans. Magn., 37 (2000) 3238-3240.

DOI: 10.1109/20.908752

Google Scholar

[6] S. Guruswamy, N. Srisukhumbowornchai, A.E. Clark, J.B. Restorff, M. Wun-Fogle, Strong, ductile, and low-field-magnetostrictive alloys based on Fe-Ga, Scripta Mater., 43 (2000) 239-244.

DOI: 10.1016/s1359-6462(00)00397-3

Google Scholar

[7] M. Wun-Fogle, J.B. Restorff, A.E. Clark, Magnetostriction of stress-annealed Fe-Ga and Fe-Ga-Al alloys under compressive and tensile stress, J. Intell. Mater. Syst. Struct., 17 (2006) 117-122.

DOI: 10.1177/1045389x06056060

Google Scholar

[8] T. Ueno, E. Summers, T. Higuchi, Machining of iron-gallium alloy for microactuator, Sen. Actuators A, 137 (2007) 134-140.

DOI: 10.1016/j.sna.2007.02.026

Google Scholar

[9] S. Fujieda, S. Suzuki, A. Minato, T. Fukuda, T. Ueno, Growth of Fe-Ga alloy single crystals by the Czochralski method and their application to vibration power generator, IEEE Trans. Magn., 50 (2014) 2505204.

DOI: 10.1109/tmag.2014.2331139

Google Scholar

[10] S. Fujieda, R. Ukai, Y. Onuki, S. Suzuki, T. Fukuda, Influence of Co substitution on magnetostriction and on Young's modulus of Fe-Ga alloy single crystal, AIP Conf. Proc., 1649 (2014) 27-31.

DOI: 10.1063/1.4913540

Google Scholar

[11] A.E. Clark, M. Wun-Fogle, J.B. Restorff, T.A. Lograsso, Magnetostrictive properties of galfenol alloy under compressive stress, Mater. Trans., 43 (2002) 881-886.

DOI: 10.2320/matertrans.43.881

Google Scholar

[12] A. Mahadevan, P.G. Evans, M.J. Dapino, Dependence of magnetic susceptibility on stress in texture polycrystalline Fe81.6Ga18.4 and Fe79.1Ga20.9 galfenol alloys, Appl. Phys. Lett., 96 (2010) 012502.

DOI: 10.1063/1.3280374

Google Scholar

[13] S. Asano, S. Fujieda, S. Hashi, K. Ishiyama, T. Fukuda, S. Suzuki, Magnetic domain structure and magnetostriction of Fe-Ga single crystal grown by the Czochralski method, IEEE Magn. Letter, 8 (2017) 6101004.

DOI: 10.1109/lmag.2016.2619332

Google Scholar

[14] C. Mudivarthi, S. Na, R. Schaefer, M. Laver, M. Wuttig, A.B. Flatau, Magnetic domain observation in Fe-Ga alloys, J. Magn. Magn. Mater., 322 (2010) 2023-2026.

DOI: 10.1016/j.jmmm.2010.01.027

Google Scholar
