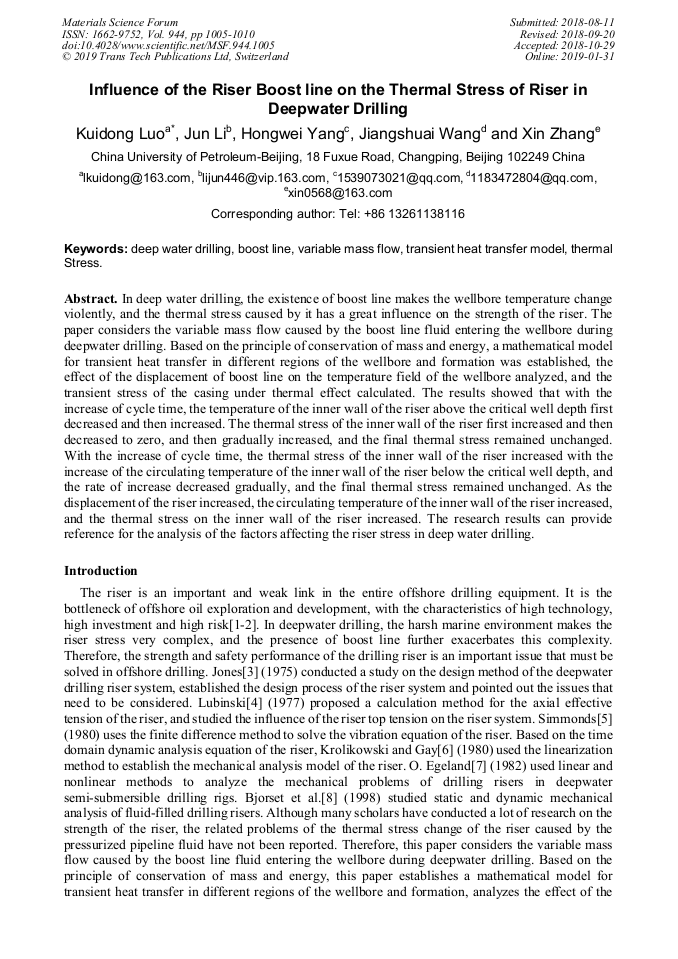

Influence of the Riser Boost Line on the Thermal Stress of Riser in Deepwater Drilling

Abstract:

In deep water drilling, the existence of boost line makes the wellbore temperature change violently, and the thermal stress caused by it has a great influence on the strength of the riser. The paper considers the variable mass flow caused by the boost line fluid entering the wellbore during deepwater drilling. Based on the principle of conservation of mass and energy, the paper establishes a mathematical model for transient heat transfer in different regions of the wellbore and formation, analyzes the effect of the displacement of boost line on the temperature field of the wellbore, and calculates the transient stress of the casing under thermal effect. The results show that with the increase of cycle time, the temperature of the inner wall of the riser above the critical well depth first decreases and then increases. The thermal stress of the inner wall of the riser first increases and then decreases to zero, and then gradually increases, and the final thermal stress remains unchanged. With the increase of cycle time, the thermal stress of the inner wall of the riser increases with the increase of the circulating temperature of the inner wall of the riser below the critical well depth, and the rate of increase decreases gradually, and the final thermal stress remains unchanged. As the displacement of the riser increases, the circulating temperature of the inner wall of the riser increases, and the thermal stress on the inner wall of the riser increases. The research results can provide reference for the analysis of the factors affecting the riser stress in deep water drilling.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 1005-1010
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.1005
• Online since: January 2019
• Authors: Kui Dong Luo*, Jun Li, Hong Wei Yang, Jiang Shuai Wang, Xin Zhang
• Keywords: Boost Line, Deep Water Drilling, Thermal Stress, Transient Heat Transfer Model, Variable Mass Flow

References

[1] Xu L, Zhou J, LIU Z, et al. Challenges and solutions for deepwater drilling in the South China Sea[C]. Offshore technology conference. Offshore Technology Conference, Houston, Texas, USA, (2013).

[2] Wu M C, Lou J Y K. Effects of rigidity and internal flow on marine riser dynamics[J]. Applied ocean research, 1991, 13(5): 235-244.

DOI: 10.1016/s0141-1187(05)80047-1

[3] Jones M R. Problems affecting the design of drilling risers[C]. SPE European Spring Meeting. Society of Petroleum Engineers, (1975).

[4] Lubinski A. Necessary Tension in Marine Risers[J]. Revue de l'Institut Français du Pétrole, 1977, 32(2): 233-256.

DOI: 10.2516/ogst:1977013

[5] Simmonds D G. Dynamic analysis of the marine riser[C]. Society of Petroleum Engineering, Houston, Texas, USA, (1980).

[6] Krolikowski L P, Gay T A. An improved linearization technique for frequency domain riser analysis[C]. Offshore Technology Conference. Offshore Technology Conference, (1980).

DOI: 10.4043/3777-ms

[7] Egeland O, Wiik T, Natvig B J. Dynamic analysis of marine risers[C]. Offshore South East Asia Show. Society of Petroleum Engineers, (1982).

DOI: 10.2118/10420-ms

[8] Bjerset A, Leira B J, Remseth S. Local buckling analysis of Titanium pipes by probabilistic response surface methods[C]. International Conference on Offshore Mechanics and Arctic Engineering, (1998).

[9] Yang M, Li X, Deng J, et al. Prediction of wellbore and formation temperatures during circulation and shut-in stages under kick conditions[J]. Energy, 2015, 91: 1018-1029.

DOI: 10.1016/j.energy.2015.09.001

[10] Raymond L R. Temperature distribution in a circulating drilling fluid[J]. Journal of Petroleum Technology, 1969, 21(03): 333-341.

DOI: 10.2118/2320-pa

[11] Willhite G P. Over-all heat transfer coefficients in steam and hot water injection wells[J]. Journal of Petroleum Technology, 1967, 19(05): 607-615.

DOI: 10.2118/1449-pa

[12] Romero J, Touboul E. Temperature prediction for deepwater wells: a field validated methodology[J], SPE 49056, (1998).

DOI: 10.2118/49056-ms

[13] Karstad E, Aadnoy B S. Analysis of temperature measurements during drilling[J]. SPE 38603, (1997).

[14] Li M, Liu G, Li J, et al. Thermal performance analysis of drilling horizontal wells in high temperature formations[J]. Applied Thermal Engineering, 2015, 78: 217-227.

DOI: 10.1016/j.applthermaleng.2014.12.055

[15] de Sousa P F B, Borges V L, Pereira I C, et al. Estimation of heat flux and temperature field during drilling process using dynamic observers based on Green's function[J]. Applied Thermal Engineering, 2012, 48: 144-154.

DOI: 10.1016/j.applthermaleng.2012.04.061

[16] Fénot M, Bertin Y, Dorignac E, et al. A review of heat transfer between concentric rotating cylinders with or without axial flow[J]. International journal of thermal sciences, 2011, 50(7): 1138-1155.

DOI: 10.1016/j.ijthermalsci.2011.02.013

[17] He S. A wellbore temperature model & its' parametric sensitivity analysis[J]. Journal-Southwest petroleum institure, 2002, 24(1): 57-60.
