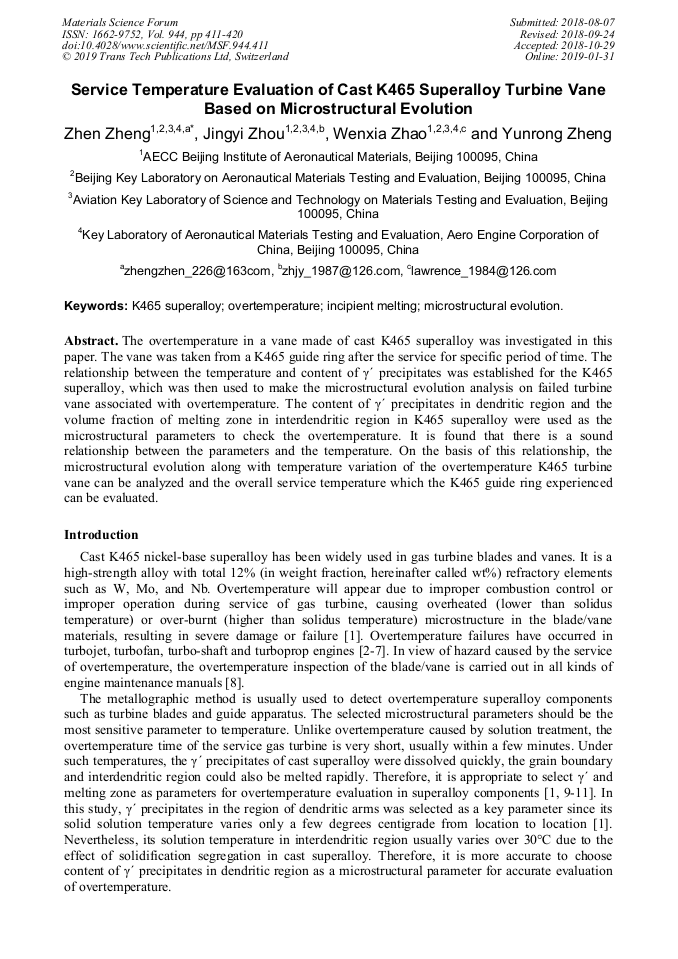

Service Temperature Evaluation of Cast K465 Superalloy Turbine Vane Based on Microstructural Evolution

Abstract:

The overtemperature in a vane made of cast K465 superalloy is investigated in this paper. The vane was taken from a K465 guide ring after the service for specific period of time. The relationship between the temperature and content of γ´ precipitates was established for the K465 superalloy, which was then used to make the microstructural evolution analysis on failed turbine vane associated with overtemperature. The content of γ´ precipitates in dendritic region and the volume fraction of melting zone in interdendritic region in K465 superalloy were used as the microstructural parameters to check the overtemperature. It is found that there is a sound relationship between the parameters and the temperature. On the basis of this relationship, the microstructural evolution along with temperature variation of the overtemperature K465 turbine vane can be analyzed and the overall service temperature which the K465 guide ring experienced can be evaluated.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 411-420
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.411
• Online since: January 2019
• Authors: Zhen Zheng*, Jing Yi Zhou, Wen Xia Zhao, Yun Rong Zheng
• Keywords: Incipient Melting, K465 Superalloy, Microstructural Evolution, Overtemperature

References

[1] Y.L. Cai, Y.R. Zheng (Eds.), Metallographic research on superalloy, National defense industry press, Beijing, 1986, pp.228-238.

[2] W.X. Zhao, Y. Li, Y.W. Fan, et al., Fracture analysis for second stage rotor turbine blade aero-engine, J. Journal of meterials engineering. 8 (2012) 39-44.

[3] S.Y. Li, Y.R. Zheng, Overtemperature failure analysis of turbine blade in aero-engine, J. Materials for mechanical engineering. 6(7) (1983) 47-49.

[4] Metallographic technical experience exchange information anthology edit and review panel (Ed.), Failure analysis, National defense industry press, Beijing, 1997, pp.137-139.

[5] Z. Zheng, X.R. Yin, L.Y. Liu, et al., Crack analysis of first stage turbine blade in aero-engine, J. Failure analysis and prevention. 10(1) (2015) 15-20.

[6] W.H. Lu, L.Y. Liu, M.Y. Bai. Fracture analysis of gas-turbine blades of aircraft engine, J. Failure analysis and prevention. 5(4) (2010) 252-256.

[7] X. He, X.S. Hu, B.T. Zhong, Collectedpapers of the 5th national aerospace equipment failure analysis conference-CSAA, C. National defense industry press. 2006, pp.182-187.

[8] Rolls-Royce Company, Dart and spey engine turbine blade overheat checking March (1972).

[9] C.T. Sims, N.S. Stoloff, W.C. Hagel (Eds.), Superalloy Ⅱ, Wiley Inter science, New York, (1987).

[10] M.J. Donachie, S.J. Donachie, Superalloys A Technical Guide, second edition, ASM International, OH44073.

[11] Y.D. Chen, Y.R. Zheng, Q. Feng. Evaluationg Service Temperature Field of High Pressure Turbine Blades Made of Directionally Solidified DZ125 Superalloy Based on Micro-structure evolution, J. Acta Metallurgica Sinica. 52(12) (2016) 1545-1556.

DOI: 10.3724/sp.j.1037.2010.00185

[12] J.P. Rowe, J.W. Freeman, Effect of overheating on creep-rupture properties of HS-31 alloy at 1500°F, NACA TN4083, December (1957).

[13] H.Huff, H.Pillhöfer, Quantitative microstructure analysis to determine overheating temperatures in IN100 turbine blades, C, in: superalloys 1988, ed. By S.Reichiman et al, TMS, warrendale, Pennsylvania, 1988, pp.835-843.

DOI: 10.7449/1988/superalloys_1988_835_843

[14] Chinese metal society's superalloy chapter (Ed.), China superalloys handbook, volume 2, China zhijian publishing house &Standards press of China, Beijing, 2012, p.232.

[15] J.Jackson et al., Effect of volume percent of fine gamma pime on creep in DS-Mar M200, Metar.Trans. 8A(10) (1977) 1615-1620.

DOI: 10.1007/bf02644867

[16] B.P. Wu, L.H. Li, J.T. Wu, et al., Microstructure and stress rupture properties of polycrystal and directionally solidified castings of nickel-based superalloys, J. International Journal of Minerals, Metallurgy and Materials. 21(1) (2014) 58-64.

DOI: 10.1007/s12613-014-0865-1

[17] J.X. Yang, Q. Zheng, X.F. Sun, et al., Morphological evolution of γ´ phase in K465 superalloy during thermal fatigue, J. Transactions of nonferrous metals society of China. 16(z3) (2006) s1986-s1989.
