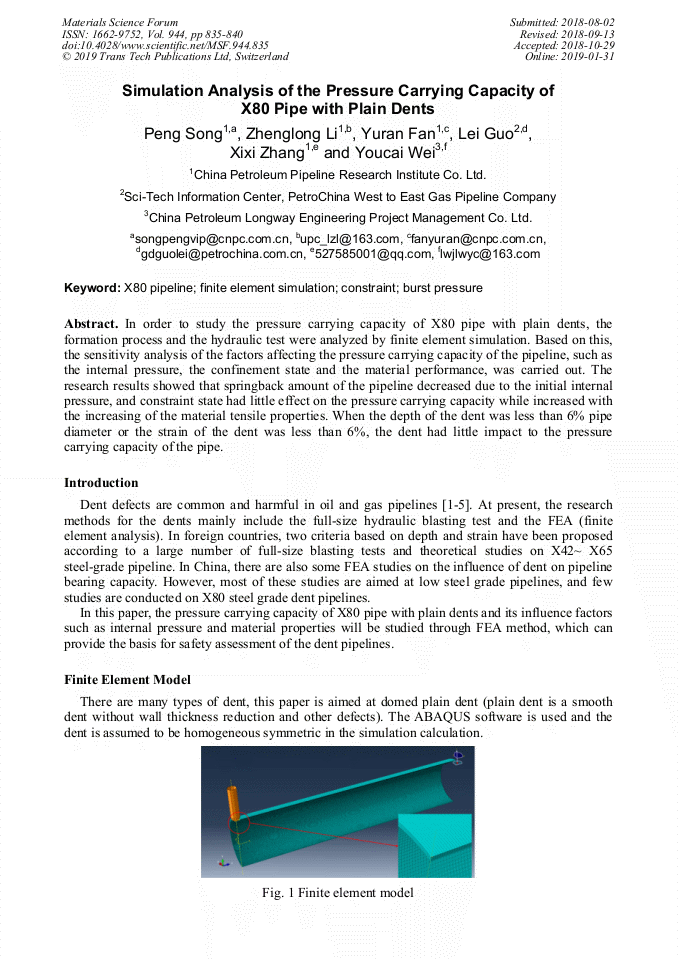

Simulation Analysis of the Pressure Carrying Capacity of X80 Pipe with Plain Dents

Abstract:

In order to study the pressure carrying capacity of X80 pipe with plain dents, the formation process and the hydraulic test were analyzed by finite element simulation. Based on this, the sensitivity analysis of the factors affecting the pressure carrying capacity of the pipeline, such as the internal pressure, the confinement state and the material performance, is carried out. Research results show that springback amount of the pipeline decreases due to the initial internal pressure, and constraint state has little effect on the pressure carrying capacity while increases with the increasing of the material tensile properties. When the depth of the dent is less than 6% pipe diameter or the strain of the dent is less than 6%, the dent has little impact to the pressure carrying capacity of the pipe.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 835-840
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.835
• Online since: January 2019
• Authors: Peng Song, Zheng Long Li*, Yu Ran Fan, Lei Guo, Xi Xi Zhang, You Cai Wei
• Keywords: Burst Pressure, Constraint, Finite Element Simulation, X80 Pipeline

References

[1] Dawson S J, Russell A, Patterson A. Emerging Techniques for Enhanced Assessment and Analysis of Dents. Proceedings of 6th International Pipeline Conference, Calgary, Alberta, Canada, (2006).

[2] David J Warman P E, Johnston D, John D Mackenzie P E. Management of Pipeline Dents and Mechanical Damage in Gas Pipelines. Proceedings of 6th International Pipeline Conference, Calgary, Alberta, Canada, (2006).

DOI: 10.1115/ipc2006-10407

[3] Hart J D, Powell G H, Maple J A, et al. Fatigue Damage Calculations for a Dented and Ovalled Section of the Transalaska Pipeline System at Thompson Pass. Proceedings of 2nd International Pipeline Conference, Calgary, Alberta, Canada, (1998).

DOI: 10.1115/ipc1998-2032

[4] Mohammed A, Sanyasi R, Graham R L. Pipeline Failure by Transit Fatigue. Journal of Failure Analysis and Prevention, 2009, 9(9):35-38.

[5] Fields R J, Foecke T J, Dewit R. Effect of Dents and Gouges on the Integrity of Pipelines. Washington, D.C.: National Institute of Standards and Technology, (1994).

DOI: 10.6028/nist.ir.5479

[6] Cosham A, Hopkins P. The effect of dents in pipelines—guidance in the pipeline defect assessment manual[J]. International Journal of Pressure Vessels and Piping, 2004, 81(2):127-139.

DOI: 10.1016/j.ijpvp.2003.11.004

[7] Iflefel I B, Moffat D G, Mistry J. The interaction of pressure and bending on a dented pipe [J], International Journal of Pressure Vessels and Piping, 2005, 82(10):761-769.

DOI: 10.1016/j.ijpvp.2005.06.002

[8] Baeka J, Kima Y, Kima W, et al. Load bearing capacity of API X65 pipe with dent defect under internal pressure and in-plane bending [J]. Materials Science and Engineering A, 2012, 540:70-82.

DOI: 10.1016/j.msea.2012.01.078

[9] Eiber R J, Maxey W A , Bert C W, et al. The effects of dents on the failure characteristics of line pipe[R], Battelle Report to A.G.A. Pipeline Research Committee, L51403 (1981).

[10] Hopkins P, Jones D G, Clyne A C. The significance of dents and defects in transmission pipelines [C]. London: Proceedings of International Conference on Pipe work, (1989).

[11] M. J.Rosenfeld, W. Pepper John, Keith Leewis, Basis of the new criteria in ASME B31.8 for prioritization and repair of mechanical damage[C]. Calgary, Alberta: 4th International Pipeline Conference, (2002).

DOI: 10.1115/ipc2002-27122

[12] Cosham A, Hopkins P. An overview of the pipeline defect assessment manual (PDAM) [C]. Oostende, Belgium : 4th International Pipeline Technology Conference, (2004).

DOI: 10.1115/ipc2002-27067

[13] Hopkins P, Corder I and Corbin P. The resistance of gas transmission pipelines to mechanical damage[C], Calgary: International Conference on Pipeline Reliability, (1992).

[14] Bjørnøy O H, Rengård O, Fredheim S, and Bruce P. Residual strength of dented pipelines, DNV test results [C]. Seattle, USA:Tenth International Conference on Offshore and Polar Engineering, 2000:182-188.

[15] Alexander C R, and Kiefner J F. Effects of smooth and rock dents on liquid petroleum pipelines, API Publication, 1156 (1997).

[16] Kiefner J. F., and C. R. Alexander. Effects of smooth and rock dents on liquid petroleum pipelines (Phase 2), Addendum to API Publication, 1156 (1999).

[17] LIU X B, ZHANG H, TANG K, et al. Study of the limit pressure of the X60 pipeline with dent using finite element method [C]. Langfang, Hebei, China: China International Oil & Gas Pipeline Conference, (2013).

[18] ZHAO S B, ZHANG Z Q, LUO L H, et al. Analysis of the effect of plain dents on the pipeline burst pressure[J]. Pipeline Technique and Equipment, 2015(5):11-14.

[19] LI G, LI X R. Effects of Sunken Defects on the Strength of Gas Pipeline. WELDED PIPE AND TUBE, 2015, 38(10):53-56.

[20] SHUAI Y, SHUAI J, DI Y. Full-scale burst experiments on dented pipeline[J]. Oil & Gas Storage and Transportation, 2017, 36(1):44-48.
