Corrosion Behavior of P110S Oil Pipe in Simulated Working Condition

Xiao Jun Fang; Li Liu; Zhi Gang Yang; Yong Qiang Zhang

doi:10.4028/www.scientific.net/MSF.944.815

Paper Titles

Numerical Simulation of Stagger Spinning for D406A High-Strength Steel
p.778

A Phase-Field Model for Multilayered Heterostructure Morphology
p.788

Study of Temperature Effect on the High Performance of OCTG Used for Deep and Ultra-Deep Well
p.797

Development and Application of Sour Service Pipeline Steel with Low Manganese Content
p.808

Corrosion Behavior of P110S Oil Pipe in Simulated Working Condition
p.815

Mechanical Properties of Girth Weld with Different Butt Materials Severed for Natural Gas Station
p.821

Tubing String Thread Sealing Surfaces Damage Evaluation Based on Acoustic Elasticity Theory
p.828

Simulation Analysis of the Pressure Carrying Capacity of X80 Pipe with Plain Dents
p.835

Microscopic Study on Mechanical Properties of Different Microregions during In-Service Welding
p.841

HomeMaterials Science ForumMaterials Science Forum Vol. 944Corrosion Behavior of P110S Oil Pipe in Simulated...

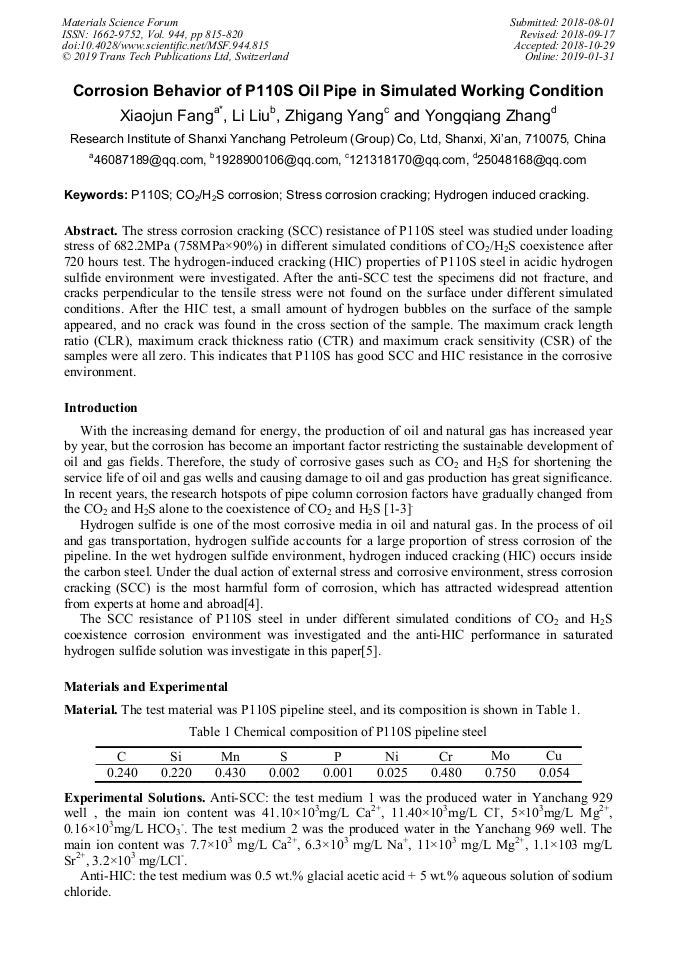

Corrosion Behavior of P110S Oil Pipe in Simulated Working Condition

Abstract:

The corrosion resistance of P110S steel in CO₂and H₂S coexistence corrosion environment under different temperature and P_CO2/P_H2S was investigated by high temperature and high pressure (HTHP) reaction kettle combined with SEM, EDS and XRD analysis methods. The stress corrosion cracking (SCC) resistance of P110S steel was studied under loading pressure of 682.2MPa (758MPa×90%) in simulated conditions after 720 hours test. The results show that the P110S steel has serious corrosion in the range of simulative temperature and H₂S partial pressure. With the increase of temperature, the corrosion rate decreases first and then increases. With the increase of H₂S partial pressure, the corrosion rate increases first and then decreases. The P110S steel has the highest corrosion rate when the temperature is 50 °C and H₂S partial pressure is 0.1%. After the anti-SCC test, the specimens did not fracture, and cracks perpendicular to the tensile stress were not found on the surface. That is, P110S has good SCC resistance in the corrosive environment.

You might also be interested in these eBooks

Corrosion. Tube Products and Pipeline Systems

View Preview

Functional and Functionally Structured Materials III

View Preview

Info:

Periodical:

Materials Science Forum (Volume 944)

Pages:

815-820

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.944.815

Citation:

Cite this paper

Online since:

January 2019

Authors:

Xiao Jun Fang*, Li Liu, Zhi Gang Yang, Yong Qiang Zhang

Keywords:

CO₂/H₂S Corrosion, Hydrogen Induced Cracking, P110S, Stress Corrosion Cracking

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] YANG Jian-wei, ZHANG Lei, LU Min-xu, Research progress on CO2/H2S corrosion and principles for materials selection for oil and gas field, J. Corrosion science and protection technology.21(2009)401-405.

Google Scholar

[2] LI Ping, CO2/H2S corrosion Behavior of Pipeline Steel P110 at 90°C, J.Total corrosion control. 20(2006)18-23.

Google Scholar

[3] CHENG Ya-wen, ZHAO Hui-jun, PENG Hao-ping, etc, Research progress of the pipeline under the coexistence of H2S/CO2, J.Journal of Changzhou University(Natural Science Edition). 27(2015) 65-68.

Google Scholar

[4] XUE Yan, ZhAO Mifeng, LV Xianghong, etc. Stress Corrosion Cracking Evaluation Methods of Stainless Steel Tubing[J]. Corrosion & Protection, 39(2018): 340-343.

Google Scholar

[5] WANG Bin, ZHANG Jun Ling, BAI Jiang Hu , etc. Corrosion Behavior of BG80S Anti-Sulfur Oil Tube Steel in High Temperature High Pressure H2S/CO2 Environment[J]. Applied Mechanics & Materials, 151(2012)23-27.

DOI: 10.4028/www.scientific.net/amm.151.23

Google Scholar
