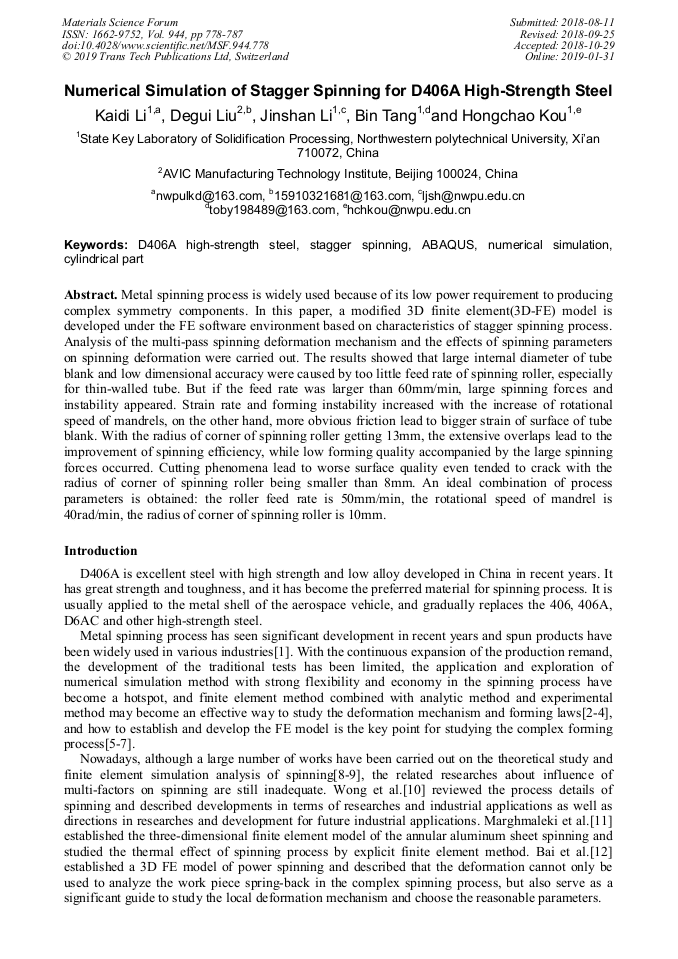

Numerical Simulation of Stagger Spinning for D406A High-Strength Steel

Abstract:

Metal spinning process is widely used because of its low power requirement to producing complex symmetry components. In this paper, a modified 3D finite element(3D-FE) model is developed under the FE software environment based on characteristics of stagger spinning process. Analysis of the multi-pass spinning deformation mechanism and the effects of spinning parameters on spinning deformation is carried out. The results show that, large internal diameter of tube blank and low dimensional accuracy are caused by too little feed rate of spinning roller, especially for thin-walled tube. But if the feed rate is larger than 60mm/min, large spinning forces and instability appear. Strain rate and forming instability increase with the increase of rotational speed of mandrels, on the other hand, more obvious friction leads to bigger strain of surface of tube blank. With the radius of corner of spinning roller getting 13mm, the extensive overlaps lead to the improvement of spinning efficiency, while low forming quality accompanied by the large spinning forces occurs. Cutting phenomena leads to worse surface quality even tends to crack with the radius of corner of spinning roller being smaller than 8mm. An ideal combination of process parameters is obtained: the roller feed rate is 50mm/min, the rotational speed of mandrel is 40rad/min, the radius of corner of spinning roller is 10mm.

You might also be interested in these eBooks

Functional and Functionally Structured Materials III

View Preview

Info:

Periodical:

Materials Science Forum (Volume 944)

Pages:

778-787

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.944.778

Citation:

Cite this paper

Online since:

January 2019

Authors:

Kai Di Li, De Gui Liu, Jin Shan Li, Bin Tang, Hong Chao Kou

Keywords:

ABAQUS, Cylindrical Part, D406A High-Strength Steel, Numerical Simulation, Stagger Spinning

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] L. Wang, H. Long, Investigation of material deformation in multi-pass conventional metal spinning, Mater. Design. 32 (2011) 2891-2899.

DOI: 10.1016/j.matdes.2010.12.021

Google Scholar

[2] Q. X. Xia, X. Q. Cheng, Y. Hu, et al., Finite element simulation and experimental investigation on the forming forces of 3D non-axisymmetrical tubes spinning, Int. J. Mech. Sci. 48 (2006) 726-735.

DOI: 10.1016/j.ijmecsci.2006.01.014

Google Scholar

[3] J. H. Liu, H. Yang, Y. Q. Li, A study of the stress and strain distribution of first-pass conventional spinning under different roller-traces, J. Mater. Process. Tech. 129 (2002) 326-329.

DOI: 10.1016/s0924-0136(02)00682-9

Google Scholar

[4] S. Y. Jiang, Y. F. Zheng, Z. Y. Ren, et al., Multi-pass spinning of thin-walled tubular part with longitudinal inner ribs, Trans. Nonferr. Met. Soc. China. 19 (2009) 215-221.

DOI: 10.1016/s1003-6326(08)60255-1

Google Scholar

[5] H. Yang, R. J. Gu, M. Zhan, et al., Effect of frictions on cross section quality of thin-walled tube NC bending, Trans. Nonferr. Met. Soc. China. 16 (2006) 878-886.

DOI: 10.1016/s1003-6326(06)60344-0

Google Scholar

[6] M. Zhan, H. Yang, J. H. Zhang, et al., 3D FEM analysis of influence of roller feed rate on forming force and quality of cone spinning, J. Mater. Process. Tech. 187/188 (2007) 486-491.

DOI: 10.1016/j.jmatprotec.2006.11.114

Google Scholar

[7] H. Yang, M. Zhan, Y. L. Liu, A 3D rigid-viscoplastic FEM simulation of the isothermal precision forging of a blade with a damper platform, J. Mater. Process. Tech. 122 (2005) 45-50.

DOI: 10.1016/s0924-0136(02)00032-8

Google Scholar

[8] M. Zhan, H. Yang, J.H. Zhang, et al., 3D FEM analysis of influence of roller feed rate on forming force and quality of cone spinning, J. Mater. Process. Tech. 187 (2007) 486-491.

DOI: 10.1016/j.jmatprotec.2006.11.114

Google Scholar

[9] L. Wang, H. Long, Roller path design by tool compensation in multi-pass conventional spinning, Mater. Design. 46 (2013) 645-653.

DOI: 10.1016/j.matdes.2012.10.048

Google Scholar

[10] C. C. Wong, T. A. Dean, J. Lin, A review of spinning, shear forming and flow forming process, Int. J. Mach. Tool. Manu. 43 (2003) 1419-1435.

DOI: 10.1016/s0890-6955(03)00172-x

Google Scholar

[11] I.S. Marghmaleki, Y.T. Beni, A.R. Noghrehabadi, et al., Finite Element Simulation of Thermomechanical Spinning Process, Procedia Eng. 10 (2011) 3769-3774.

DOI: 10.1016/j.proeng.2011.04.616

Google Scholar

[12] Q. Bai, H. Yang, M. Zhan, Finite element modeling of power spinning of thin-walled shell with hoop inner rib, Trans. Nonferr. Met. Soc. China. 18 (2008) 6-13.

DOI: 10.1016/s1003-6326(08)60002-3

Google Scholar
