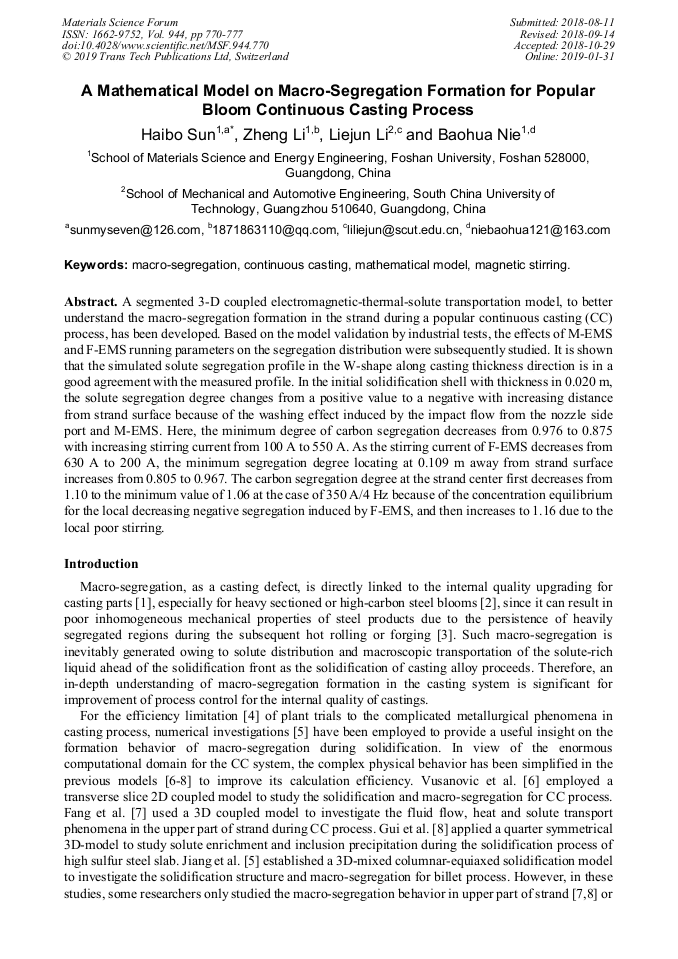

A Mathematical Model on Macro-Segregation Formation for Popular Bloom Continuous Casting Process

Abstract:

A segmented 3-D coupled electromagnetic-thermal solute transportation model, aimed to better understand the macro-segregation formation in the strand during a popular continuous casting (CC) process, has been developed. Based on the model validation by industrial tests, the effect of M-EMS and F-EMS running parameters on the segregation distribution were subsequently carried out. It is shown that the simulated solute segregation profile in the W-shape along the casting thickness direction is in a good agreement with the measured profile. In the initial solidification shell with thickness in 0.020 m, the solute segregation degree changes from a positive value to a negative with the increasing distance from strand surface because of the washing effect induced by the impact flow from the nozzle side port and M-EMS. Here, the minimum degree of carbon segregation decreases from 0.976 to 0.875 with the increasing stirring current from 100A to 550A. As the stirring current of F-EMS decreases from 630A to 200A, the minimum segregation degree locating at 0.109 m distance from strand surface increases from 0.805 to 0.967. The carbon segregation degree at the strand center first decreases from 1.10 to the minimum value of 1.06 at the case of 350 A/4 Hz because of the concentration equilibrium for the local decreasing negative segregation induced by F-EMS, and then increases to 1.16 due to the local poor stirring.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 770-777
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.770
• Online since: January 2019
• Authors: Hai Bo Sun*, Zheng Li, Lie Jun Li, Bao Hua Nie
• Keywords: Continuous Casting, Macro-Segregation, Magnetic Stirring, Mathematical Model

References

[1] H.Sun, J.Zhang, Study on the Macrosegregation Behavior of the Bloom Continuous Castings: Model Development and Validation. Metall. Trans. B., 45(2014), 1133-1149.

DOI: 10.1007/s11663-013-9986-6

[2] H. An, Y. Bao, M. Wang, L. Zhao, Metall. Effects of electromagnetic stirring on fluid flow and temperature distribution in billet continuous casting mould and solidification structure of 55SiCr, Metall. Res. Technol. 115 (2018), 103.

DOI: 10.1051/metal/2017075

[3] H.Sun, L. Li, D. Ye, et al. On the Alternate Stirring Mode of F-EMS for Bloom Continuous Castings. Metall. Trans. B. 49(2018), 1909-1918.

DOI: 10.1007/s11663-018-1287-7

[4] V. Ludlow, A. Normanton, A. Anderson, Strategy to minimise central segregation in high carbon steel grades during billet casting. Ironmak. Steelmak., 32(2005), 68-74(7).

DOI: 10.1179/174328105x23978

[5] D. Jiang, M. Zhu, Solidification structure and macrosegregation of billet continuous casting process with dual electromagnetic stirrings in mold and final stage of solidification: A numerical study. Metall. Trans. B., 47(2016), 3446-3458.

DOI: 10.1007/s11663-016-0772-0

[6] I. Vušanović, R. Vertnik, B. Šarler, et al. A simple slice model for prediction of macrosegregation in continuously cast billets. IOP Publishing, London, 27(2011),012056.

DOI: 10.1088/1757-899x/27/1/012056

[7] Q. Fang, H. Ni, H. Zhang, et al. The Effects of a Submerged Entry Nozzle on Flow and Initial Solidification in a Continuous Casting Bloom Mold with Electromagnetic Stirring. Metal, 7(2017):146.

DOI: 10.3390/met7040146

[8] L. Gui, M. Long,D. Chen, et al. Modeling on solute enrichment and inclusion precipitation during the solidification process of high sulfur steel slab. J. Mater. Res., 32(2017), 3854-3863.

DOI: 10.1557/jmr.2017.333
