Microstructure Evolution and its Modelling of Spray Deposited Al Matrix Composite Sheet during Wedge Pressing

Abstract:

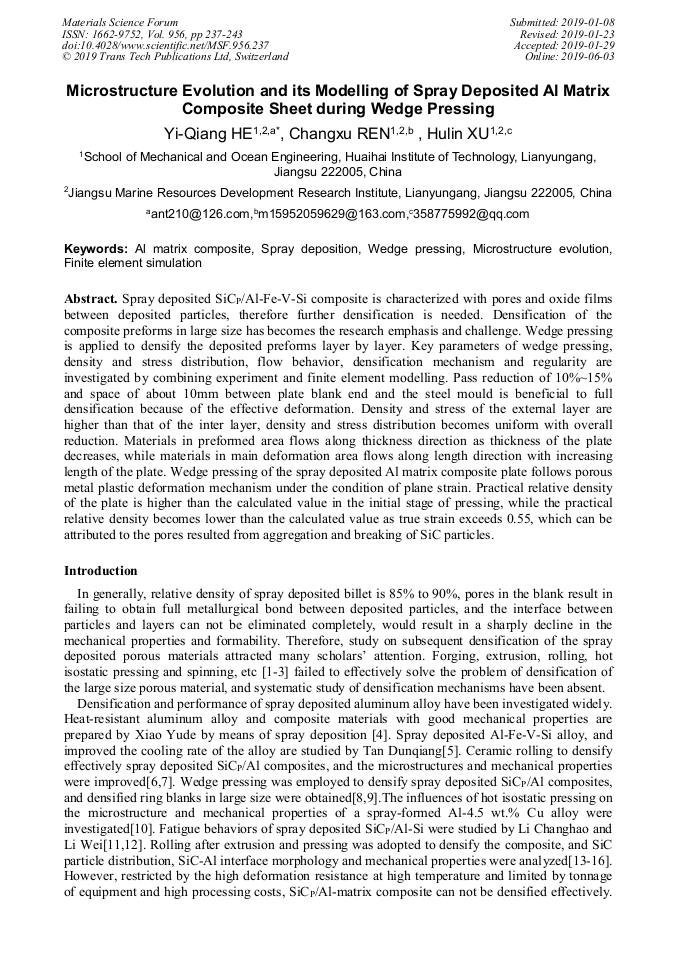

Spray deposited SiCP/Al-Fe-V-Si composite is characterized with pores and oxide films between deposited particles, therefore further densification is needed. Densification of the composite preforms in large size has becomes the research emphasis and challenge. Current research of the composite is focused on densification technologies used to eliminate metallurgical defects. Key parameters of wedge pressing, density and stress distribution, flow behaviour, densification mechanism and regularity are investigated by combining experiment and finite element modelling. Pass reduction of 10%~15% and space of about 10mm between one end of the plate blank and the steel mould is beneficial to wedge pressing because of the effective deformation. Density and stress of the external layer are higher than that of the inter layer, density and stress distribution become uniform with overall reduction. Materials in preformed area flows along thickness direction as thickness of the plate decreases, while materials in main deformation area flows along length direction with increasing length of the plate. Wedge pressing of the spray deposited Al matrix composite plate follows porous metal plastic deformation mechanism under the condition of plane strain. Practical relative density of the plate is higher than the calculated value in the initial stage of pressing, while the practical relative density becomes lower than the calculated value as true strain exceeds 0.55, which can be attributed to the pores resulted from aggregation and breaking of SiC particles.

• Periodical: Materials Science Forum (Volume 956)
• Pages: 237-243
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.956.237
• Online since: June 2019
• Authors: Yi Qiang He*, Chang Xu Ren, Hu Lin Xu
• Keywords: Al Matrix Composite, Finite Element Simulation, Microstructure Evolution, Spray Deposition, Wedge Pressing

References

[1] Li Feng-Xian, Liu Yun-Zhong, You Jiang, et al. Effect of processing parameters on the relative density of spray rolling 7050 aluminum alloy strip[J]. The International Journal of Advanced Manufacturing Technology, 2013, 67 (9-12): 2771-2778.

DOI: 10.1007/s00170-012-4691-1

[2] P.S. GRANT. Solidification in Spray Forming[J]. Metallurgical and Materials Transactions A, 2007, 38(7):1520-1529.

[3] W.B. Shou, D.Q. Yi, H.Q. Liu, et al. Effect of grain size on the fatigue crack growth behavior of 2524-T3 aluminum alloy[J]. Archives of Civil and Mechanical Engineering ,2016, 16(3): 304-312.

DOI: 10.1016/j.acme.2016.01.004

[4] XIAO Yude, WANG Wei, LI Wenxian. High temperature deformation behavior and mechanism of spray deposited Al-Fe-V-Si alloy[J].  Transactions of Nonferrous Metals Society of China, 2007, 17(6): 1175-1180.

DOI: 10.1016/s1003-6326(07)60245-3

[5] TANG Yiping, TAN Dunqiang, LI Wen-xian, et al. Preparation of Al-Fe-V-Si alloy by spray co-deposition with added its over-sprayed powders[J].  Journal of Alloys and Compounds, 2007, 439(1-2): 103-108.

DOI: 10.1016/j.jallcom.2006.08.233

[6] ZHANG Hao, CHEN Ding, CHEN Zhenhua. Densification of Spray Deposited Aluminum Composite Sheets via Ceramic Rolling Technique[J]. Materials and Manufacturing Process, 2008, 23(5): 479-483.

DOI: 10.1080/10426910802103866

[7] Ke Zhang, Guo-Yi Qin, Si-Yong Xu, et al. Preparation of Ag-Ni-Cu Composite Material by Ultrasonic Arc Spray Forming and Accumulative Roll Bonding and the Evolution of Its Microstructure[J]. Metallurgical and Materials Transactions A, 2015, 46(2): 880-886.

DOI: 10.1007/s11661-014-2642-1

[8] CHEN Zhigang, CHEN Zhenhua, CHEN Ding, et al. Microstructural evolution and its effects on mechanical properties of spray deposited SiCp/8009Al composites during secondary processing[J]. Transactions of Nonferrous Metals Society of China, 2009, 19(5): 1116-112.

DOI: 10.1016/s1003-6326(08)60416-1

[9] CHEN Zhigang, CHEN Zhenhua, TANG Gunning. Processing, Microstructure, and Mechanical Properties of Large Spray-Deposited HypoeutecTiC Al-Si Alloy Tubular Preform[J]. Journal of Materials Engineering and Performance, 2011, 20(2):238-243.

DOI: 10.1007/s11665-010-9679-0

[10] S. Devaraj, S. Sankaran, R. Kumar, et al. Influence of Hot Isostatic Pressing on the Microstructure and Mechanical Properties of a Spray-Formed Al-4.5 wt.% Cu Alloy[J]. Journal of Materials Engineering and Performance, 2014, 23(4): 1440-1450.

DOI: 10.1007/s11665-014-0869-z

[11] LI Changhao, CHEN Zhenhua, CHEN Ding, et al. Research on high cycle fatigue behavior of spray deposited SiCP/Al-20Sicomposite[J]. Journal of Mechanical Engineering, 2012, 48(10): 40-44.

DOI: 10.3901/jme.2012.10.040

[12] LI Wei, CHEN Zhenhua CHEN Ding, et al. Growth behavior of fatigue crack in spray formed SiCP/Al-7Si composite[J]. Acta Metallurgy Sinica, 2011, 47(1): 102-108.

[13] CHEN Z H, HE Y Q, YAN H G, et al. Ambient temperature mechanical properties of Al-8.5Fe-1.3V-1.7Si/ SiCP composite[J]. Materials Science and Engineering, 2007, A460-461: 180-185.

DOI: 10.1016/j.msea.2007.02.105

[14] HE Yiqiang, QIAO Bin, WANG Na, et al. A study on the interfacial structure of spray-deposited SiCP/Al-Fe-V-Si composite[J]. Advanced Composite Letters, 2009, 18(4): 137-142.

DOI: 10.1177/096369350901800404

[15] HE Yiqiang, QIAO Bin, WANG Na, et al. Thermostability of Monolithic and Reinforced Al-Fe-V-Si Materials[J]. Advanced Composite Materials, 2009, 18(4): 339-350.

DOI: 10.1163/156855109x434775

[16] HE Yiqiang, TU Hong, QIAO Bin, et al. Tensile fracture behavior of spray deposited SiCP/Al-Fe-V-Si composite sheet[J]. Advanced Composite Materials, 2013, 22(4): 227-237.

DOI: 10.1080/09243046.2013.796626

[17] KUHN H A, DOWNEY C L. Deformation characteristics and plasticity theory of sintered powder materials[J]. International Journal of Powder Metallurgy, 1971, 7(1): 15-25.
