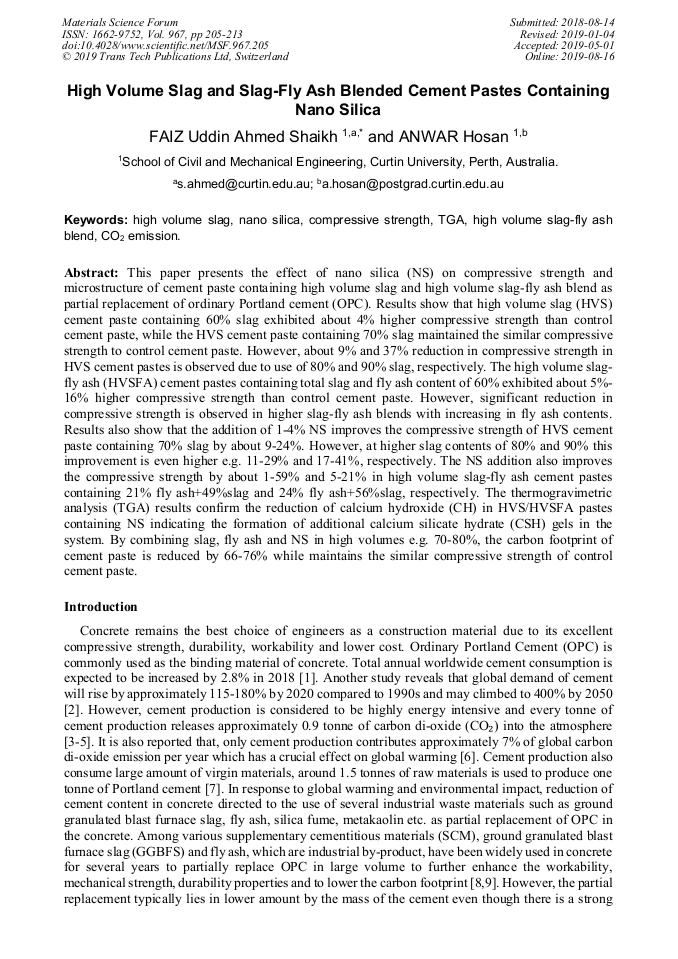

High Volume Slag and Slag-Fly Ash Blended Cement Pastes Containing Nano Silica

Abstract:

This paper presents the effect of nanosilica (NS) on compressive strength and microstructure of cement paste containing high volume slag and high volume slag-fly ash blend as partial replacement of ordinary Portland cement (OPC). Results show that high volume slag (HVS) cement paste containing 60% slag exhibited about 4% higher compressive strength than control cement paste, while the HVS cement paste containing 70% slag maintained the similar compressive strength to control cement paste. However, about 9% and 37% reduction in compressive strength in HVS cement pastes is observed due to use of 80% and 90% slag, respectively. The high volume slag-fly ash (HVSFA) cement pastes containing total slag and fly ash content of 60% exhibited about 5%-16% higher compressive strength than control cement paste. However, significant reduction in compressive strength is observed in higher slag-fly ash blends with increasing in fly ash contents. Results also show that the addition of 1-4% NS improves the compressive strength of HVS cement paste containing 70% slag by about 9-24%. However, at higher slag contents of 80% and 90% this improvement is even higher e.g. 11-29% and 17-41%, respectively. The NS addition also improves the compressive strength by about 1-59% and 5-21% in high volume slag-fly ash cement pastes containing 21% fly ash+49%slag and 24% fly ash+56%slag, respectively. The thermogravimetric analysis (TGA) results confirm the reduction of calcium hydroxide (CH) in HVS/HVSFA pastes containing NS indicating the formation of additional calcium silicate hydrate (CSH) gels in the system. By combining slag, fly ash and NS in high volumes e.g. 70-80%, the carbon footprint of cement paste is reduced by 66-76% while maintains the similar compressive strength of control cement paste. Keywords: high volume slag, nanosilica, compressive strength, TGA, high volume slag-fly ash blend, CO₂ emission.

• Periodical: Materials Science Forum (Volume 967)
• Pages: 205-213
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.967.205
• Online since: August 2019
• Authors: Faiz U.A. Shaikh*, Anwar Hosan
• Keywords: CO₂ Emission, Compressive Strength, High Volume Slag, High Volume Slag-Fly Ash Blend, Nanosilica, TGA

References

[1] Association, T.P.C. Revised Estimates of Cement Production. 2017; Available from: http://www.cement.org/newsroom.

[2] Damtoft, J.S., et al., Sustainable development and climate change initiatives. Cement and Concrete Research, 2008. 38(2): pp.115-127.

DOI: 10.1016/j.cemconres.2007.09.008

[3] Malhotra, V.M., Introduction: Sustainable development and concrete technology, ACI Board Group on Sustainable Development. ACI Concrete International, 2002. 24(7): p.22.

[4] Mehta, P.K., Reducing the environmental impact of concrete. ACI Concrete International, 2001. 23(10): pp.61-66.

[5] Benhelal, E., et al., Global strategies and potentials to curb CO2 emissions in cement industry. Journal of Cleaner Production, 2013. 51(Supplement C): pp.142-161.

DOI: 10.1016/j.jclepro.2012.10.049

[6] Tharakan, J.L.P., D. Macdonald, and X. Liang, Technological, economic and financial prospects of carbon dioxide capture in the cement industry. . Energy Policy 2013. 61: pp.1377-1387.

DOI: 10.1016/j.enpol.2013.05.082

[7] Elchalakani, M., T. Aly, and E. Abu-Aisheh, Sustainable concrete with high volume GGBFS to build Masdar City in the UAE. Case Studies in Construction Materials, 2014. 1: pp.10-24.

DOI: 10.1016/j.cscm.2013.11.001

[8] Hooton, R.D., Canadian use of ground granulated blast-furnace slag as a supplementary cementing material for enhanced performance of concrete. Canadian Journal of Civil Engineering, 2000. 27(4): pp.754-760.

DOI: 10.1139/l00-014

[9] Rashad, A.M., An investigation of high-volume fly ash concrete blended with slag subjected to elevated temperatures. Journal of Cleaner Production, 2015. 93(Supplement C): pp.47-55.

DOI: 10.1016/j.jclepro.2015.01.031

[10] Duran Atiş, C. and C. Bilim, Wet and dry cured compressive strength of concrete containing ground granulated blast-furnace slag. Building and Environment, 2007. 42(8): pp.3060-3065.

DOI: 10.1016/j.buildenv.2006.07.027

[11] Güneyisi, E. and M. Gesoğlu, A study on durability properties of high-performance concretes incorporating high replacement levels of slag. Materials and Structures, 2008. 41(3): pp.479-493.

DOI: 10.1617/s11527-007-9260-y

[12] Oner, A. and S. Akyuz, An experimental study on optimum usage of GGBS for the compressive strength of concrete. Cement and Concrete Composites, 2007. 29(6): pp.505-514.

DOI: 10.1016/j.cemconcomp.2007.01.001

[13] Durán-Herrera, A., et al., Evaluation of sustainable high-volume fly ash concretes. Cement and Concrete Composites, 2011. 33(1): pp.39-45.

DOI: 10.1016/j.cemconcomp.2010.09.020

[14] Şahmaran, M., et al., Self-healing of mechanically-loaded self consolidating concretes with high volumes of fly ash. Cement and Concrete Composites, 2008. 30(10): pp.872-879.

DOI: 10.1016/j.cemconcomp.2008.07.001

[15] Younsi, A., et al., Performance-based design and carbonation of concrete with high fly ash content. Cement and Concrete Composites, 2011. 33(10): pp.993-1000.

DOI: 10.1016/j.cemconcomp.2011.07.005

[16] Aghaeipour, A. and M. Madhkhan, Effect of ground granulated blast furnace slag (GGBFS) on RCCP durability. Construction and Building Materials, 2017. 141: pp.533-541.

DOI: 10.1016/j.conbuildmat.2017.03.019

[17] Choi, Y.C., J. Kim, and S. Choi, Mercury intrusion porosimetry characterization of micropore structures of high-strength cement pastes incorporating high volume ground granulated blast-furnace slag. Construction and Building Materials, 2017. 137: pp.96-103.

DOI: 10.1016/j.conbuildmat.2017.01.076

[18] Wainwright, P.J. and N. Rey, The influence of ground granulated blastfurnace slag (GGBS) additions and time delay on the bleeding of concrete. Cement and Concrete Composites, 2000. 22(4): pp.253-257.

DOI: 10.1016/s0958-9465(00)00024-x

[19] Alonso, M.C., et al., Ternary mixes with high mineral additions contents and corrosion related properties. Materials and Corrosion, 2012. 63(12): pp.1078-1086.

DOI: 10.1002/maco.201206654

[20] Demirboğa, R., İ. Türkmen, and M.B. Karakoç, Relationship between ultrasonic velocity and compressive strength for high-volume mineral-admixtured concrete. Cement and Concrete Research, 2004. 34(12): pp.2329-2336.

DOI: 10.1016/j.cemconres.2004.04.017

[21] El-Chabib, H. and A. Syed, Properties of Self-Consolidating Concrete made with High volume of Supplementary Cementitious Materials. Materials in Civil Engineering, 2013. 25(11): pp.1579-1586.

DOI: 10.1061/(asce)mt.1943-5533.0000733

[22] Jeong, Y., et al., Microstructural verification of the strength performance of ternary blended cement systems with high volumes of fly ash and GGBFS. Construction and Building Materials, 2015. 95: pp.96-107.

DOI: 10.1016/j.conbuildmat.2015.07.158

[23] Kuder, K., et al., Mechanical properties of self consolidating concrete blended with high volumes of fly ash and slag. Construction and Building Materials, 2012. 34: pp.285-295.

DOI: 10.1016/j.conbuildmat.2012.02.034

[24] Shaikh, F.U.A. and S.W.M. Supit, Chloride induced corrosion durability of high volume fly ash concretes containing nano particles. Construction and Building Materials, 2015. 99: pp.208-225.

DOI: 10.1016/j.conbuildmat.2015.09.030

[25] Shaikh, F.U.A., S.W.M. Supit, and P.K. Sarker, A study on the effect of nano silica on compressive strength of high volume fly ash mortars and concretes. Materials & Design, 2014. 60: pp.433-442.

DOI: 10.1016/j.matdes.2014.04.025

[26] Hou, P.-k., et al., Effects of colloidal nanosilica on rheological and mechanical properties of fly ash–cement mortar. Cement and Concrete Composites, 2013. 35(1): pp.12-22.

DOI: 10.1016/j.cemconcomp.2012.08.027

[27] Shaikh, F.U.A. and S.W.M. Supit, Mechanical and durability properties of high volume fly ash (HVFA) concrete containing calcium carbonate (CaCO3) nanoparticles. Construction and Building Materials, 2014. 70(Supplement C): pp.309-321.

DOI: 10.1016/j.conbuildmat.2014.07.099

[28] Zhang, M.-H., J. Islam, and S. Peethamparan, Use of nano-silica to increase early strength and reduce setting time of concretes with high volumes of slag. Cement and Concrete Composites, 2012. 34(5): pp.650-662.

DOI: 10.1016/j.cemconcomp.2012.02.005

[29] Liu, M., et al., The synergistic effect of nano-silica with blast furnace slag in cement based materials. Construction and Building Materials, 2016. 126: pp.624-631.

DOI: 10.1016/j.conbuildmat.2016.09.078

[30] Nazari, A. and S. Riahi, Splitting tensile strength of concrete using ground granulated blast furnace slag and SiO2 nanoparticles as binder. Energy and Buildings, 2011. 43(4): pp.864-872.

DOI: 10.1016/j.enbuild.2010.12.006

[31] Nazari, A. and S. Riahi, The effects of TiO2 nanoparticles on physical, thermal and mechanical properties of concrete using ground granulated blast furnace slag as binder. Materials Science and Engineering: A, 2011. 528(4): pp.2085-2092.

DOI: 10.1016/j.msea.2010.11.070

[32] V. Rostami, Y. Shao, A.J. Boyd, Z. He, Microstructure of cement paste subject to early carbonation curing, Cem. Concr. Res. 42 (2012) 186–193.

DOI: 10.1016/j.cemconres.2011.09.010

[33] C.J. Keattch, D. Dollimore, Introduction to Thermogravimetry, vol. 45, Heydon, (1975).

[34] H.F.W. Taylor, Cement Chemistry, Academic Press Limited, London, (1990).

[35] King, D. (2012) The effect of silica fume on the properties of concrete as defined in concrete society report 74, cementitious materials. 37th conference on our world in concrete and structures.

[36] Lazaro, A., Quercia, G., Brouwers, H.J.H. and Gens, J.W. (2013) Synthesis of a green nano-silica material using beneficicated waste dunites and its application in concrete. World journal of nano science and engineering. 3:41-51.

DOI: 10.4236/wjnse.2013.33006
