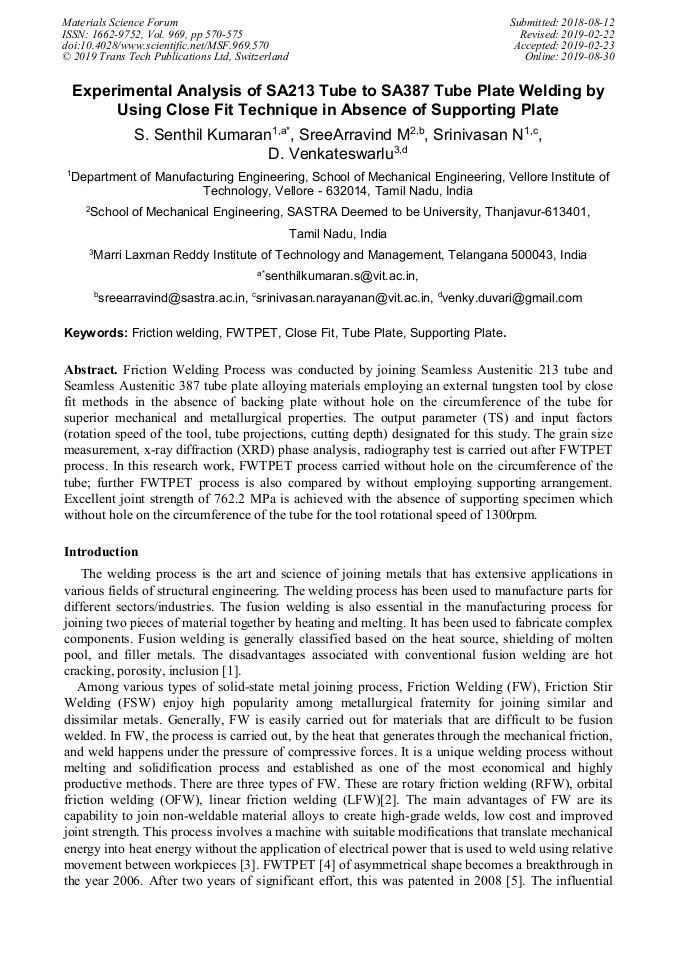

Experimental Analysis of SA213 Tube to SA387 Tube Plate Welding by Using Close Fit Technique in Absence of Supporting Plate

Abstract:

In this study, Friction Welding of Tube to tube-Plate using an External Tool (FWTPET) is carried out by joining SA213 tube and SA387 tube plate alloying materials using an external tungsten tool by close fit methods in absence of backing plate without hole on the circumference of the tube for superior mechanical and metallurgical properties. The optimization techniques such as Taguchi L₉ and Analysis of Variance (ANOVA) is used to endorse the capital joint strength. The output parameter (TS) and input factors (tool rotational speed, tube projections, depth of cut) are designated for the study. The heat that produces from tool pin, dissipates to the tube and the tube plate during FWTPET process. The grain size measurement, x-ray diffraction (XRD) phase analysis, radiography test is carried out after FWTPET process. In this research work, FWTPET process is carried without hole on the circumference of the tube, further FWTPET process is also compared by without employing supporting arrangement. Excellent joint strength of 762.2 MPa is achieved with the absence of supporting specimen which without hole on the circumference of tube for the tool rotational speed of 1300rpm. Keywords: Friction welding, FWTPET, Analysis of Variance (ANOVA), Optimization techniques, Tensile strength

• Periodical: Materials Science Forum (Volume 969)
• Pages: 570-575
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.969.570
• Online since: August 2019
• Authors: S. Senthil Kumaran*, M. Sree Arravind, Narayanan Srinivasan, D. Venkateswarlu
• Keywords: Close Fit, Friction Welding, FWTPET, Support Plate, Tube Plate

References

[1] P.G. KarupannaRaja, M. Rajkumar, S. Senthil Kumaran, A study on backing block arrangement of dissimilar metal joining the process of seamless ferritic and austenitic alloy by using an external tool, J Alloy Compd. 687 (2016) 773-785.

DOI: 10.1016/j.jallcom.2016.06.195

[2] A.Daniel Das, S. Senthil Kumaran, FWTPET Investigation on SA213 Tube to SA387 Tube Plate, Applied Mech and Mater. Vol. 852, 2016 pp-355-361.

DOI: 10.4028/www.scientific.net/amm.852.355

[3] S. Muthukumaran, S. Senthil Kumaran, Saket Kumar, Friction welding of Cu-tube to Al- tube plate using an external tool, Transaction of Indian Institute of metals. 64 (2011) 255-260.

DOI: 10.1007/s12666-011-0052-2

[4] S. Senthil Kumaran, S. Muthukumaran, S. Vinodh. Optimization of friction welding of tube-to-tube plate using an external tool. Structural and Multidisciplinary Optimization 42 (2010) 449–457.

DOI: 10.1007/s00158-010-0509-7

[5] S.Senthil Kumaran, A.Daniel Das, An Examination of Seamless Ferritic Tube and Austenitic alloy tube plate joining by the friction welding process, Materials Today Proceedings. 5-2 (2018) 8539–8546.

DOI: 10.1016/j.matpr.2017.11.551

[6] S.Senthil Kumaran, A.Daniel Das, Friction Welding Joints of SA 213 Tube to SA 387 Tube Plate Boiler Grade Materials by using Clearance and Interference Method, Materials Today Proceedings. 5-2 (2018) 8557–8566.

DOI: 10.1016/j.matpr.2017.11.553

[7] S. Senthil Kumaran & S. Muthukumaran and S. Vinodh., Optimization of friction welding of tube-to-tube plate using an external tool by Taguchi method and genetic algorithm,, Int J Adv Manuf Technol (2011) 57:167–182.

DOI: 10.1007/s00170-011-3286-6
