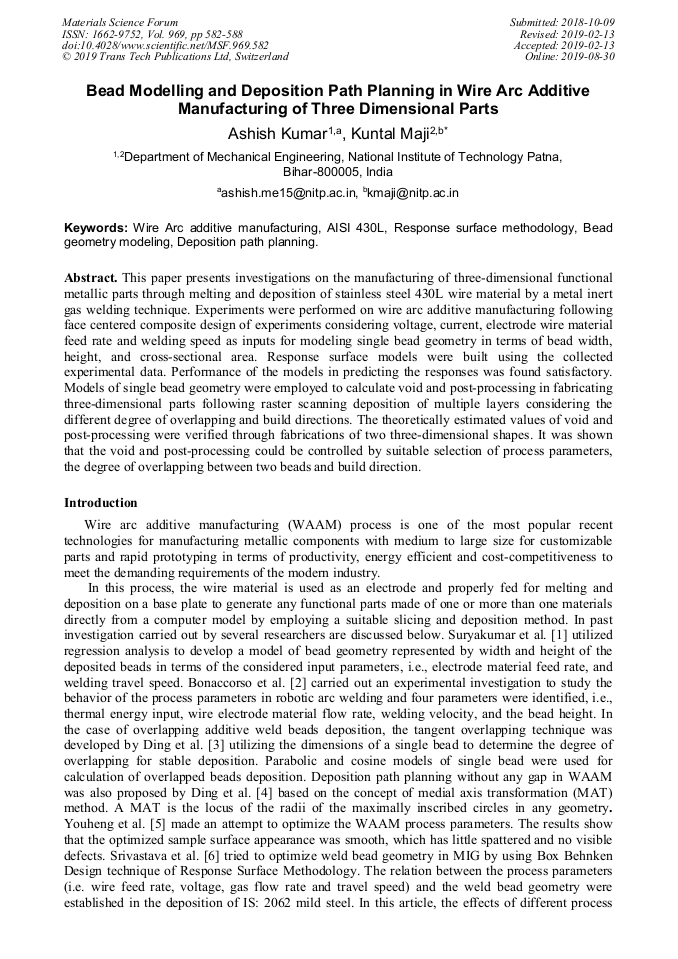

Bead Modelling and Deposition Path Planning in Wire Arc Additive Manufacturing of Three Dimensional Parts

Abstract:

This paper presents investigations on the manufacturing of three-dimensional functional metallic parts through melting and deposition of stainless steel 430L wire material by a metal inert gas welding technique. Experiments were performed on wire arc additive manufacturing following face centered composite design of experiments considering voltage, current, electrode wire material feed rate and welding speed as inputs for modeling single bead geometry in terms of bead width, height, and cross-sectional area. Response surface models were built using the collected experimental data. Performance of the models in predicting the responses was found satisfactory. Models of single bead geometry were employed to calculate void and post-processing in fabricating three-dimensional parts following raster scanning deposition of multiple layers considering the different degree of overlapping and build directions. The theoretically estimated values of void and post-processing were verified through fabrications of two three-dimensional shapes. It was shown that the void and post-processing could be controlled by suitable selection of process parameters, the degree of overlapping between two beads and build direction.

• Periodical: Materials Science Forum (Volume 969)
• Pages: 582-588
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.969.582
• Online since: August 2019
• Authors: ASHISH KUMAR, KUNTAL MAJI*
• Keywords: AISI 430L, Bead Geometry Modeling, Deposition Path Planning, Response Surface Methodology, Wire Arc Additive Manufacturing

References

[1] S. Suryakumar, K. P. Karunakaran, A. Bernard, N. Raghavender, D. Sharma, Weld bead modeling and process optimization in Hybrid Layered Manufacturing, Computer-Aided Design. 43 (2011) 331-44.

DOI: 10.1016/j.cad.2011.01.006

[2] F. Bonaccorso, L. Cantelli, G. Muscoto, Arc welding robot control for shaped metal deposition process, Journal of the 18th world congress. 58 (2011) 11636-11641.

DOI: 10.3182/20110828-6-it-1002.01575

[3] D. Ding, Z. Pan, D. Cuiuri, H. Li, A multi-bead overlapping model for robotic wire and arc additive manufacturing, Robotics and Computer-Integrated Manufacturing. 31 (2015) 101-110.

DOI: 10.1016/j.rcim.2014.08.008

[4] D. Ding, Z. Pan, D. Cuiuri, H. Li, A practical path planning methodology for wire and arc additive manufacturing of thin-walled structures, Robotics and Computer-Integrated Manufacturing. 34 (2015) 8-19.

DOI: 10.1016/j.rcim.2015.01.003

[5] F. Youheng, W. Guilain, Z. Haion, L. Liy, Optimization of surface appearance for wire and arc additive manufacturing of Bainite steel, International Journal of Additive Manufacturing technology. 91 (2016) 301-313.

DOI: 10.1007/s00170-016-9621-1

[6] S. Srivastava, R. K. Garg, Process parameter optimization of gas metal arc welding on IS: 2062 mild steel using response surface methodology, Journal of Manufacturing Processes.25 (2017) 296-305.

DOI: 10.1016/j.jmapro.2016.12.016
