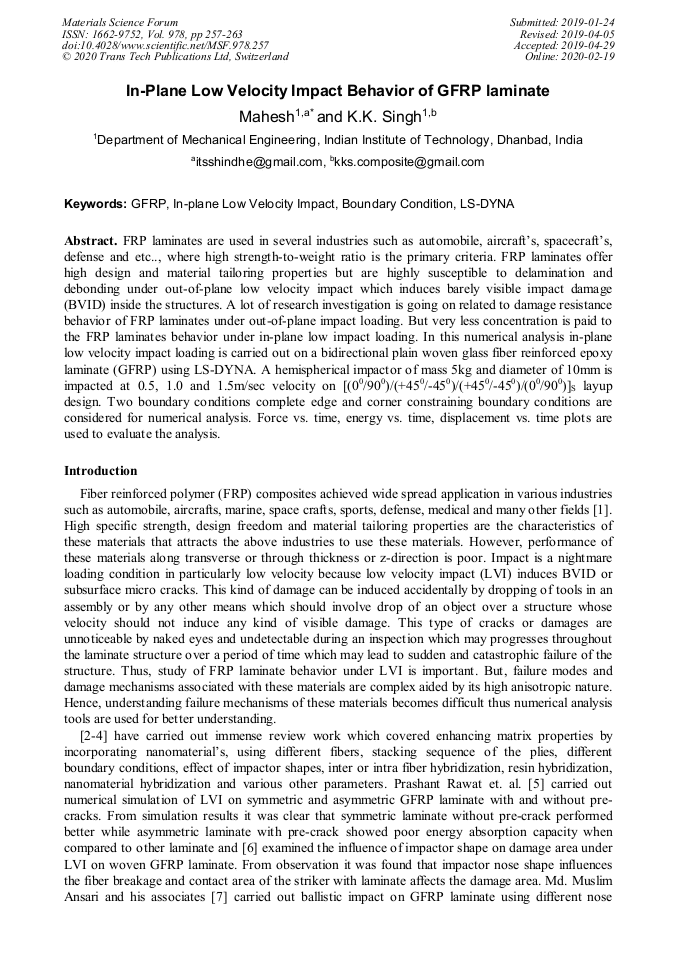

In-Plane Low Velocity Impact Behavior of GFRP Laminate

Abstract:

FRP laminates are used in several industries such as automobile, aircraft’s, spacecraft’s, defense and etc.., where high strength-to-weight ratio is the primary criteria. FRP laminates offer high design and material tailoring properties but are highly susceptible to delamination and debonding under out-of-plane low velocity impact which induces barely visible impact damage (BVID) inside the structures. A lot of research investigation is going on related to damage resistance behavior of FRP laminates under out-of-plane impact loading. But very less concentration is paid to the FRP laminates behavior under in-plane low impact loading. In this numerical analysis in-plane low velocity impact loading is carried out on a bidirectional plain woven glass fiber reinforced epoxy laminate (GFRP) using LS-DYNA. A hemispherical impactor of mass 5kg and diameter of 10mm is impacted at 0.5, 1.0 and 1.5m/sec velocity on [(0⁰/90⁰)/(+45⁰/-45⁰)/(+45⁰/-45⁰)/(0⁰/90⁰)]_S layup design. Two boundary conditions complete edge and corner constraining boundary conditions are considered for numerical analysis. Force vs. time, energy vs. time, displacement vs. time plots are used to evaluate the analysis.

• Periodical: Materials Science Forum (Volume 978)
• Pages: 257-263
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.978.257
• Online since: February 2020
• Authors: Mahesh Mahesh*, Kalyan Kumar Singh
• Keywords: Boundary Condition, GFRP, In-Plane Low Velocity Impact, LS-DYNA

References

[1] Gaurav, K.K. Singh, Fatigue behavior of FRP composites and cnt-embedded FRP composites: a review, J. Polym. Compos. 39 (2018) 1785-1808.

DOI: 10.1002/pc.24177

[2] S. Agrawal, K.K. Singh, P.K. Sarkar, Impact damage on fiber-reinforced polymer matrix composite - A Review, J. Compos. Mater. 48 (2014) 317-332.

DOI: 10.1177/0021998312472217

[3] N.K. Singh, K.K Singh, Review on impact analysis of FRP composites validated by LS‐DYNA, J. Polym. Compos. 36 (2015) 1786-1798.

DOI: 10.1002/pc.23064

[4] P. Rawat, K.K. Singh, An impact behavior analysis of CNT‐based fiber reinforced composites validated by LS‐DYNA: A review, J. Polym. Compos. 38 (2017) 175-184.

DOI: 10.1002/pc.23573

[5] P. Rawat, K.K. Singh, N.K. Singh, Numerical investigation of low velocity impact in symmetric and asymmetric GFRP laminate with and without pre-crack, Adv. Mater. Proc. 2 (2017) 152-155.

DOI: 10.5185/amp.2017/304

[6] P. Rawat, K.K. Singh, N.K. Singh, Numerical investigation of damage area due to different shape of impactors at low velocity impact of GFRP laminate, Materials Today: Proceedings 4 (2017) 8731-8738.

DOI: 10.1016/j.matpr.2017.07.222

[7] Md. M. Ansari, A. Chakrabarti, Influence of projectile nose shape and incidence angle on the ballistic perforation of laminated glass fiber composite plate, Compos. Sci. Technol. 142 (2017) 107-116.

DOI: 10.1016/j.compscitech.2016.12.033

[8] Md. M. Ansari, A. Chakrabarti, Effect of boundary condition and impactor nose angle on impact behavior of FRP composite: Experimental and FE analyses, Materials Today: Proceedings 4 (2017) 9645-9649.

DOI: 10.1016/j.matpr.2017.06.241

[9] P. Rawat, K.K. Singh, Damage Tolerance of carbon fiber woven composite doped with MWCNTs under low velocity impact, Procedia Engineering 173 (2017) 440-446.

DOI: 10.1016/j.proeng.2016.12.061

[10] N.K Singh, P. Rawat, K.K. Singh, Impact response of quasi-isotropic asymmetric carbon fabric/epoxy laminate infused with MWCNTs, Adv. Mater. Sci. Eng. 2016 (2016) 7 pages Article ID 7541468.

DOI: 10.1155/2016/7541468

[11] K.K. Singh, P. Rawat, Mechanical behavior of glass/epoxy composite laminate with varying amount of MWCNTs under different loadings, 5 (2018) 055012.

DOI: 10.1088/2053-1591/aabf99

[12] Md. M. Ansari, A. Chakrabarti, M.A. Iqbal, Dynamic response of laminated GFRP composite under low velocity impact: Experimental and Numerical Study, Procedia Engineering 173 (2017) 153-160.

DOI: 10.1016/j.proeng.2016.12.052

[13] Md. M. Ansari, A. Chakrabarti, Impact behavior of GFRP and Kevlar/epoxy sandwich composite plate: Experimental and FE analyses, J. Mech. Sci. Technol. 31 (2017) 771-776.

DOI: 10.1007/s12206-017-0128-y

[14] L.J. Deka, S.D. Bartus, U.K. Vaidya, Multi-site impact response of S2-glass/epoxy composite laminates, Compos. Sci. Technol. 69 (2009) 725-735.

DOI: 10.1016/j.compscitech.2008.03.002

[15] S.G. Hernandez, D.G. Gonzalez, A. Arias, Multi-impact mechanical behavior of short fiber reinforced composites, Compos. Struct. 202 (2018) 241-252.

DOI: 10.1016/j.compstruct.2018.01.070
