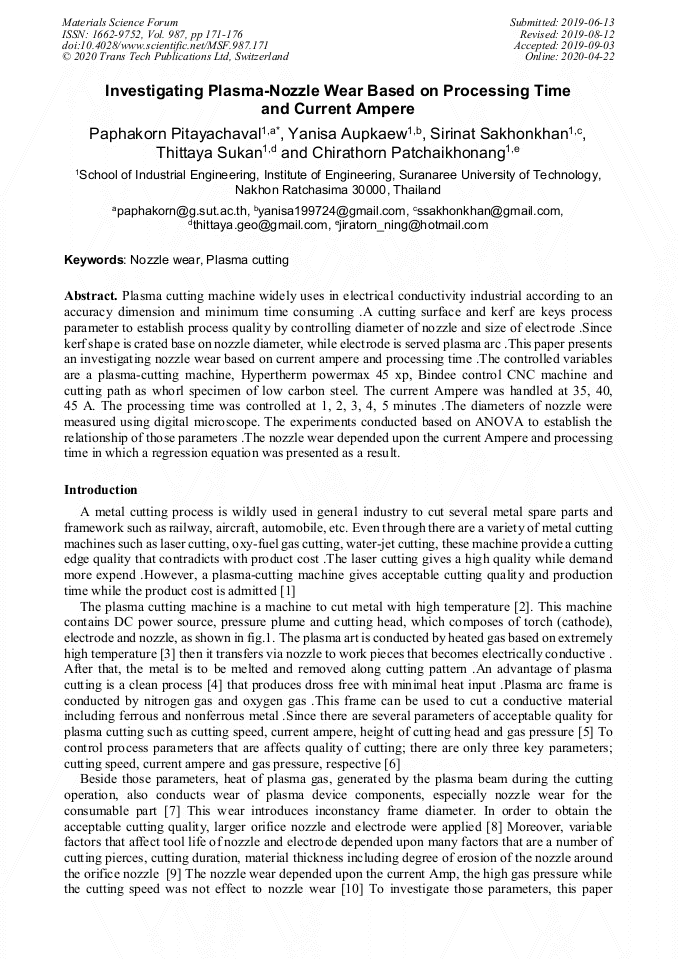

Investigating Plasma-Nozzle Wear Based on Processing Time and Current Ampere

Abstract:

Plasma cutting machine widely uses in electrical conductivity industrial according to an accuracy dimension and minimum time consuming. A cutting surface and kerf are keys process parameter to establish process quality by controlling diameter of nozzle and size of electrode. Since kerf shape is crated base on nozzle diameter, while electrode is served plasma arc. This paper presents an investigating nozzle wear based on current ampere and processing time. The controlled variables are a plasma-cutting machine, Hypertherm powermax 45 xp, Bindee control CNC machine and cutting path as whorl specimen of low carbon steel. The current Ampere was handled at 35, 40, 45 A. The processing time was controlled at 1, 2, 3, 4, 5 minutes. The diameters of nozzle were measured using digital microscope. The experiments conducted based on ANOVA to establish the relationship of those parameters. The nozzle wear depended upon the current Ampere and processing time in which a regression equation was presented as a result.

• Periodical: Materials Science Forum (Volume 987)
• Pages: 171-176
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.987.171
• Online since: April 2020
• Authors: Paphakorn Pittayachaval*, Yanisa Aupkaew, Sirinat Sakhonkhan, Thittaya Sukan, Chirathorn Patchaikhonang
• Keywords: Nozzle Wear, Plasma Cutting

References

[1] S‏. M‏. Ilii1, M‏. Coteaţă1, Plasma Arc Cutting Cost, Int. J. Mater. Form. 2 (2009) 689-692.

[2] Hardik Dholakiya1, Vikas Gondalia, Parametric Study On Plasma Arc Cutting Of Al ‏– 6063, Int. J. Adv. Eng. Res. Develop. 4(5) (2017) 435-438.

[3] W‏. Bach, A‏. Gruchow, Plasma Cutting In Atmosphere And Under Water, Pure Appl. Chern. 64(5) (1992) 665-670.

DOI: 10.1351/pac199264050665

[4] Faq‏: What Are the Advantages and Disadvantages of the Principal Cutting, https‏://Www‏.Twi‏-Global‏.Com‏/Technical‏-Knowledge‏/Faqs‏/Faq‏-What‏-Are‏-The‏-Advantages‏-And‏-Disadvantages‏-Of‏-The‏-Principal‏-Cutting‏-Process‏/, Access: (2019).

[6] ‏ H‏. Ravi Kumar, S‏. Thileepan, Analysis In Plasma Arc Cutting Of 21Cr Ferritic Stainless Steel, Int. J. Chem. Tech. 8(11) (2015) 474-483.

[7] R. W‏. Couch, Jr‏. Hanover; N. A‏. Sanders, Norwich; Lifeng Luo, Lebanon; John Sobr, Enfield; Patrik Backander, Lebanon, All Of N‏.H‏., Nozzle And Method Of Operation For A Plasma Arc torch (1992).

[8] H‏. Syazwani1, G‏. Mebrahitom, A‏. Azmir, A Review On Nozzle Wear In Abrasive Water Jet Machining Application, IOP Conf. Series Mater. Sci. Eng. 114 (2016).

DOI: 10.1088/1757-899x/114/1/012020

[9] Ashley Grant Doolette, Wishart, All Of Australia; Nicholas A‏.Sanders, Norwich, Vt‏.; Richard W‏.Couch, Jr‏.. Hanover, N‏.H‏.,‏ Maciej Wlodzimierz Rogozinski‏.Bulleen; Subramania Ramakrishnan, Balwyn North, Detecting Non‏-Symmetrical Nozzle Wear in a plasma arc Torch, patent (1998).

[10] P.‏ Pitayachaval, M‏. Sato, Investigating Parameters That Effect to Wear of Plasma Nozzle, The 6th Asia Conf. Mech. Mater. Eng. (2018).
