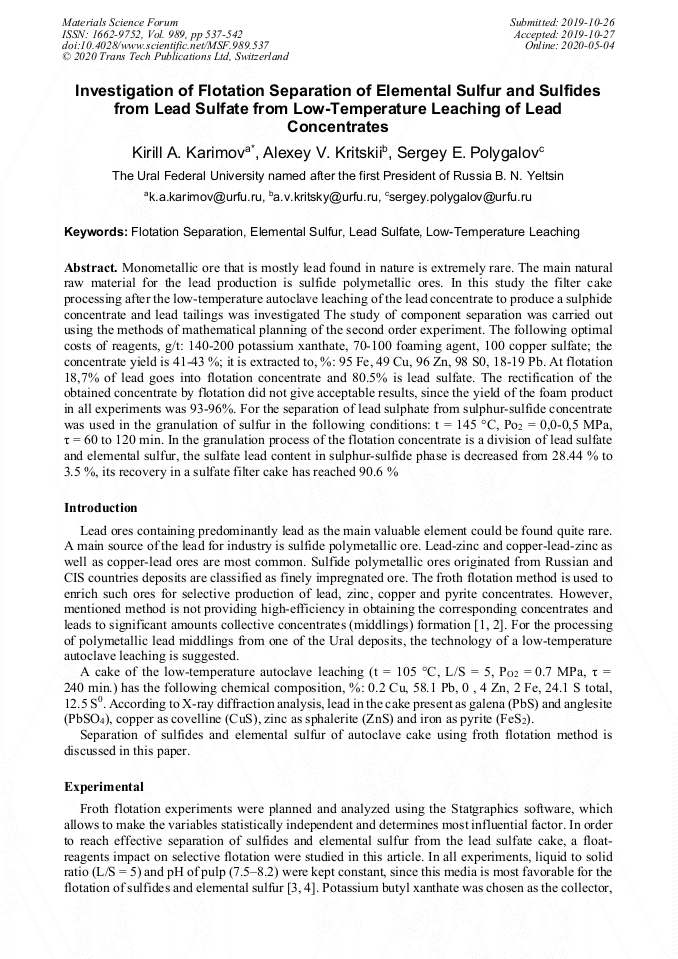

Investigation of Flotation Separation of Elemental Sulfur and Sulfides from Lead Sulfate from Low-Temperature Leaching of Lead Concentrates

Abstract:

Monometallic ore that is mostly lead found in nature is extremely rare. The main natural raw material for the lead production is sulfide polymetallic ores. In this study the filter cake processing after the low-temperature autoclave leaching of the lead concentrate to produce a sulphide concentrate and lead tailings was investigated The study of component separation was carried out using the methods of mathematical planning of the second order experiment. The following optimal costs of reagents, g/t: 140-200 potassium xanthate, 70-100 foaming agent, 100 copper sulfate; the concentrate yield is 41-43 %; it is extracted to, %: 95 Fe, 49 Cu, 96 Zn, 98 S0, 18-19 Pb. At flotation 18,7% of lead goes into flotation concentrate and 80.5% is lead sulfate. The rectification of the obtained concentrate by flotation did not give acceptable results, since the yield of the foam product in all experiments was 93-96%. For the separation of lead sulphate from sulphur-sulfide concentrate was used in the granulation of sulfur in the following conditions: t = 145 °C, Po₂ = 0,0-0,5 MPa, τ = 60 to 120 min. In the granulation process of the flotation concentrate is a division of lead sulfate and elemental sulfur, the sulfate lead content in sulphur-sulfide phase is decreased from 28.44 % to 3.5 %, its recovery in a sulfate filter cake has reached 90.6 %

• Periodical: Materials Science Forum (Volume 989)
• Pages: 537-542
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.989.537
• Online since: May 2020
• Authors: Kirill A. Karimov*, Aleksei V. Kritskii, S.E. Polygalov
• Keywords: Elemental Sulfur, Flotation Separation, Lead Sulfate, Low-Temperature Leaching

References

[1] A.A. Abramov, Flotacionnye metody obogashcheniya, Moscow, (1993).

[2] V.I. Klassen, V.A. Mokrousov, Vvedenie v teoriyu flotacii, Moscow, (1993).

[3] B.Е. Goryachev, N. Linoo, A.A. Nikolaev, Peculiarities of flotation of pyrite of one of copper-zinc deposits of ural region by potassium butyl xanthate and sodum dithiophosphate, Tsvetnye Metally, 6 (2014) 16 – 22.

[4] V.Y. Badenikov, A.V. Badenikov, Vliyanie reagentov na flotiruemost' okislennyh mineralov svinca, Covremennye tekhnologii i nauchno-tekhnicheskij progress, 1 (2004) 6-7.

[5] O.S. Bogdanov, I.I. Maksimov, A.K. Podnek, N.A .YAnis, Teoriya i tekhnologiya flotacii rud, Moscow, (1980).

[6] V.A. Bocharov , V.A. Ignatkina, Tekhnologiya obogashcheniya poleznyh iskopaemyh, Moscow, (2007).

[7] B.E. Goryachev, Zay.Ya Kyaw, A.A. Nikolaev, Yu.N. Polyakova. Peculiarities of sphalerite flotation by butyl potassium xanthate and sodium dithiophosphate in lime medium, Tsvetnye Metally, 11 (2015) 14-19.

DOI: 10.17580/tsm.2015.11.02

[8] A.M. Goden, Flotaciya, Moscow, (1959).

[9] YU.YU Lur'e, Spravochnik po analiticheskoj himii, Moscow, (1989).

[10] S.I. Mitrofanov, Selektivnaya flotaciya, Moscow, (1967).

[11] R.L. Gabdulhaev , V.A. Mal'cev, I.I. Ruchkin, K.A. Plekhanov, K.Е. Starkov, M.G. Vidueckij, Patent, 2294244 (2007).

[12] I.N .Plaksin, V.A. Glembockij, A.M .Okolovich, Issledovanie vozmozhnosti intensifikacii flotacionnogo processa primeneniem sochetaniya reagentov-sobiratelej, Trudy Instituta Gornogo dela, 1 (1954).

[13] V.S. Strizhko, B.Е. Goryachev, S.M. Ulasyuk, Osnovnye kineticheskie parametry processa elektrohimicheskogo okisleniya pirita v shchelochnyh rastvorah, Povyshenie polnoty i kompleksnosti izvlecheniya cennyh komponentov pri pererabotke mineral'nogo syr'ya, (1986).

[14] M.C. Fuerstenau, S.A. Olivas, R. Herrera-Urbina, K.N. Han, The surface characteristics and flotation behavior of anglesite and cerussite, International Journal of Mineral Processing, 20 (1987) 73-85.

DOI: 10.1016/0301-7516(87)90018-4

[15] A.A. Abramov Tekhnologiya obogashcheniya rud cvetnyh metallov, Moscow, (1983).

[16] B.Е. Goryachev, Lin. U. Naing, A.A. Nikolaev, Issledovanie vliyaniya kationov medi, cinka i zheleza i na flotaciyu monomineral'nyh frakcij pirita flotacionnoj krupnosti sul'fgidril'nymi sobiratelyami, Moscow, (2014).

[17] A.A. Abramov, S.B. Leonov, Himiya flotacionnyh reagentov, Moscow, (1982).
