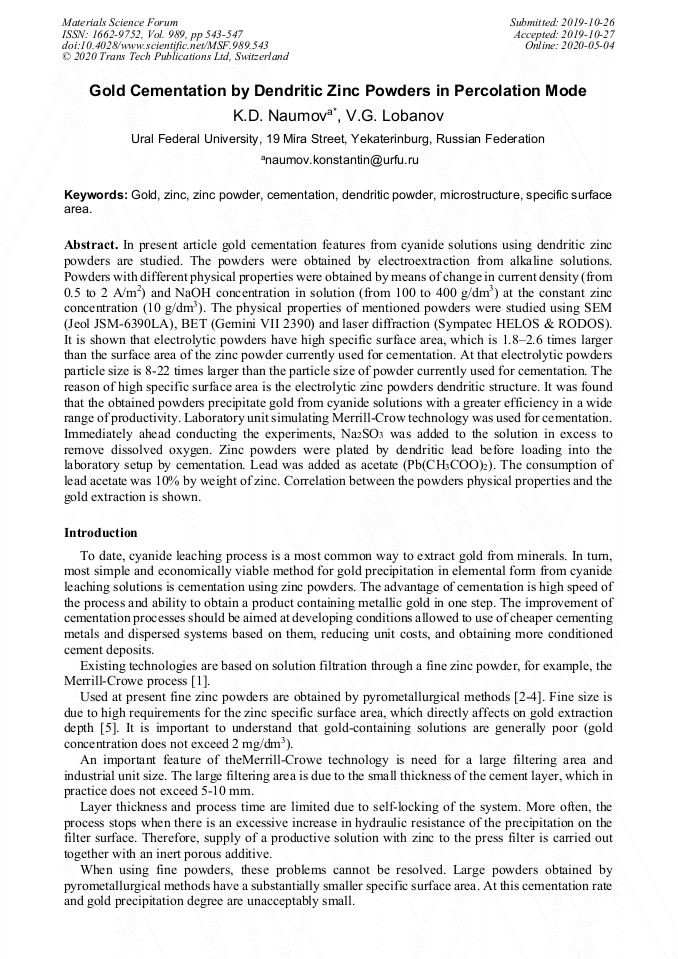

Gold Cementation by Dendritic Zinc Powders in Percolation Mode

Abstract:

In present article gold cementation features from cyanide solutions using dendritic zinc powders are studied. The powders were obtained by electroextraction from alkaline solutions. Powders with different physical properties were obtained by means of change in current density (from 0.5 to 2 A/m²) and NaOH concentration in solution (from 100 to 400 g/dm³) at the constant zinc concentration (10 g/dm³). The physical properties of mentioned powders were studied using SEM (Jeol JSM-6390LA), BET (Gemini VII 2390) and laser diffraction (Sympatec HELOS & RODOS). It is shown that electrolytic powders have high specific surface area, which is 1.8–2.6 times larger than the surface area of ​​the zinc powder currently used for cementation. At that electrolytic powders particle size is 8-22 times larger than the particle size of powder currently used for cementation. The reason of high specific surface area is the electrolytic zinc powders dendritic structure. It was found that the obtained powders precipitate gold from cyanide solutions with a greater efficiency in a wide range of productivity. Laboratory unit simulating Merrill-Crow technology was used for cementation. Immediately ahead conducting the experiments, Na₂SO₃ was added to the solution in excess to remove dissolved oxygen. Zinc powders were plated by dendritic lead before loading into the laboratory setup by cementation. Lead was added as acetate (Pb (CH₃COO)₂). The consumption of lead acetate was 10% by weight of zinc. Correlation between the powders physical properties and the gold extraction is shown.

• Periodical: Materials Science Forum (Volume 989)
• Pages: 543-547
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.989.543
• Online since: May 2020
• Authors: Konstantin D. Naumov*, Vladimir G. Lobanov
• Keywords: Cementation, Dendritic Powder, Gold, Microstructure, Specific Surface Area, Zinc, Zinc Powder

References

[1] D. J. MacKinnon, T. R. Ingraham, Kinetics of gold cementation on zinc, Ottawa: Dep. of Energy, Mines and Resources, (1971).

[2] S.S. Naboychenko, Poroshki tsvetnykh metallov. Spravochnoye izd, Metallurgiya, Moscow, (1997).

[3] B. N. Babich, Ye. V. Vershinina, V. A. Glebov, Metallicheskiye poroshki i poroshkovyye materialy: spravochnik, EKOMET, Moscow, (2005).

[4] D.I. Ryzhonkov, V. V. Levina, E. L. Dzidziguri, Ul'tradispersnyye sistemy: polucheniye, svoystva, primeneniye, Uchoba, Moscow, (2003).

[5] M. I. Alkatsy, Protsessy tsementatsii v tsvetnoy metallurgii, Metallurgiya, Moscow, (1981).

[6] J. St-Pierre, D. L. Piron, Electrowinning of zinc from alkaline solutions at high current densities, Journal of Applied Electrochemistry. 20 (1990) 163-165.

DOI: 10.1007/bf01012487

[7] S. Gürmen, M. Emre, A laboratory-scale investigation of alkaline zinc electrowinning, Minerals Engineering. 16 (2003) 559-562.

DOI: 10.1016/s0892-6875(03)00081-5

[8] S.V. Mamyachenkov, S.A. Yakornov, O.S. Anisimova, P.A. Kozlov, D.A. Ivakin, Issledovaniye vliyaniya tekhnologicheskikh parametrov na effektivnost' elektroliza tsinka iz shchelochnykh rastvorov, Tsvetnaya metallurgiya. 6 (2018) 12-19.

[9] J. Jiang, X. Yang, YY. Zhao, Recovery of zinc from EAF dust by alkaline extraction, Advanced Materials Research. 113 (2010) 2299-2304.

DOI: 10.4028/www.scientific.net/amr.113-116.2299

[10] Z. Youcai, R. Stanford, Integrated hydrometallurgical process for production of zinc from electric arc furnace dust in alkaline medium, Journal of Hazardous Materials. 80 (2000) 223-240.

DOI: 10.1016/s0304-3894(00)00305-8

[11] Z. Youcai, L. Qiang, Z. Chenglong, J. Jiachao, Production of ultrafine zinc powder from wastes containing zinc by electrowinning in alkaline solution, Brazilian Journal of Chemical Engineering. 30 (2013) 857-864.

DOI: 10.1590/s0104-66322013000400017

[12] J. C. Jiang, C. L. Zhang, Y. C. Zhao, An experimental investigation of alkaline zinc electrowinning using magnesium alloy as cathode, Advanced Materials Research. 113 (2010) 2208-2211.

DOI: 10.4028/www.scientific.net/amr.113-116.2208

[13] M. S. Chandrasekar, S. Srinivasan, M. Pushpavanam, Structural and textural study of electrodeposited zinc from alkaline non-cyanide electrolyte, Journal of Materials Science. 45 (2009) 1160-1169.

DOI: 10.1007/s10853-009-4045-z

[14] A.H. Abbar, S.A. Rushdi, H.M. Al-Tameemi, Electrochemical Preparation of Ultrafine Zinc Powder, International Journal of Electrochemical Science. 12 (2017) 7075-7088.

DOI: 10.20964/2017.08.35

[15] M. S. Pereira, L. L. Barbosa, C. A. C. Souza, A. C. M. de Moraes, I. A. Carlos, The influence of sorbitol on zinc film deposition, zinc dissolution process and morphology of deposits obtained from alkaline bath, Journal of Applied Electrochemistry. 36 (2006) 727-732.

DOI: 10.1007/s10800-006-9133-z

[16] J. Jiachao, M. Jianli, S. Xiaofu, T. Yuan, L. Ping1, Z. Youcai, Particle Size Refinement of Zn Electrodeposits in Alkaline Zincate Solutions with Polyethylene Glycol and Tween 80, Int. J. Electrochem. Sci. 12 (2017) 917-927.

DOI: 10.20964/2017.02.44

[17] M. F. Carvalho, E. P. Barbano, I. A. Carlos, Influence of Disodium Ethylenediaminetetraacetate on Zinc Electrodeposition Process and on the Morphology, Chemical Composition and Structure of the Electrodeposits, Electrochimica Acta. 109 (2013) 798-808.

DOI: 10.1016/j.electacta.2013.07.149

[18] Q. Li, Y. Zhao, C. Zhang, Influence of Cetyltrimethylammonium Bromide and Sodium Lauryl Sulfate on Production of Zinc Powders by Alkaline Electrowinning, Russian Journal of Non-Ferrous Metals. 55 (2014) 65-72.

DOI: 10.3103/s1067821214010131

[19] J. L. Ortiz-Aparicio, Y. Meas, G. T. Ortega, T. W. Chapman, E. Chainet, Effects of organic additives on zinc electrodeposition from alkaline electrolytes, Journal of Applied Electrochemistry. 43 (2013) 289-300.

DOI: 10.1007/s10800-012-0518-x

[20] Qiang Li, Youcai Zhao, Jiachao Jiang, Chenglong Zhang, Optimized hydrometallurgical route to produce ultrafine zinc powder from industrial wastes in alkaline medium, Procedia Environmental Sciences. 16 (2012) 674-682.

DOI: 10.1016/j.proenv.2012.10.093

[21] S. Gürmen, M. Emre, A laboratory-scale investigation of alkaline zinc electrowinning, Minerals Engineering. 16 (2003) 559-562.

DOI: 10.1016/s0892-6875(03)00081-5

[22] J. Jiang, C. Guo, Y. Zhao, Production of Zinc Powder by Alkaline Hydrometallurgy, Applied Mechanics and Materials. 20 (2010) 1142-1146.

DOI: 10.4028/www.scientific.net/amm.26-28.1142
