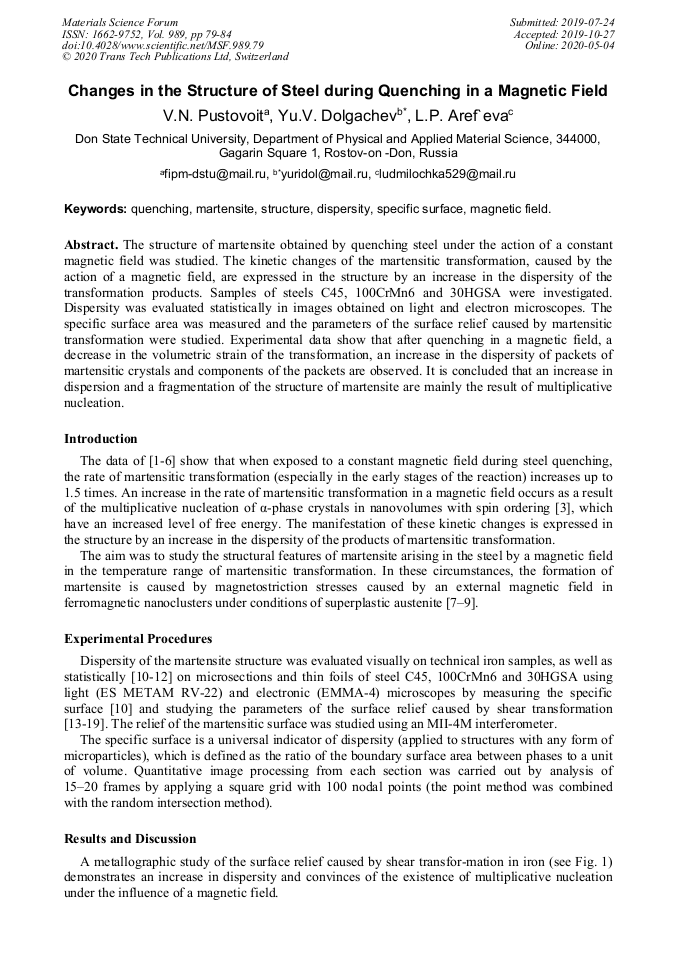

Changes in the Structure of Steel during Quenching in a Magnetic Field

Abstract:

The structure of martensite obtained by quenching steel under the action of a constant magnetic field was studied. The kinetic changes of the martensitic transformation, caused by the action of a magnetic field, are expressed in the structure by an increase in the dispersity of the transformation products. Samples of steels C45, 100CrMn6 and 30HGSA were investigated. Dispersity was evaluated statistically in images obtained on light and electron microscopes. The specific surface area was measured and the parameters of the surface relief caused by martensitic transformation were studied. Experimental data show that after quenching in a magnetic field, a decrease in the volumetric strain of the transformation, an increase in the dispersity of packets of martensitic crystals and components of the packets are observed. It is concluded that an increase in dispersion and a fragmentation of the structure of martensite are mainly the result of multiplicative nucleation.

• Periodical: Materials Science Forum (Volume 989)
• Pages: 79-84
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.989.79
• Online since: May 2020
• Authors: Viktor N. Pustovoit, Yuri V. Dolgachev*, L.P. Aref'eva
• Keywords: Dispersity, Magnetic Field, Martensite, Quenching, Specific Surface, Structure

References

[1] V.M. Schastlivtsev, Y.V. Kaletina, E.A. Fokina, D.A. Mirzaev, Effect of external actions and a magnetic field on martensitic transformation in steels and alloys, Met. Sci. Heat Treat. 58 (2016) 247-253.

DOI: 10.1007/s11041-016-9997-4

[2] V.D. Sadovskii, P.A. Malinen, L.A. Mel'nikov, Influence of high pressure and a pulsed magnetic field on the martensite transformation in Fe− Ni and Fe− Ni− Mn alloys, Met. Sci. Heat Treat. 14 (1972) 775-781.

DOI: 10.1007/bf00652029

[3] V.N. Pustovoit, Y.V. Dolgachev, Ferromagnetically ordered clusters in austenite as the areas of martensite formation, Emerg. Mater. Research 6 (2017) 249-253.

DOI: 10.1680/jemmr.17.00042

[4] V.N. Pustovoit, Y.V. Dolgachev, L.P. Aref'eva, Features of Martensitic Transformation in Steel during Quenching in a Constant Magnetic Field, Mater. Sci. Forum 946 (2019) 304-308.

DOI: 10.4028/www.scientific.net/msf.946.304

[5] Yu.V. Kaletina, Phase transformations in steels and alloys in magnetic field, Met. Sci. Heat Treat. 50 (2008) 413-421.

DOI: 10.1007/s11041-009-9085-0

[6] V.D. Sadovskii, Magnetic field and phase transformations in steel, Met. Sci. Heat Treat. 7 (1966) 441-443.

DOI: 10.1007/bf00650723

[7] V.N. Pustovoit, Y.V. Dolgachev, Special features of the structure of martensite formed by hardening of steel in magnetic field in the temperature range of superplasticity of austenite, Met. Sci. Heat Treat. 53 (2012) 515-519.

DOI: 10.1007/s11041-012-9427-1

[8] V.N. Pustovoit, Y.V. Dolgachev, Y.M. Dombrovskii, Use of the Superplasticity Phenomenon of Steel for Internal, Magnetic Correcting a Product, Solid State Phenom. 265 (2017) 745-749.

DOI: 10.4028/www.scientific.net/ssp.265.745

[9] V.N. Pustovoit, Y.V. Dolgachev, Distortion-Free Heat Treatment of Thin Rods in Magnetic Field, Mater. Perform. and Character. 8 (2018) 320-324.

DOI: 10.1520/mpc20170159

[10] G.E. Pellissier, Stereology and Quantitative Metallography, ASTM International, (1972).

[11] J.C. Russ, R.T. Dehoff, Practical Stereology, Springer, Boston, MA, (2000).

[12] V. Howard, M. Reed, Unbiased Stereology: Three-Dimensional Measurement in Microscopy, Garland Science, (2004).

[13] V.A. Lobodyuk, E.I. Estrin, Martensitic Transformations, Cambridge International Science Publishing, (2014).

[14] Shear Transformation Zone (STZ), in: Q.J. Wang, Y.W. Chung (eds), Encyclopedia of Tribology, Springer, Boston, MA, (2013).

[15] V.N. Pustovoit, Y.M. Dombrovskii, Y.V. Dolgachev, Y.A. Kornilov On shear nucleation sites at phase transformations in steel, Izv. Vyssh. Ucheb. Zaved. Chern. Metallurg. 61 (2018) 114-119.

DOI: 10.17073/0368-0797-2018-2-114-119

[16] V.N. Pustovoit, Y.M. Dombrovskii, Y.V. Dolgachev, Structural Identification of the Phenomenon of White Zone,, Met. Sci. Heat Treat. 59 (2017) 3-7.

DOI: 10.1007/s11041-017-0092-2

[17] G.B. Olson, W.S. Owen, Martensite: a tribute to Morris Cohen, ASM International, (1992).

[18] V.N. Pustovoit, V.V. Duka, Y.V. Dolgachev, L.P. Aref'eva, V.V. Fedosov, V.M. Salynskih Features of destruction of a ferrite-martensitic composite, MATEC Web Conf. 226 (2018) 03006.

DOI: 10.1051/matecconf/201822603006

[19] Z. Nishiyama, Martensitic Transformation, Elsevier, (2012).

[20] M.A. Shtremel', Yu.G. Andreev, D.A. Kozlov, Structure and strength of lath martensite, Met. Sci. Heat Treat. 41 (1999) 140–145.

DOI: 10.1007/bf02465797

[21] E. Pereloma, D.V. Edmonds, Phase Transformations in Steels: Diffusionless Transformations, High Strength Steels, Modelling and Advanced Analytical Techniques, Elsevier, (2012).

DOI: 10.1533/9780857096104
