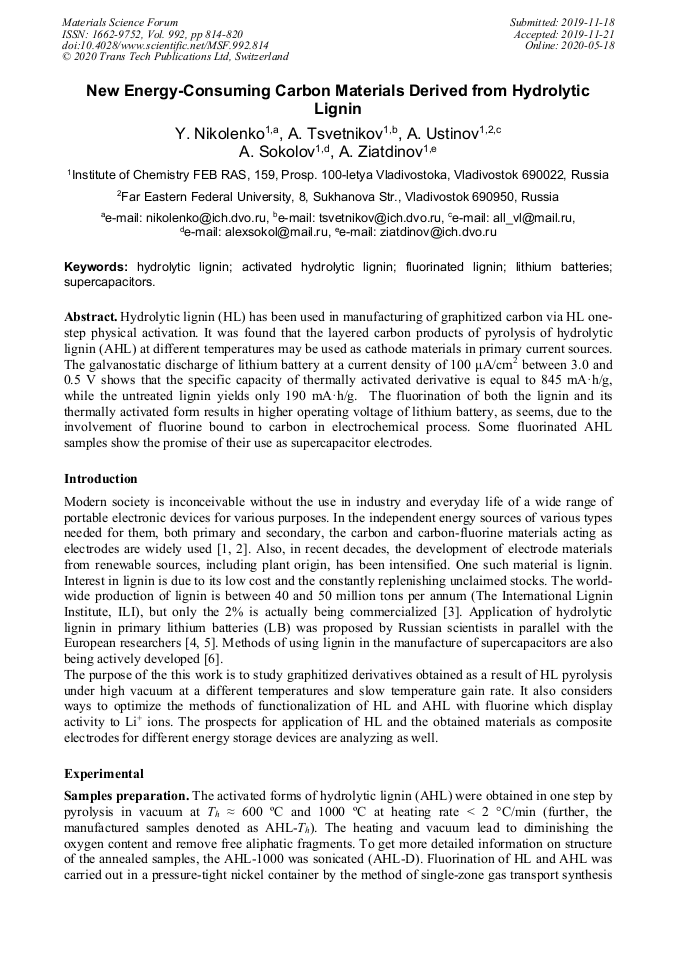

New Energy-Consuming Carbon Materials Derived from Hydrolytic Lignin

Abstract:

Hydrolytic lignin (HL) has been used in manufacturing of graphitized carbon via HL one-step physical activation. It was found that the layered carbon products of pyrolysis of hydrolytic lignin (AHL) at different temperatures may be used as cathode materials in primary current sources. The galvanostatic discharge of lithium battery at a current density of 100 μA/cm² between 3.0 and 0.5 V shows that the specific capacity of thermally activated derivative is equal to 845 mA·h/g, while the untreated lignin yields only 190 mA·h/g. The fluorination of both the lignin and its thermally activated form results in higher operating voltage of lithium battery, as seems, due to the involvement of fluorine bound to carbon in electrochemical process. Some fluorinated AHL samples show the promise of their use as supercapacitor electrodes.

• Periodical: Materials Science Forum (Volume 992)
• Pages: 814-820
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.992.814
• Online since: May 2020
• Authors: Yury M. Nikolenko*, Alexander K. Tsvetnikov, Alexander Yu. Ustinov, A. Sokolov, Albert M. Ziatdinov
• Keywords: Activated Hydrolytic Lignin, Fluorinated Lignin, Hydrolytic Lignin, Lithium Batteries, Supercapacitors

References

[1] D. Linden, T.B. Reddy, Handbook of batteries, third ed., McGraw-hill, New York, (2002).

[2] T. Nakajima, Fluorine-carbon and fluoride-carbon materials: Chemistry, physics, and applications, CRC Press, Boca Raton, Florida, (1994).

[3] J.M. Rosas, R. Bereruer, M.J. Valero-Romero, J. Rodrigues-Mirasol, T. Condero, Preparation of different carbon materials by thermochemical of lignin, Frontiers in materials | Carbon-Based Materials, 1 (2014) 1-17. Information on www.frontiersin.org.

DOI: 10.3389/fmats.2014.00029

[4] S.V. Gnedenkov, D.P. Opra, S.L. Sinebryukhov, A.K. Tsvetnikov, A.Y. Ustinov, V.I. Sergienko, Hydrolysis lignin: electrochemical properties of the organic cathode material for primary lithium battery, J. Ind. Eng. Chem., 20 (2014) 903-910.

DOI: 10.1016/j.jiec.2013.06.021

[5] G. Milczarek, O. Inganäs, Renewable cathode materials from biopolymer/conjugated polymer interpenetrating networks, Science, 335 (2012) 1468-1471.

DOI: 10.1126/science.1215159

[6] X. Ma, P. Kolla, Y. Zhao, A.L. Smirnova, H. Fong, Electrospun lignin-derived carbon nanofiber mats surface-decorated with MnO2 nanowh[skers as binder-free supercapacitor electrodes with h[gh performance, J. Power Sources, 325 (2016) 541-548.

DOI: 10.1016/j.jpowsour.2016.06.073

[7] S.V. Gnedenkov, D.P. Opra, L.А. Zemnukhova, S.L. Sinebryukhov, I.A. Kedrinskii, O.V. Patrusheva, V.I. Sergienko, Electrochemical performance of Klason lignin as a cathode-active material for lithium battery, J. Energ. Chem, 24 (2015) 346-352.

DOI: 10.1016/s2095-4956(15)60321-7

[8] M.S. Dresselhaus, G. Dresselhaus , In: M. Cardona, G. Güntherodt (Eds.), Light Scattering in Solids, Vol. III, Springer, Berlin, 1982, pp.3-58.

[9] S.-K. Sze, N. Siddique, J.J. Sloan, R. Escribano, Raman spectroscopic characterization of carbonaceous aerosols, Atmos. Environ., 35 (2001) 561-568.

DOI: 10.1016/s1352-2310(00)00325-3

[10] T. Jawhari, A. Roid, J. Casado, Raman spectroscopic characterization of some commercially available carbon black materials, Carbon, 33 (1995) 1561-1565.

DOI: 10.1016/0008-6223(95)00117-v

[11] A.C. Ferrari and J. Robertson, Interpretation of Raman spectra of disordered and amorphous carbon, Phys. Rev. B, 61 (2000) 14095-14107.

DOI: 10.1103/physrevb.61.14095

[12] B. Dippel, H. Jander, J. Heintzenberg, NIR FT Raman spectroscopic study of flame soot, Phys. Chem. Chem. Phys., 1 (1999) 4707-4712.

DOI: 10.1039/a904529e

[13] F. Tuinstra, J.L. Koenig, Raman Spectrum of Graphite, J. Phys. Chem., 53 (1970) 1126-1130.

[14] L.G. Cançado, K. Takai, T. Enoki, M. Endo, Y. A. Kim, H. Mizusaki, A. Jorio, L. N. Coelho, R. Magalhães-Paniago, M. A. Pimenta, General equation for the determination of the crystallite size La of nanographite by Raman spectroscopy, Applied Phys. Let., 88 (2006) 163106. Information on http://apl.aip.org/apl/copyright.jsp.

DOI: 10.1063/1.2196057

[15] Z. Klusek, W. Kozlowski, Z. Waqar, S. Datta, J.S. Burnell-Gray, I. V. Makarenko, N. R. Gall, E.V. Rutkov, A.Ya. Tontegode, A.N. Titkov, Local electronic edge states of graphene layer deposited on Ir(111) surface studied by STM/CITS, Appl. Surf. Sci., 252 (2005) 1221-1227.

DOI: 10.1016/j.apsusc.2005.02.083

[16] Y. Kobayashi, K. Fukui, T. Enoki, K. Kusakabe, Y. Kaburagi, Observation of zigzag and armchair edges of graphite using scanning tunneling microscopy and spectroscopy, Phys. Rev B, 71 (2005) 193406 (1-4).

DOI: 10.1103/physrevb.71.193406

[17] W. Walker, S. Grugeon, O. Mentre, S. Laruelle, J.-M. Tarascon, F. Wudl, Ethoxycarbonyl-based organic electrode for Li-batteries, J. American Chem. Soc, 132 (2010) 6517-6523.

DOI: 10.1021/ja1012849

[18] E.J. Yoo, J. Kim, E. Hosono, H. Zhou, T. Kudo, I. Honma, Reversible Li Storage of Graphene Nanosheet Families for Use in Rechargeable Lithium Ion Batteries, Nano Letters, 8 (2008), 2277-2282.

DOI: 10.1021/nl800957b

[19] L.Zhao, W. Wang, A. Wang, K. Yuan, S. Chen, Y. Yang, A novel polyquinone cathode material for rechargeable lithium batteries, J. Power Sources, 233 (2013) 23-27.

DOI: 10.1016/j.jpowsour.2013.01.103

[20] W.A. Schalkwijk, B. Scrosati, Advances in lithium-ion batteries, Springer science+busines media, Berlin, (2002).

[21] B. Scrosati, J. Garche, Lithium Batteries: Status, Prospects and Future, J. of Power Sources, 195 (2010) 2419-2430.

DOI: 10.1016/j.jpowsour.2009.11.048

[22] K.E. Aifantis, S.A. Hackney, R.V. Kumar, High energy density lithium batteries: Materials, engineering, applications, Wiley‐VCH Verlag GmbH & Co. KGaA, Weinheim, (2009).
