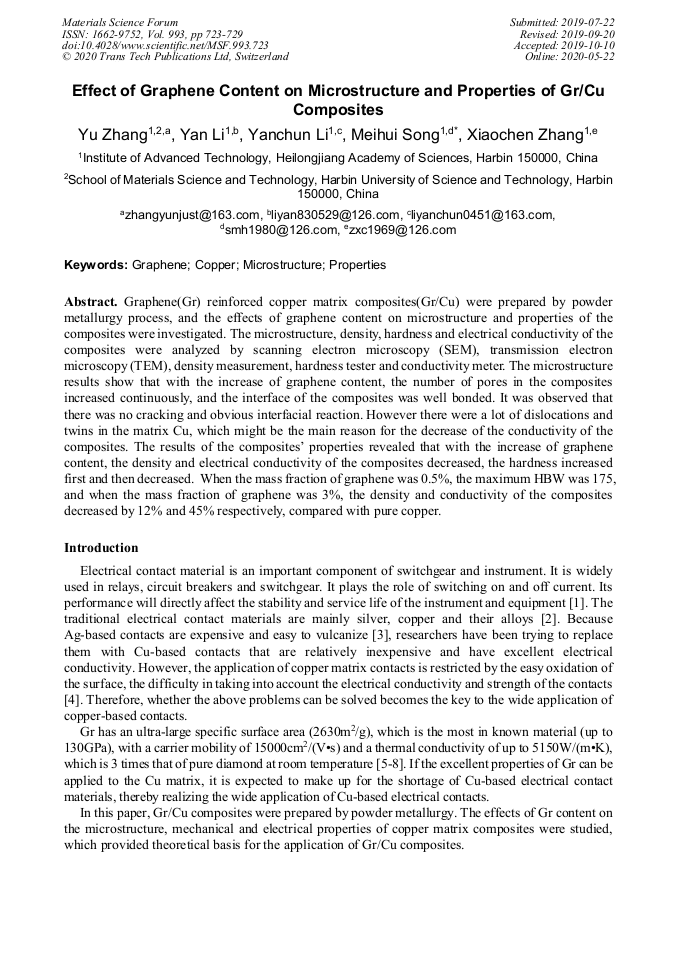

Effect of Graphene Content on Microstructure and Properties of Gr/Cu Composites

Abstract:

Graphene(Gr) reinforced copper matrix composites(Gr/Cu) were prepared by powder metallurgy process, and the effects of graphene content on microstructure and properties of the composites were investigated. The microstructure, density, hardness and electrical conductivity of the composites were analyzed by scanning electron microscopy (SEM), transmission electron microscopy (TEM), density measurement, hardness tester and conductivity meter. The microstructure results show that with the increase of graphene content, the number of pores in the composites increased continuously, and the interface of the composites was well bonded. It was observed that there was no cracking and obvious interfacial reaction. However there were a lot of dislocations and twins in the matrix Cu, which might be the main reason for the decrease of the conductivity of the composites. The results of the composites’ properties revealed that with the increase of graphene content, the density and electrical conductivity of the composites decreased, the hardness increased first and then decreased. When the mass fraction of graphene was 0.5%, the maximum HBW was 175, and when the mass fraction of graphene was 3%, the density and conductivity of the composites decreased by 12% and 45% respectively, compared with pure copper.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 723-729
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.723
• Online since: May 2020
• Authors: Yu Zhang, Yan Li, Yan Chun Li, Mei Hui Song*, Xiao Chen Zhang
• Keywords: Copper, Graphene, Microstructure, Properties

References

[1] M. Grandin, U. Wiklund, Influence of mechanical and electrical load on a copper/copper-graphite sliding electrical contact, Tribology International. 121 (2018) 1-9.

DOI: 10.1016/j.triboint.2018.01.004

[2] J. K. Pradeep, Effect of temperature distribution in ultrasonically welded joints of copper wire and sheet used for electrical contacts, Materials. 11 (2018) 1010.

DOI: 10.3390/ma11061010

[3] H. Wang, Z. Tao, X. Li, Y. Xi, Z. Liu, Q. Guo, Graphite fiber/copper composites prepared by spontaneous infiltration, Applied Surface Science. 439 (2018) 488-493.

DOI: 10.1016/j.apsusc.2018.01.035

[4] G. Xin, H. Yue, E. Guo, S. Zhang, L. Yao, X. Lin, X. Wang, E. Guan, Tribological properties of copper matrix composites reinforced with homogeneously dispersed graphene nanosheets, Journal of Materials Science & Technology. 34 (2018) 1925-1931.

DOI: 10.1016/j.jmst.2018.02.010

[5] K.S. Novoselov, V.I. Fal, L. Colombo, P. R. Gellert, M.G. Schwab, K. Kim, A roadmap for graphene, Nature. 490 (2012) 192-200.

DOI: 10.1038/nature11458

[6] K.S. Novoselov, A. K. Geim, S. V. Morozov, D. Jiang, Y. Zhang, S.V. Dubonos, I.V. Grigorieva, A.A. Firsov, Electric field effect in atomically thin carbon films, Science. 306 (2004) 666-669.

DOI: 10.1126/science.1102896

[7] J. Wang, X. Mu, M. Sun, The thermal, electrical and thermoelectric properties of graphene nanomaterials, Nanomaterials. 9 (2019) 218-246.

DOI: 10.3390/nano9020218

[8] Z. Fan, T. Chen, X. Chen, L. Xu, Preparation of graphene/copper composites using solutioncombusted porous sheet-like cuprous oxide, Journal of Materials Science. 54 (2018) 396-403.

DOI: 10.1007/s10853-018-2850-y

[9] D. Feng, C. Shi, Z. Liu, Introduction to materials science-an integrated approach, China Particuology. 1 (2003) 183-183.

DOI: 10.1016/s1672-2515(07)60139-0

[10] N. V. Ponraj, A. Azhagurajan, S. C. Vettivel, X. S. Shajand, P. Y. Nabhiraje, M. Sivapragashf, Graphene nanosheet as reinforcement agent in copper matrix composite by using powder metallurgy method, Surfaces & Interfaces. 6 (2017) 190-196.

DOI: 10.1016/j.surfin.2017.01.010

[11] Z. Y. Zhao, R. G. Guan, X. H. Guan, et al, Microstructures and properties of graphene-Cu/Al composite prepared by a novel process through clad forming and improving wettability with copper, Advanced Engineering Materials. 17 (2015) 663-668.

DOI: 10.1002/adem.201400173

[12] R. Mahmudi, Grain boundary strengthening in a fine grained aluminium alloy, Scripta Metallurgica Et Materialia. 5 (1995) 781–786.

DOI: 10.1016/0956-716x(95)91603-m

[13] T. V. Khai, G. N. Han, S. K. Dong, Significant enhancement of blue emission and electrical conductivity of N-doped graphene, Journal of Materials Chemistry. 22 (2012) 17992.

DOI: 10.1039/c2jm33194b
