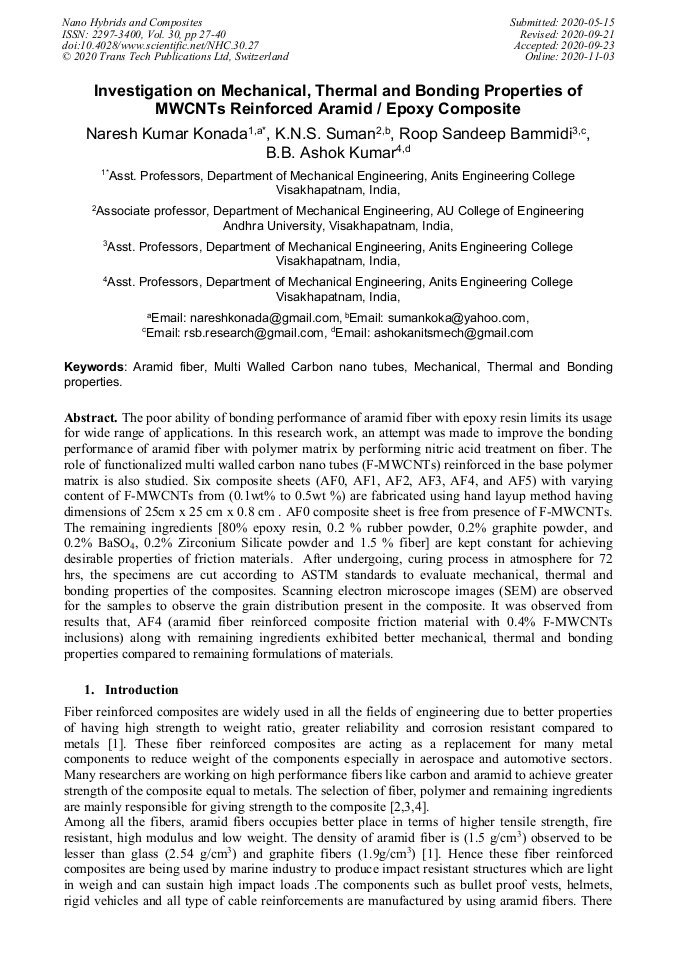

Investigation on Mechanical, Thermal and Bonding Properties of MWCNTs Reinforced Aramid/Epoxy Composite

Abstract:

The poor ability of bonding performance of aramid fiber with epoxy resin limits its usage for wide range of applications. In this research work, an attempt was made to improve the bonding performance of aramid fiber with polymer matrix by performing nitric acid treatment on fiber. The role of functionalized multi walled carbon nano tubes (F-MWCNTs) reinforced in the base polymer matrix is also studied. Six composite sheets (AF0, AF1, AF2, AF3, AF4, and AF5) with varying content of F-MWCNTs from (0.1wt% to 0.5wt %) are fabricated using hand layup method having dimensions of 25cm x 25 cm x 0.8 cm . AF0 composite sheet is free from presence of F-MWCNTs. The remaining ingredients [80% epoxy resin, 0.2 % rubber powder, 0.2% graphite powder, and 0.2% BaSO₄, 0.2% Zirconium Silicate powder and 1.5 % fiber] are kept constant for achieving desirable properties of friction materials. After undergoing, curing process in atmosphere for 72 hrs, the specimens are cut according to ASTM standards to evaluate mechanical, thermal and bonding properties of the composites. Scanning electron microscope images (SEM) are observed for the samples to observe the grain distribution present in the composite. It was observed from results that, AF4 (aramid fiber reinforced composite friction material with 0.4% F-MWCNTs inclusions ) along with remaining ingredients exhibited better mechanical ,thermal and bonding properties compared to remaining formulations of materials.

• Periodical: Nano Hybrids and Composites (Volume 30)
• Pages: 27-40
• DOI: https://doi.org/10.4028/www.scientific.net/NHC.30.27
• Online since: November 2020
• Authors: Naresh Kumar Konada*, K.N.S. Suman, Roopsandeep Bammidi, B.B.Ashok Kumar
• Keywords: Aramid Fiber, Mechanical, Thermal and Bonding Properties, Multi Walled Carbon Nano Tubes

References

[1] B.D. Agarwal et al Analysis and performance of fiber composites ,Wiley Publications, Third Edition , re print (2015).

[2] Naresh Kumar Konada, K.N.S. Suman Effect of surface treatments on damping behaviour of carbon fiber reinforced friction material, International Journal of Automotive Composites , Inderscience Publications , Vol4 , number 2 , 2019, pp.96-113.

DOI: 10.1504/ijautoc.2019.102246

[3] Naresh Kumar Konada, K.N.S. Suman Tribological behavior of Multi walled carbon nano tubes grafted carbon fiber reinforced friction material, Springer, Journal of Bio and Tribo Corrosion, volume 5, issue 3, June2019, pp.1-13.

DOI: 10.1007/s40735-019-0253-5

[4] Naresh Kumar Konada, K.N.S. Suman Experimental Investigation on Performance of Multi walled Carbon Nano Tubes Grafted Carbon Fiber Reinforced Friction Material, International Journal of advanced Science and technology , vol28, No 16 (2019) , pp.554-571.

DOI: 10.1007/s40735-019-0253-5

[5] O.A. Khondker, T. Fukui Fabrication and mechanical properties of aramid/nylon plain knitted composites, Elsevier Composites: Part A vol-35 (2004) PP 1195–1205.

DOI: 10.1016/j.compositesa.2004.03.004

[6] Ha Na Yu, Seong Su Kim et al. Optimum design of aramid-phenolic/glass-phenolic composite journal bearings, Elsevier Composites: Part A vol-40 (2009) PP 1186–1191.

DOI: 10.1016/j.compositesa.2009.05.001

[7] J.Parthenios, D.G. Katerelos Aramid Fibers; a multi functional sensor for monitoring stress/strain fields and damage development in composite materials,. Engineering Fracture Mechanics, Vol 69 (2002) pp.1067-1087.

DOI: 10.1016/s0013-7944(01)00123-0

[8] M.M. Moure, I Rubio "Analysis of impact energy absorption by lightweight aramid structures, Elsevier, Composite structures Volume 203 (2018) , pp.917-926.

DOI: 10.1016/j.compstruct.2018.06.092

[9] Xiangyu Xu, Boming Zhang "Characterization and analysis of thermal damages of aramid/epoxy composite laminates induced by the dielectric heating effect of microwaves Elsevier , Composite structures , Volume 200 (2018) , pp.371-379.

DOI: 10.1016/j.compstruct.2018.05.092

[10] Kazuto Tanaka, Kohji Minoshima, Takahiro Oya. Influences of stress waveform and wet environment on fatigue fracture behaviour of aramid single fibre, Elsevier Composites Science and Technology vol-64 (2004) PP 1531–1537.

DOI: 10.1016/j.compscitech.2003.11.004

[11] X Wang, B.Hu "Low velocity impact properties of 3D woven basalt / aramid hybrid composites. Elsevier, Science direct, Composites Science and Technology vol-68 (2008) PP 444-450.

DOI: 10.1016/j.compscitech.2007.06.016

[12] M.Goodarz, S.Hazir Bahrami Low velocity impact performance of nano fiber inter layered aramid epoxy composites ,Elsevier, Composited part B , Volume 173(2019) , p.106975.

DOI: 10.1016/j.compositesb.2019.106975

[13] Nannan Ni, Yuefang et al. Wen High damping and high stiffness CFRP composites with aramid non-woven fabric interlayers, Elsevier Composites Science and Technology vol- 117 (2015) PP 92-99.

DOI: 10.1016/j.compscitech.2015.06.002
