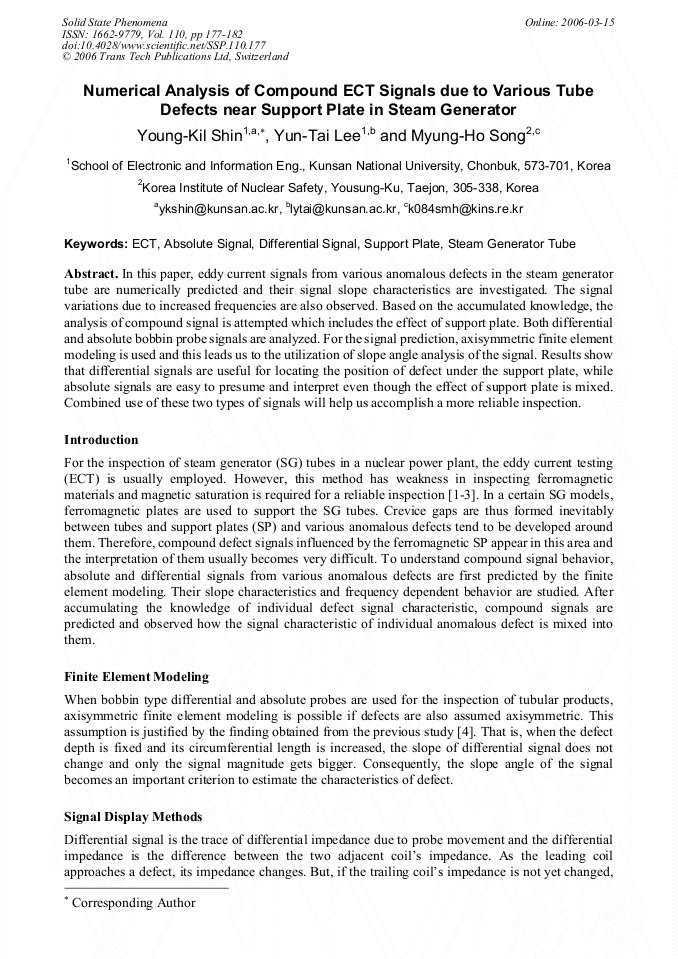

Numerical Analysis of Compound ECT Signals due to Various Tube Defects near Support Plate in Steam Generator

Abstract:

In this paper, eddy current signals from various anomalous defects in the steam generator tube are numerically predicted and their signal slope characteristics are investigated. The signal variations due to increased frequencies are also observed. Based on the accumulated knowledge, the analysis of compound signal is attempted which includes the effect of support plate. Both differential and absolute bobbin probe signals are analyzed. For the signal prediction, axisymmetric finite element modeling is used and this leads us to the utilization of slope angle analysis of the signal. Results show that differential signals are useful for locating the position of defect under the support plate, while absolute signals are easy to presume and interpret even though the effect of support plate is mixed. Combined use of these two types of signals will help us accomplish a more reliable inspection.

• Periodical: Solid State Phenomena (Volume 110)
• Pages: 177-182
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.110.177
• Online since: March 2006
• Authors: Young Kil Shin, Yun Tai Lee, Myung Ho Song
• Keywords: Absolute Signal, Differential Signal, ECT, Steam Generator Tube, Support Plate

References

[1] V.S. Cecco, G.V. Drunen and F.L. Sharp: Eddy Current Testing (GP courseware, U.S.A. 1987).

[2] D.J. Hagemaier: Fundamentals of Eddy Current Testing (ASNT, U.S.A. 1990).

[3] E.D. Harvey: Eddy Current Testing Theory and Practice (ASNT, U.S.A. 1995).

[4] H.B. Lee, S.Y. Won and Y.K. Shin: Journal of the KSNT Vol. 20 (2000), p.191.

[5] Y.K. Shin, Y.T. Lee, J.H. Lee and M.H. Song: Journal of the KSNT Vol. 24 (2004), p.315.

[6] ASME Code, Section V, Article 8, Appendix I (ASME, U.S.A. 1986).
